CRL Satin Anodized Aluminum Narrow Inset Glazed Door Vision Window

• Narrow inset frame vision window with surround sound for natural voice transmission

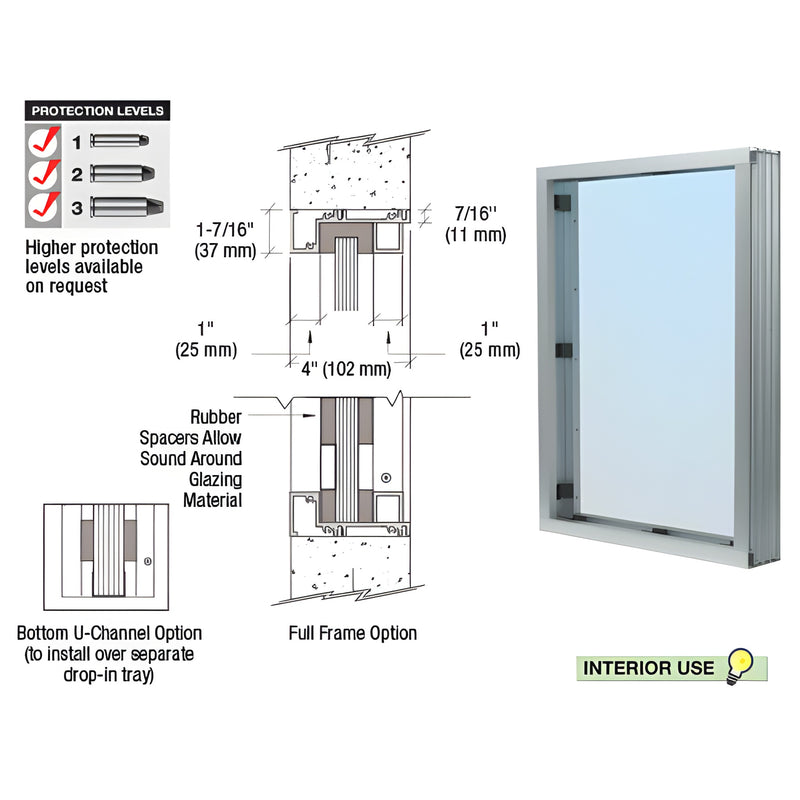

• Drawings and specifications available online (SKU: N1V1A)

CRL Narrow Inset Frame Vision Windows with surround sound provide natural voice transmission without a separate speak-thru device. Designed for interior walls 4" (102 mm) or thicker, these non-weathertight vision windows install above built-in exchange drawers or as sidelites in multi-lite exchange window units. The uniform four-sided frame requires removal of glazing and spacer blocks to secure to the wall. Option available with U-channel under glazing to enable access to drop-in deal trays. Ideal for interior transaction window, teller window, and customer-service applications where clear voice transmission and secure glazing are needed.

SPECIFICATIONS:
Materials: Glazing — 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1" (25 mm) Level 2 Lexgard®; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®
Finishes: Frame — Satin Anodized, Duranodic Bronze, RAL powder coat colors or custom KYNAR® paint colors
Instructions Included

Product Warning:

CRL recommends a maximum width of 36" (914 mm) when surround sound is used.

SKU: N1V1A — Learn more and download drawings/specifications online or contact CRL for a quote.
