CRL Satin Anodized D603/D601 Sliding Door Track Kit w/ Nylon Wheels

• D2301 Series
• With D650 Nylon Wheels
• Ideal for Commercial or Residential Applications
• Designed for Quick and Easy Installation
• Available in Up to Six Stock Finishes, Including New Brushed Nickel
• 12' (3.66 m) Length

CRL's 12' (3.66 m) Deluxe Rolling Track Assemblies (SKU D2301A) are heavy-duty rolling track assemblies for sliding glass doors, offering three upper track extrusion options to suit different design preferences. Engineered for frequent commercial and residential use, these rolling door tracks deliver smooth operation and long-term reliability. Key differentiators: D650 nylon wheels for quiet, low-friction performance; multiple factory finishes including new brushed nickel; and a user-friendly, trouble-free design popular with installers.

These assemblies accept dry glazing with 1/4" (6 mm) glass using Cat. No. GC728C vinyl (sold separately). A wide selection of CRL ratchet and plunger type locks is available to secure sliding doors.

NOTE: Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

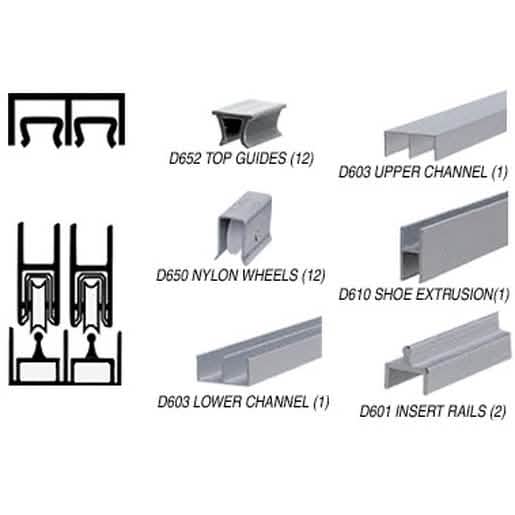

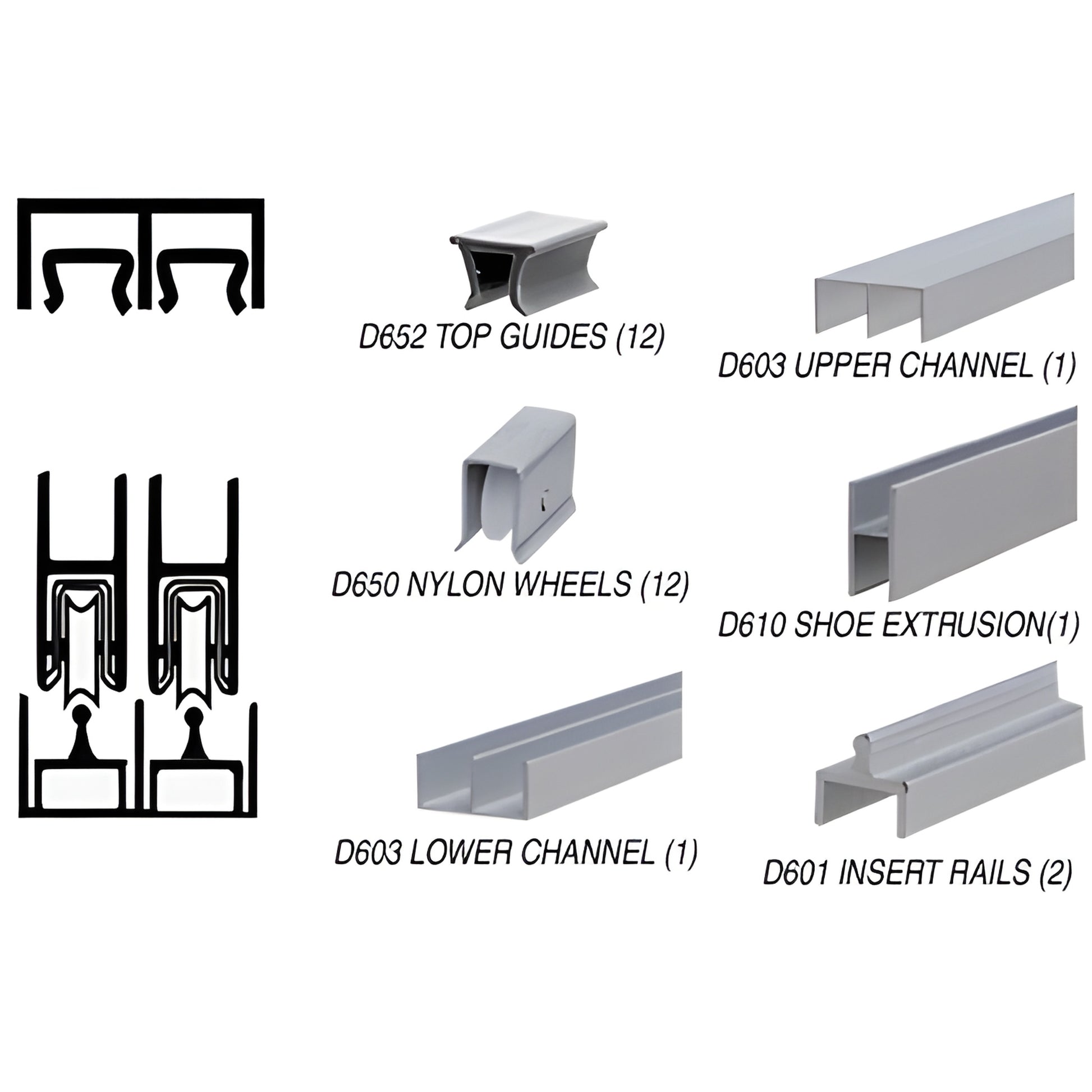

Components for D2301A

• D601 (x2)
• D603 (x2)
• D610 (x1)
• D650 (x12)
• D652 (x12)
• D9650 (x1)

Product Warning:

• Stock lengths must ship common carrier unless specifically cut for UPS shipment.
• For a very tight fit, verify your own dimensions; shown dimensions are guideline dimensions satisfactory to most installers.

Glass height guidelines for rolling track assemblies:

D2200 Series: Glass Height = Opening Minus 1-5/16"

D2203 Series: Glass Height = Opening Minus 1-1/8"

D2204 Series: Glass Height = Opening Minus 1-1/8"

D2300 Series: Glass Height = Opening Minus 1-3/8"

D2301 Series: Glass Height = Opening Minus 1-3/8"

D2303 Series: Glass Height = Opening Minus
