CRL D603/D601 Satin Anodized Deluxe Track Kit w/ Steel Ball Bearings

• Includes D649 ball bearing wheels for smooth operation
• Ideal for commercial and residential sliding glass door applications
• Quick, easy installation—designed for high-frequency use
• Available in up to six stock finishes, including Brushed Nickel
• 12' (3.66 m) length

CRL's 12' (3.66 m) Deluxe Rolling Track Assemblies (SKU D2301ABB) offer three upper track extrusion options to match your design and performance needs. Engineered for years of reliable service in heavy-use commercial sliding door and residential sliding glass door applications, this rolling track assembly is user-friendly and virtually trouble-free. Key differentiators include precision D649 ball bearing wheels, multiple finish choices, and compatibility with CRL ratchet and plunger locks for secure sliding doors.

For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C vinyl (sold separately).

NOTE: Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

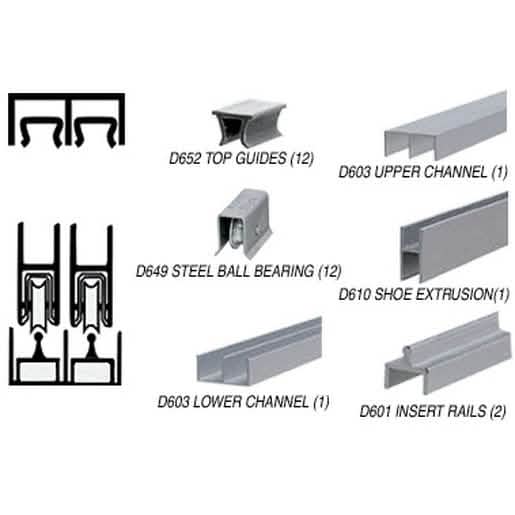

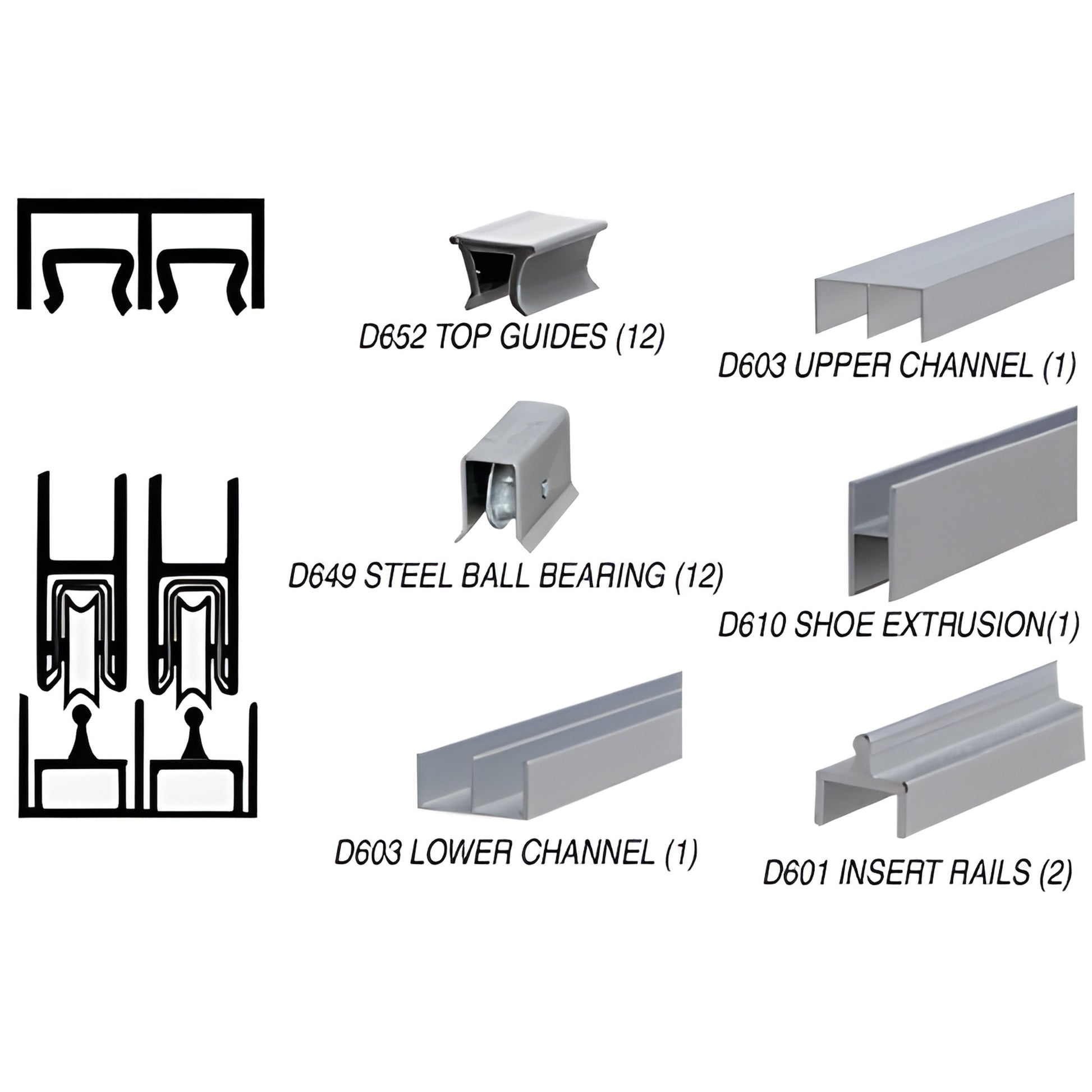

Components for D2301ABB

• D601 (x2)
• D603 (x2)
• D610 (x1)
• D649 (x12)
• D652 (x12)
• D9650 (x1)

Product Warning:

• Stock lengths must ship common carrier unless specifically cut for UPS shipment.
• If a very tight fit is required, measure and calculate final dimensions yourself. Listed dimensions are guideline dimensions satisfactory to most installers.

Glass height guidance for D-Series rolling track assemblies (opening minus):

• D2200 Series: 1-5/16"
• D2203 Series: 1-1/8"
• D2204 Series: 1-1/8"
• D2300 Series: 1-3/8"
• D2301 Series: 1-3/8"
• D2303 Series: 1-3/8"
• D2305 Series: 1-3/8"
• D2306 Series: 1-5/8"
• D2307 Series: 1-5/8"

Order the D2301ABB 12' deluxe rolling track assembly for sliding glass doors today to
