CRL Satin Anodized Deluxe Sliding Door Track D609/D603 Nylon Wheels

• D2300 Series
• With D650 Nylon Wheels
• Ideal for Commercial or Residential Applications
• Designed for Quick and Easy Installation
• Available in Up to Six Stock Finishes, Including New Brushed Nickel
• 12' (3.66 m) Length

CRL's 12' (3.66 m) Deluxe Rolling Track Assembly (SKU D2300A) is a heavy-duty, low-friction sliding door track ideal for commercial sliding door hardware and residential applications. Choose from three upper track extrusion options to match your design. Built for frequent use, this rolling track assembly features smooth D650 nylon wheels for years of reliable, trouble-free operation and multiple finish options including brushed nickel.

Locks and accessories: CRL offers ratchet and plunger-type locks to secure sliding doors. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C vinyl (sold separately).

NOTE: Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

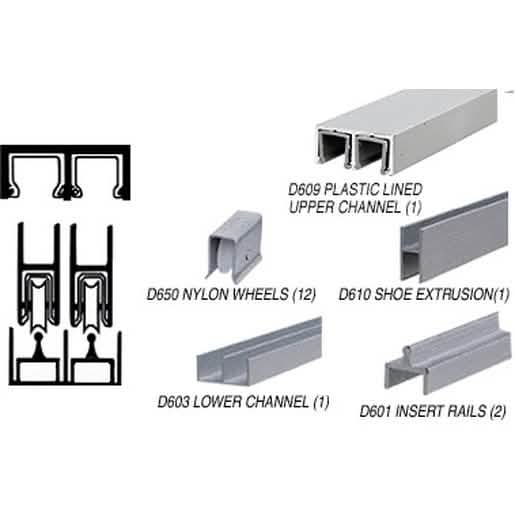

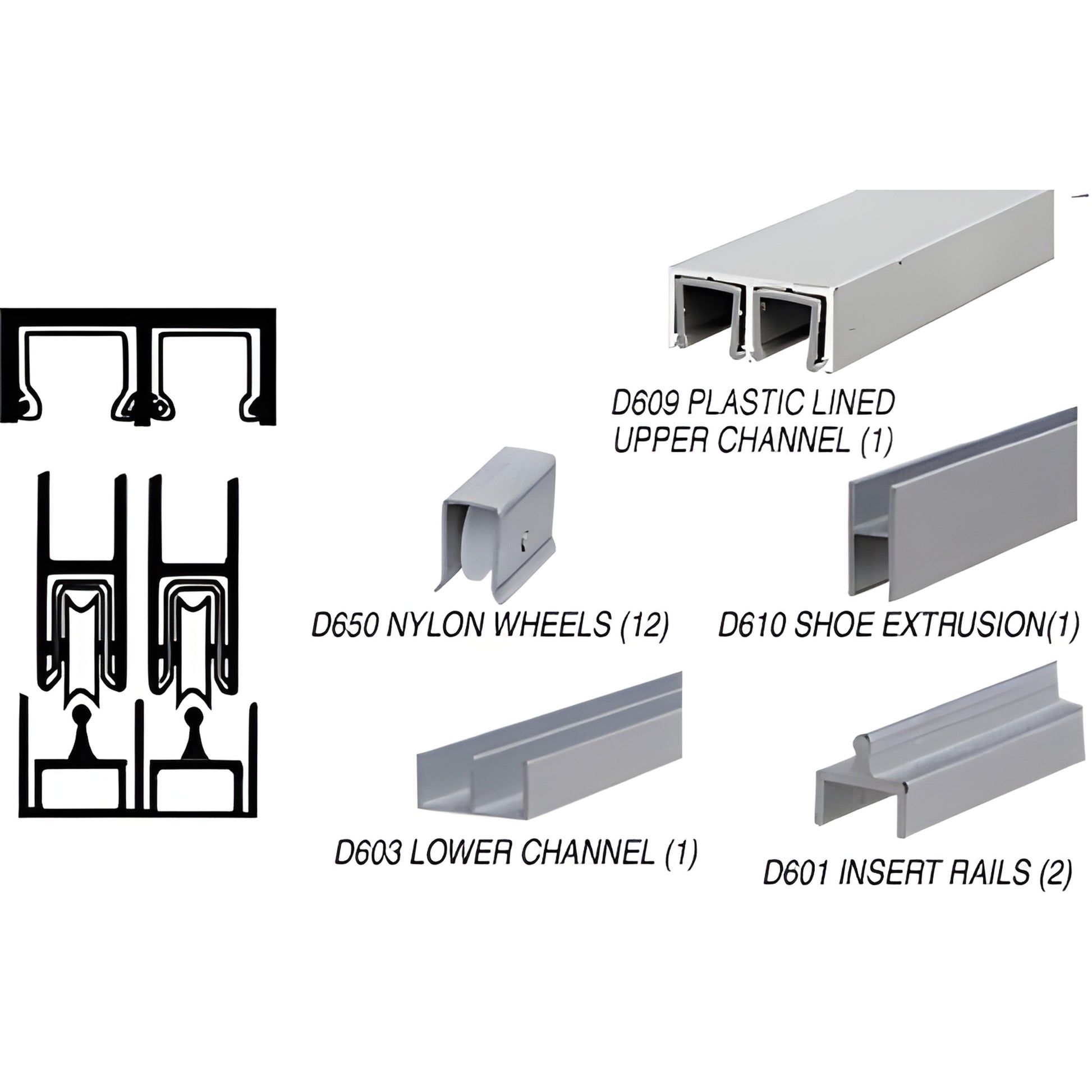

Components for D2300A:
D601 (x2)
D603 (x1)
D609 (x1)
D610 (x1)
D650 (x12)
D9650 (x1)

Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment. If you need a very tight fit, verify your own dimensions; listed dimensions are guidelines satisfactory for most installers.

Glass height guidance (approximate):
D2200 Series: Glass Height = Opening Minus 1-5/16"
D2203 Series / D2204 Series: Opening Minus 1-1/8"
D2300 / D2301 / D2303 / D2305 Series: Opening Minus 1-3/8"
D2306 / D2307 Series: Opening Minus 1-5/8"

Order the D2300A Deluxe Rolling Track Assembly — reliable 12' sliding door track with nylon wheels and multiple finishes. Contact us for pricing and custom cuts.
