CRL Hydraulic Patch 2-9/16" Setback Satin Anodized 90Β° Hold Open
CRL Hydraulic Patch 2-9/16" Setback Satin Anodized 90Β° Hold Open
Regular price
$315.52 CAD
Regular price
Sale price
$315.52 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL380HA
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)

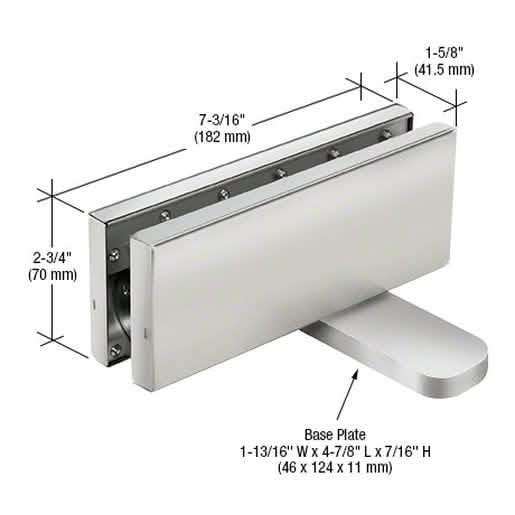

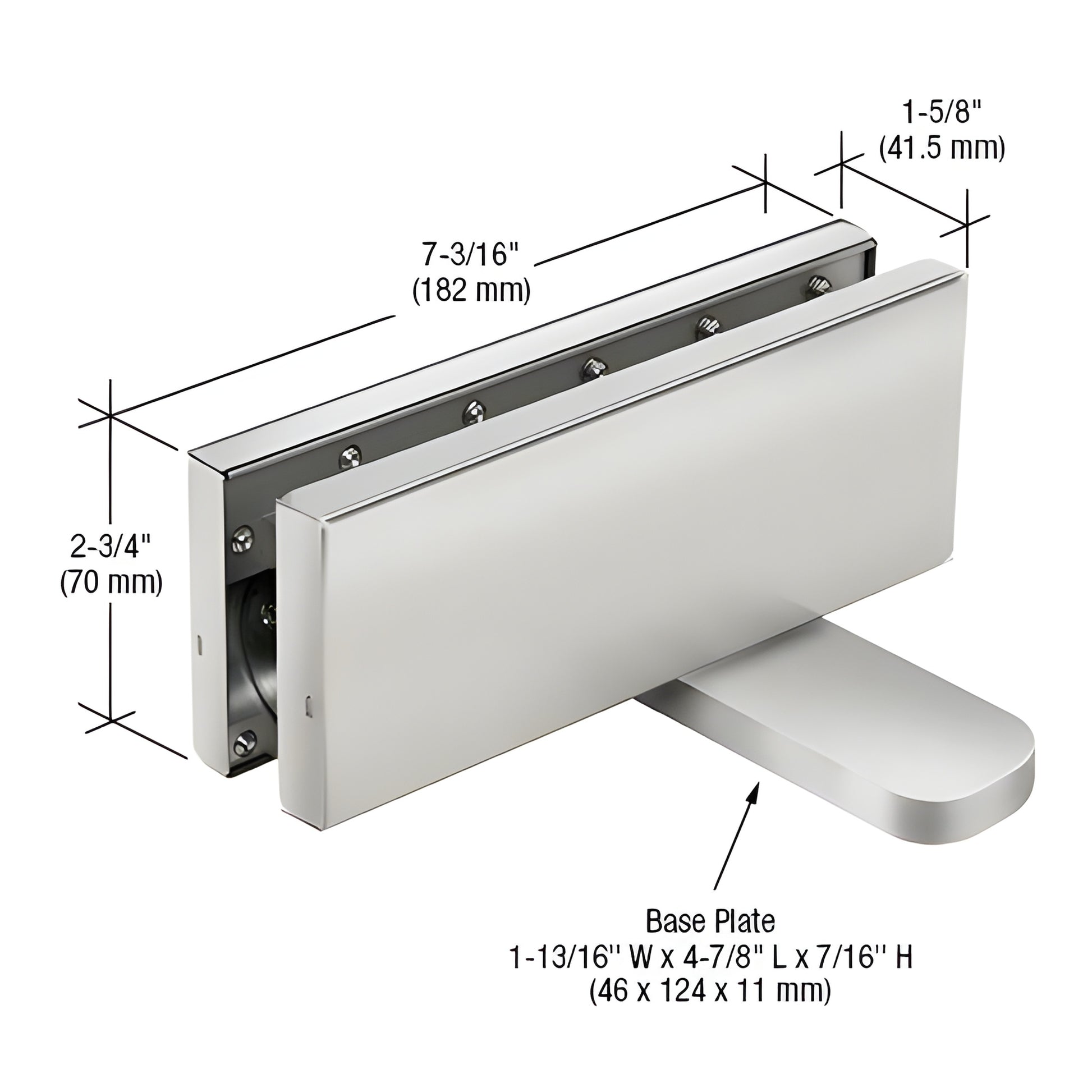

Height
2-3/4 in. (70 mm)
Hold Open
Yes
Length
7-3/16 in. (183 mm)
Maximum Door Width
39 in. (991 mm)
Maximum Panel Weight
220 lbs. (99.8 kg)
Pivot Setback
2-9/16
Width
1-5/8 in. (41 mm)
Overview
- 2-9/16" (65 mm) pivot point
- Available finishes: Brushed Stainless, Polished Stainless, Satin Anodized, Matte Black
- Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
- Flush mount β no hole required in the floor
- Interior use only
- Must be used with PH21A top patches
CRL380 Series Hydraulic Patch Fittings (SKU: CRL380HA) are medium-duty hydraulic patch fittings engineered for interior glass doors and storefronts. Features two adjustment screws to fine-tune latching speed and swing speed for smooth, controlled closing. Designed as a flush mount solution that eliminates the need for additional floor or overhead closers. Supports maximum door width of 39" (1 m) and maximum door weight of 220 lbs (100 kg). Fits 3/8" (10 mm) and 1/2" (12 mm) tempered glass; glass fabrication (cut-out) is required.
Product Warning:
Custom headers with a 2-9/16" (65 mm) pivot point must be ordered if required. These fittings are not compatible with stock NH36xx and NH72xx headers.
Order the CRL380HA hydraulic patch fitting for reliable, adjustable interior glass door hardware β contact CRL or your local distributor to buy now.
