CRL Satin Anodized Manual Flush Mount Bi-Fold Service Window

• Select From Manual or Semi-Automatic Operation
• Available in Stock or Custom Sizes and Finishes

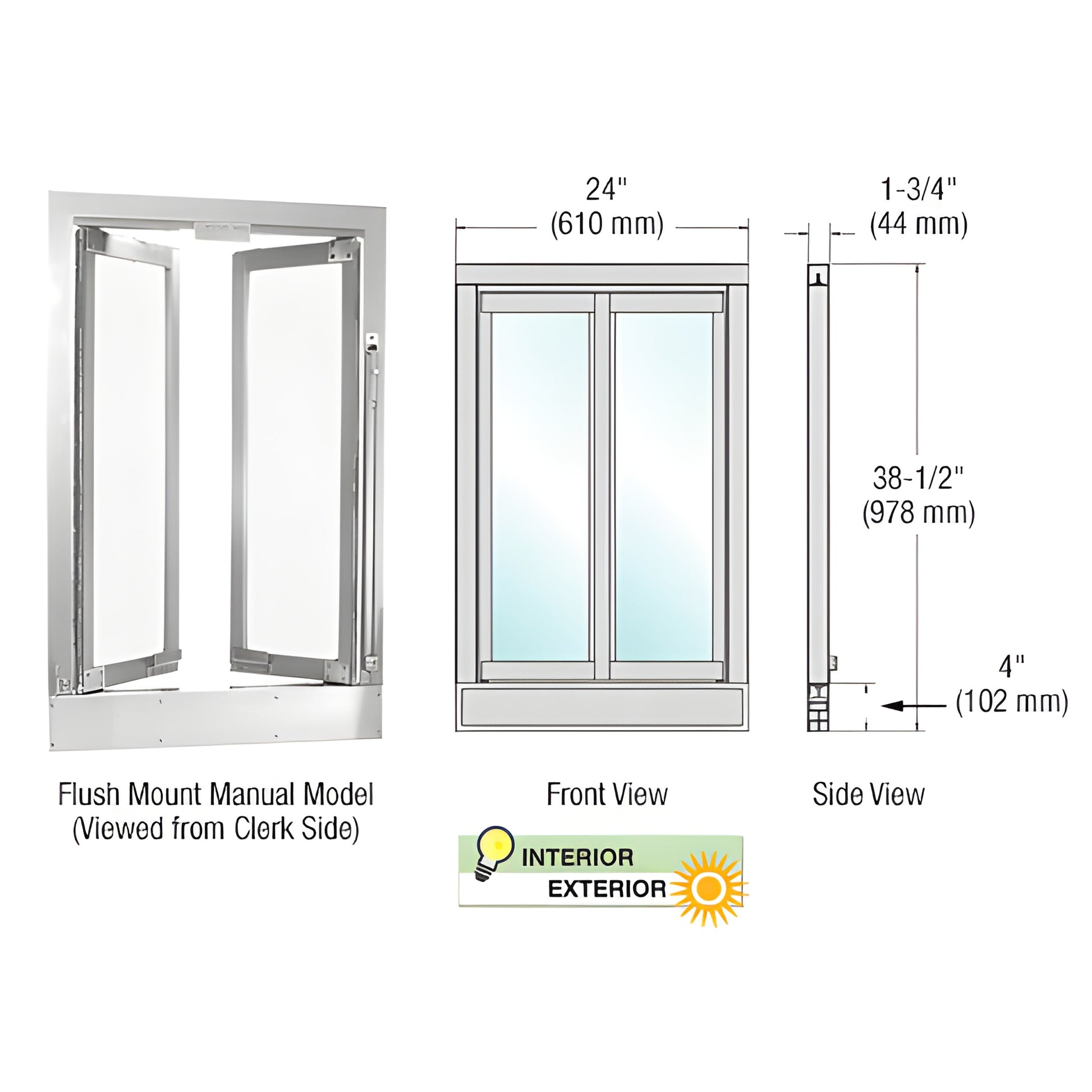

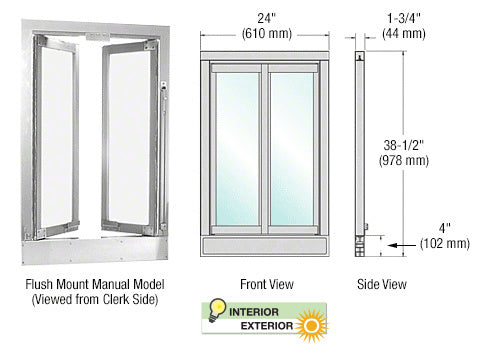

• Drawings and Specifications are Available

CRL Bi-Fold Service Windows are perfect anywhere a high quality bi-folding window is required. Features include two panels that simultaneously open outward towards the customer, and a burglar bar for extra security. Projected and Flush Mount models are available in two different configurations:


MANUAL - Both panels move simultaneously as either panel is manually operated.

SEMI-AUTOMATIC - Opening the window is achieved by pushing on the hip activated slide bar. Step away from the window and the two panels automatically close. Custom sizes and custom paint colors are available by special order. For additional information, contact CRL Technical Sales Department.

NOTE: Manual models can be ordered with pivot mechanism at header for clear counter by others.

SPECIFICATIONS:
Materials: Aluminum Extrusions; Pile Weatherstrip; Glazing Vinyl; Stainless Steel Shelf or Stainless Steel Sill
Glazing: 1/4" (6 mm) Clear Tempered Glass
Stock Finishes: Satin Anodized or Bronze Anodized
Bi-Fold Configuration: Manual
To Determine Rough Opening: Add 1/2" (12 mm) to Width, 1/4" (6 mm) to Height
