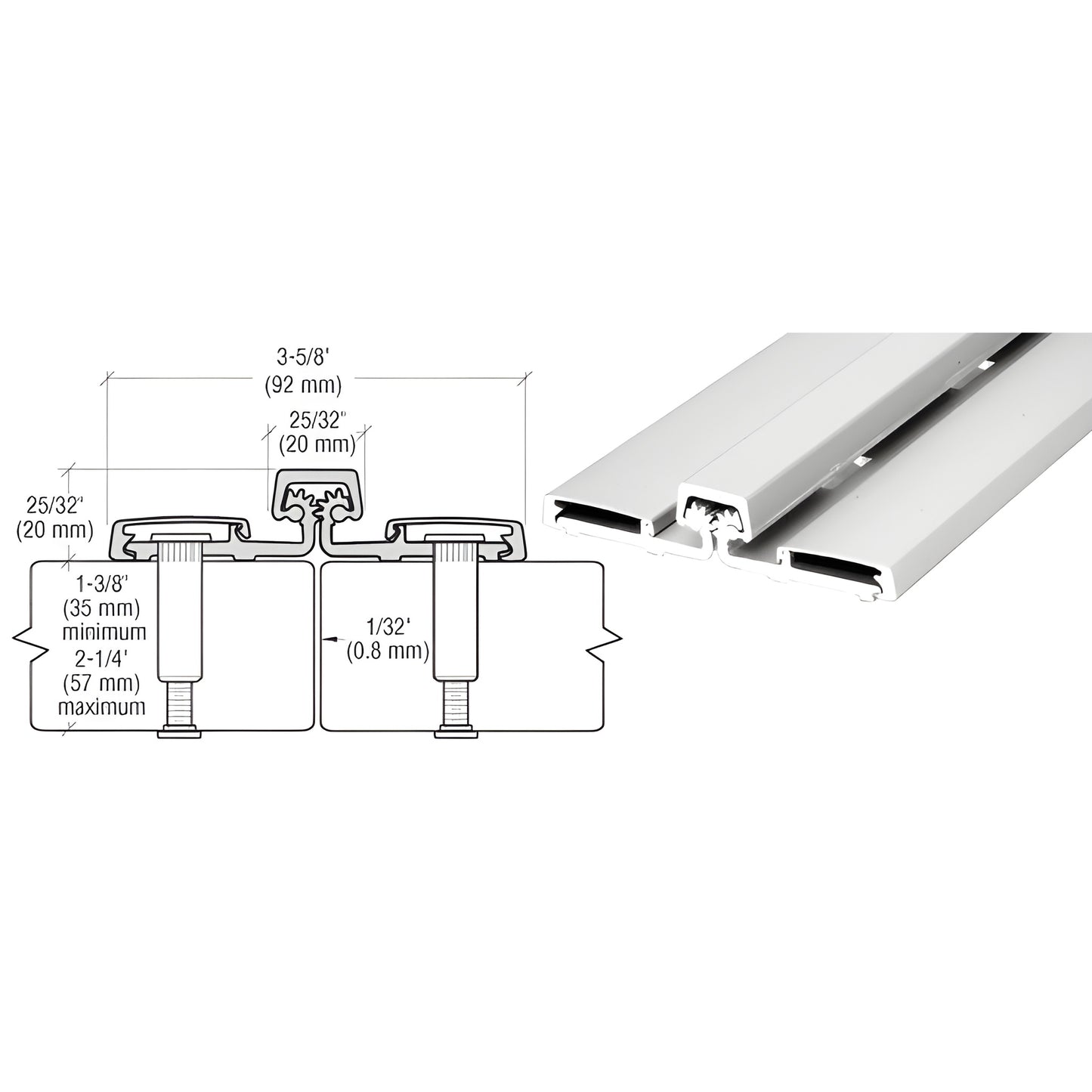

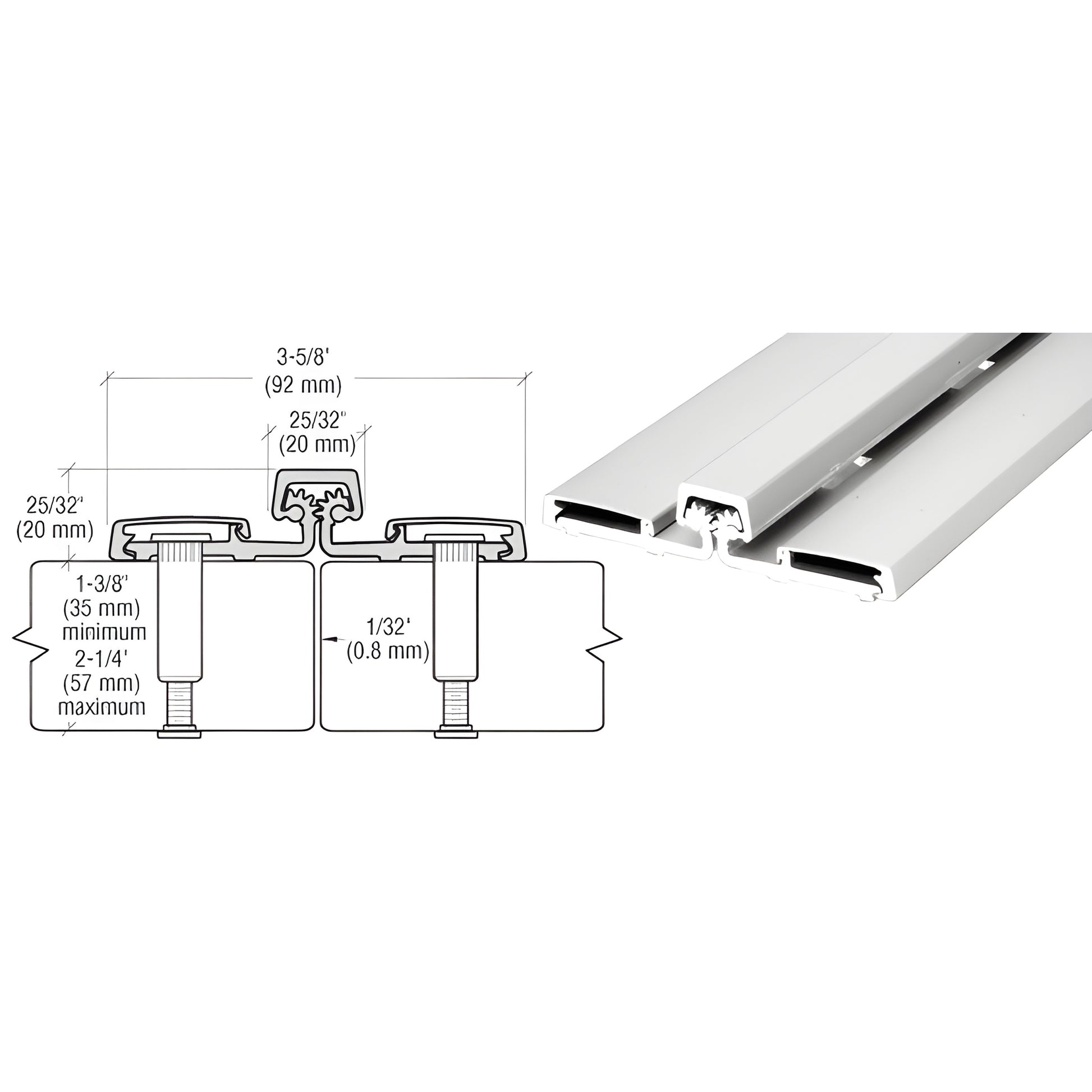

CRL Satin Anodized Roton® 057HD Series 83" Heavy-Duty Full Surface Hinge
CRL Satin Anodized Roton® 057HD Series 83" Heavy-Duty Full Surface Hinge
Regular price
$823.97 CAD
Regular price
Sale price
$823.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 057HD83A
Shipping Weight: 10.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
600 lbs. (272.2 kg)
Replacement Screw Pack
94875SA
Series
Roton 057HD
Width
3-5/8 in. (92.1 mm)
Overview
- Specified everywhere for long service life
- Straight hole pattern for consistent alignment
- Available in standard or heavy-duty models
- Heavy-duty hinges supporting doors up to 600 lb (272 kg)
CRL Roton® Hinges are high-strength aluminum door hinges featuring a full-length rolling gear profile that aligns doors perfectly from top to bottom. Special self-lubricating polyacetal load-bearing blocks ensure smooth, near-floating operation—even on the heaviest commercial glass and metal doors. All mounting hardware is hidden for a clean aesthetic and secure installation. Units ship complete with installation instructions and all necessary mounting hardware; replacement screw packs are available. SKU: 057HD83A
Choose CRL Roton® heavy-duty hinges for reliable, low-maintenance performance on high-capacity doors — order or request a quote today.
