CRL Satin Anodized D603/D602 Replacement Door Track w Nylon Wheels

• D2203 Series
• D650 Nylon Wheels
• Low Profile Rolling Track Assembly for 1/4" (6 mm) Tempered Glass
• Two Styles of Upper Channel
• Available in Up to Six Finishes
• 12' (3.66 m) Length
• Optional Locking Hardware Available

CRL's 12' (3.66 m) Low Profile Rolling Track Assemblies are packaged with extrusions, wheels, and guides required to complete custom sliding glass door projects. Designed specifically for 1/4" (6 mm) tempered glass doors, these low-profile track assemblies are ideal for display cases, trophy cases, china cabinets, retail showcases, and other commercial or residential glass enclosure applications. Choose D650 Nylon Wheels for quiet, smooth operation or select Steel Ball Bearing Wheels for extended durability. The system supports design flexibility with two upper channel styles and multiple finish options. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately).

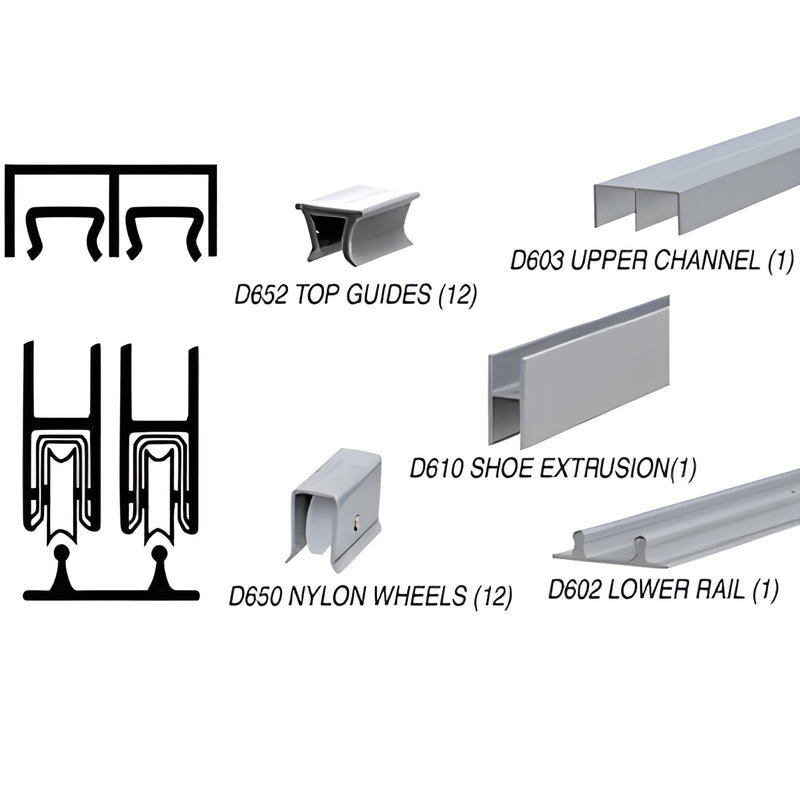

Components for D2203A

D602A (x1)
D603A (x1)
D610A (x12)
D650 (x12)
D652 (x1)
D9650 (x1)

NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.


Call CRL or order online to specify finish and wheel type for SKU D2203A.
