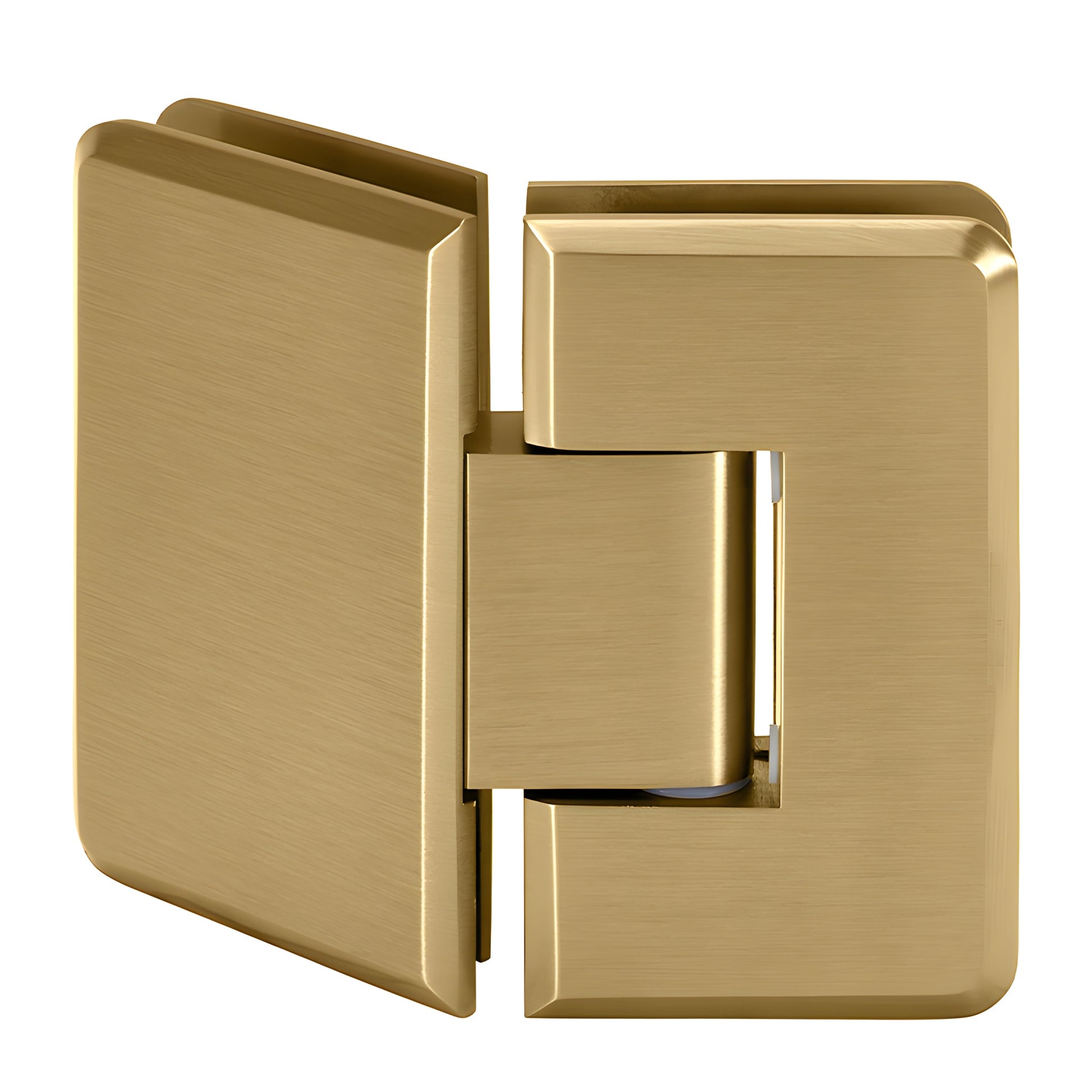

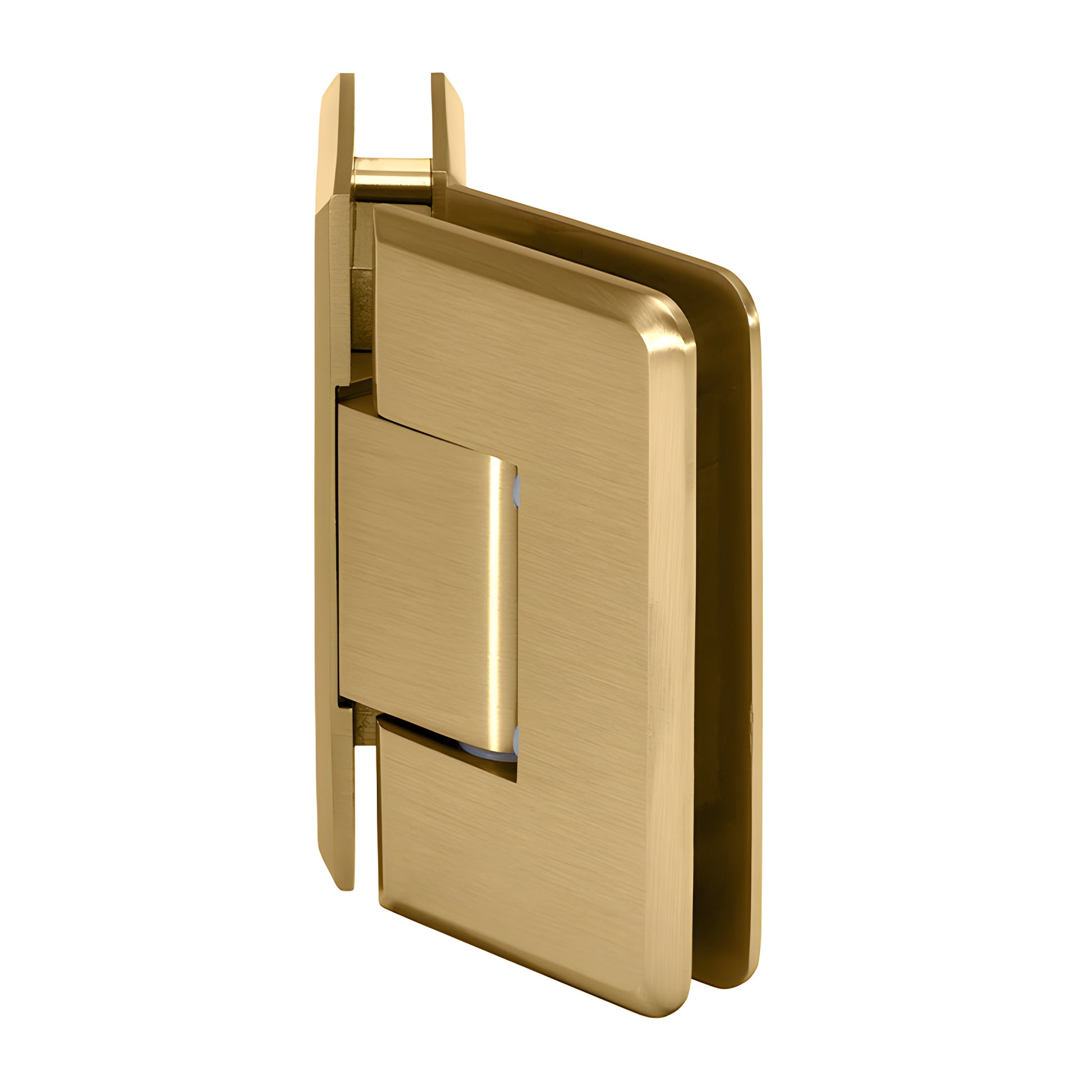

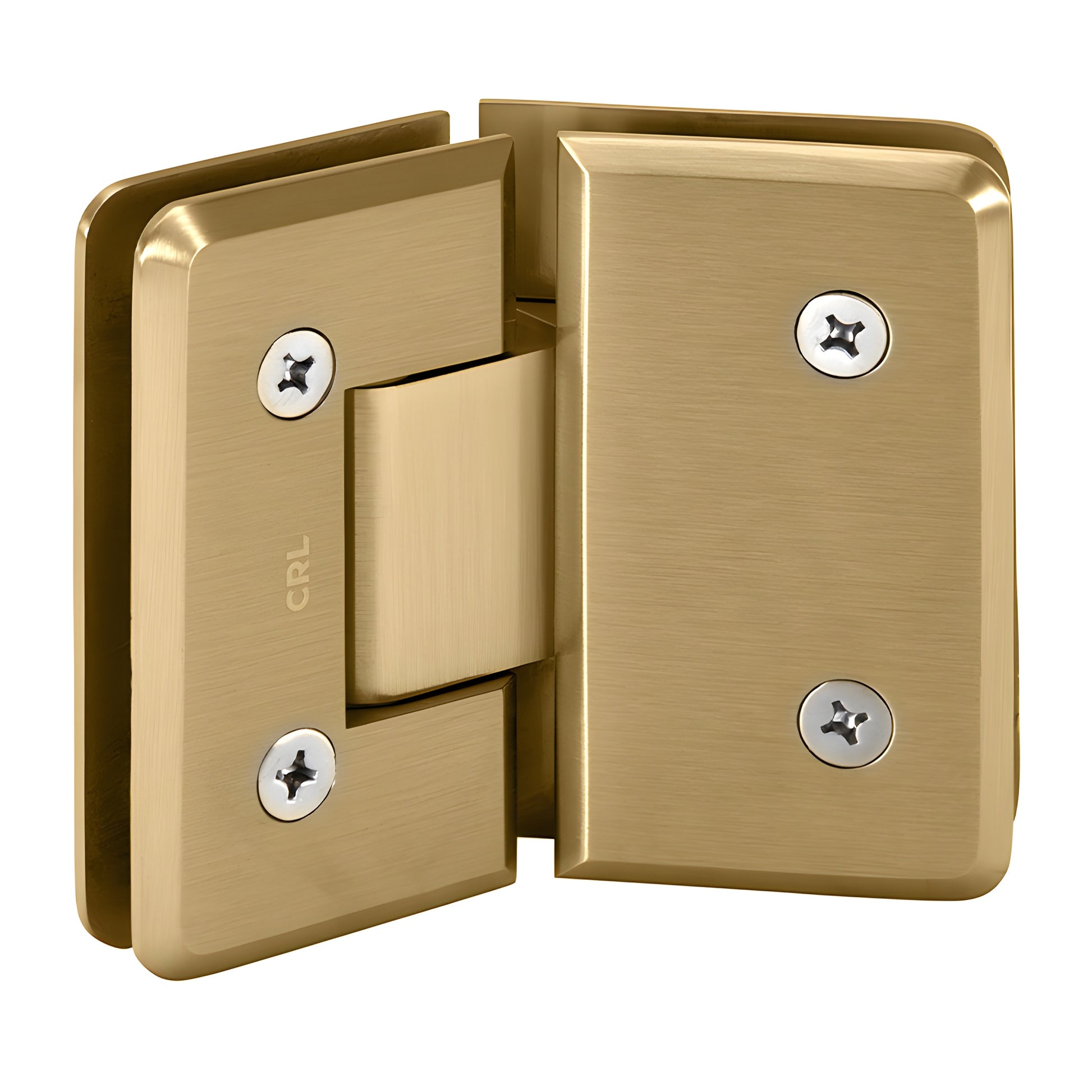

CRL Satin Brass Cologne 045 135° Glass-to-Glass Frameless Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several durable finishes
• 135º glass-to-glass shower hinge
• Use with monolithic tempered glass

CRL Cologne Hinges (SKU: C0L045SB) are a solid-brass solution for wider, heavier frameless shower doors. Similar to Vienna hinges but with radius corners and beveled edges, Cologne Hinges provide a sleek, contemporary look while supporting greater loads than standard hinges. Ideal long-tail keywords: frameless glass shower hinge for heavy doors, 135-degree glass-to-glass shower hinge. Two internal steel pins offer mounting flexibility:

• Leave both pins in place to use CRL "mouse-ears" cut-outs for enhanced safety around cut areas.
• Remove the pins for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs — may fit some competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; Pre-Set models ship at 85º for a 5º tighter closure into the shower interior. The pin can be rotated (not flipped) to change the active angle. CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45º when the standard 5º adjustment is insufficient). Load Ratings:

• Using two hinges with 3/8"–1/2" glass (10–12 mm): holds up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm).
• Using three hinges with 3/8"–1/2" glass (10–12 mm): holds up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm).

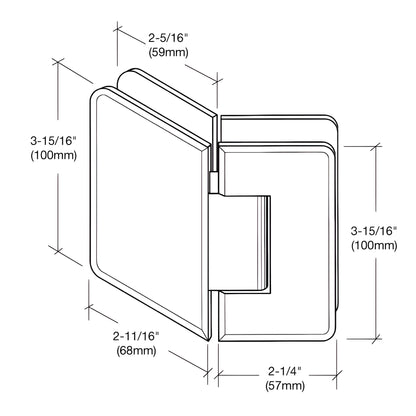

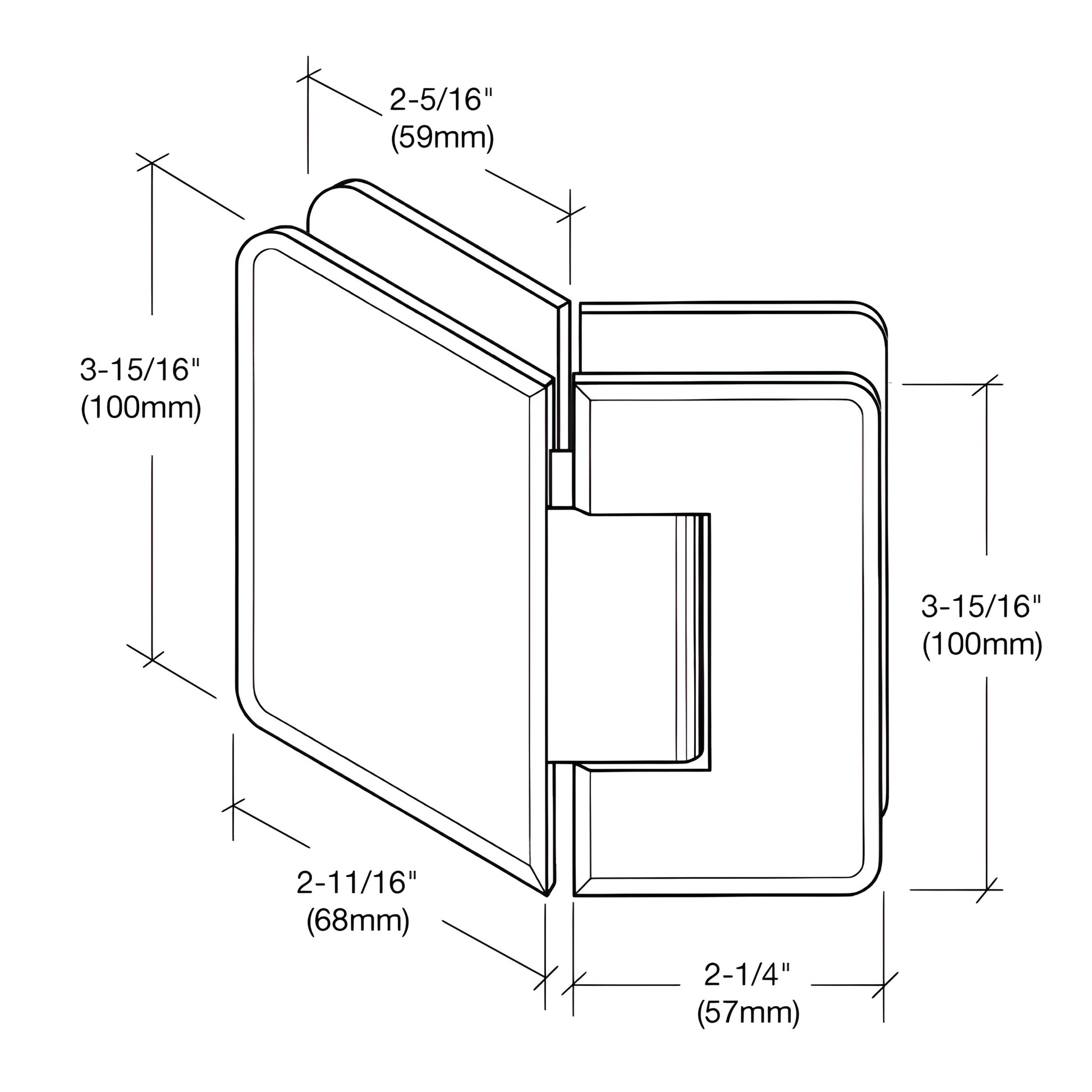

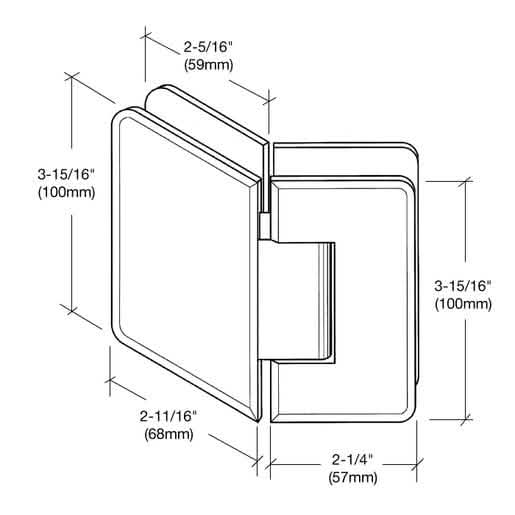

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Except C0L092, which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping
