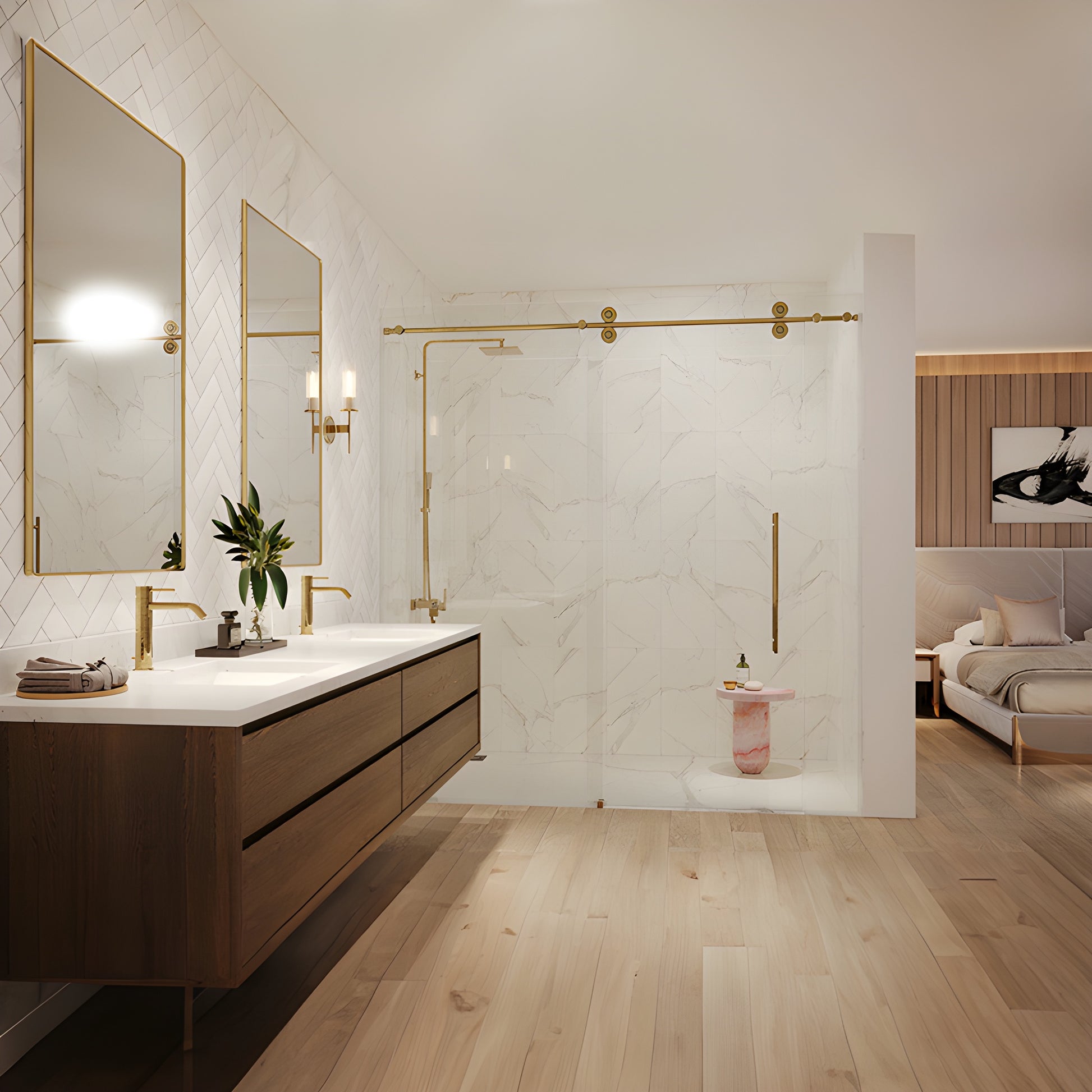

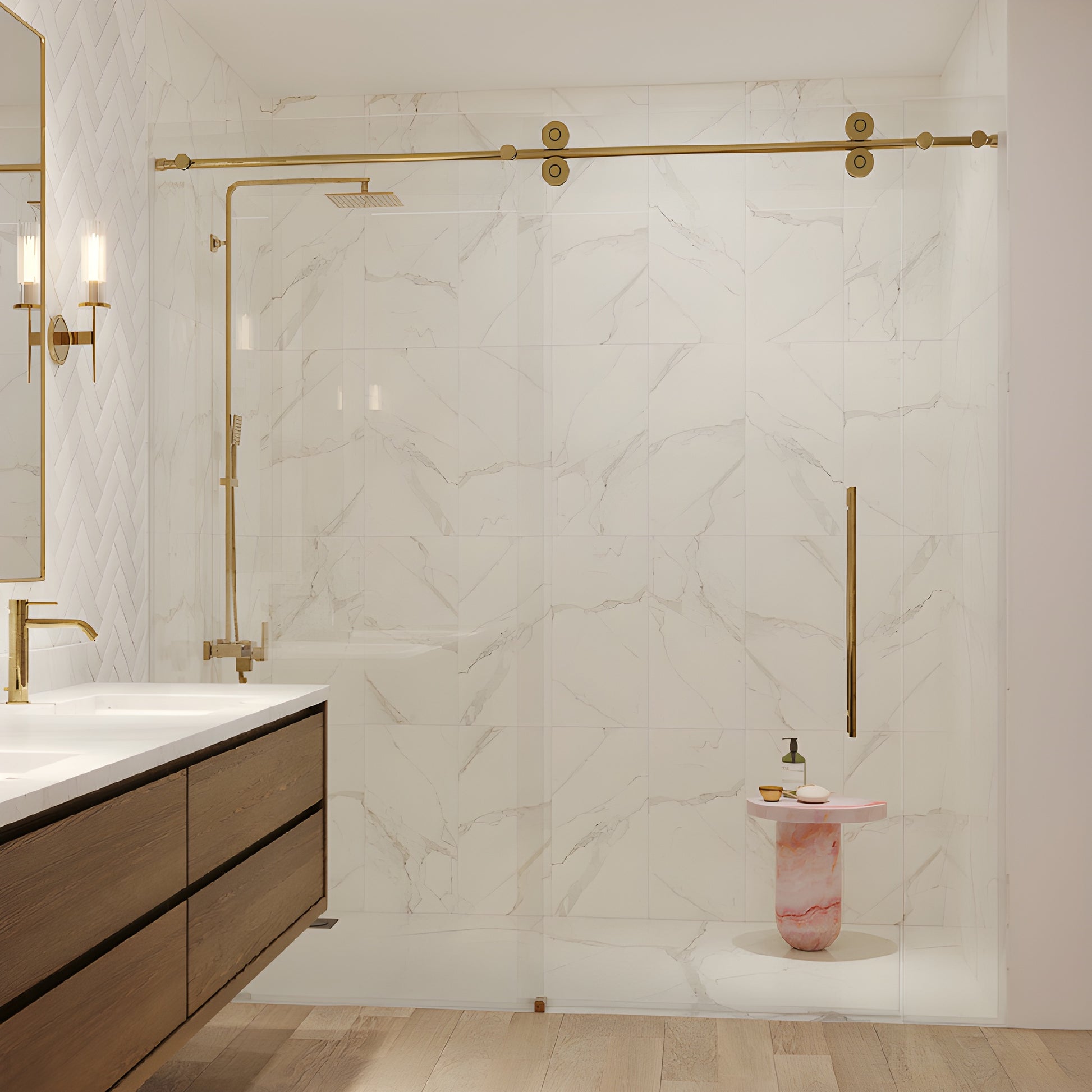

CRL Shower Door Sliding Kit Satin Brass Complete 180º Premium Colonia Series Sliding System
Item # CLN78SB
Finish (5)
Part Type (4)
Overview
| SKU | CLN78SB |
|---|---|
| Sold As | 1 Each |
| Design Style | Concealed/Premium |
| Enclosure Type | Corner, Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Satin Brass |
| Glazing Thickness | 1/2" or 3/8" (12 or 10 mm) |
| Length | 78 in. (1981 mm) |
| Material | Stainless Steel |
| Maximum Door Height | 80 in. (2032 mm) |
| Maximum Door Weight | 100 lbs. (45.4 kg) |
| Maximum Door Width | 36 in. (914 mm) |
| Maximum Opening Width | 78 |
| Opening Style | Slide |
| Roller Location | Top |
| Series | Colonia |
Description
- Beautifully Enhanced Aesthetics Including Concealed Mounting Hardware
- System Features One Sliding Door and One Fixed Panel

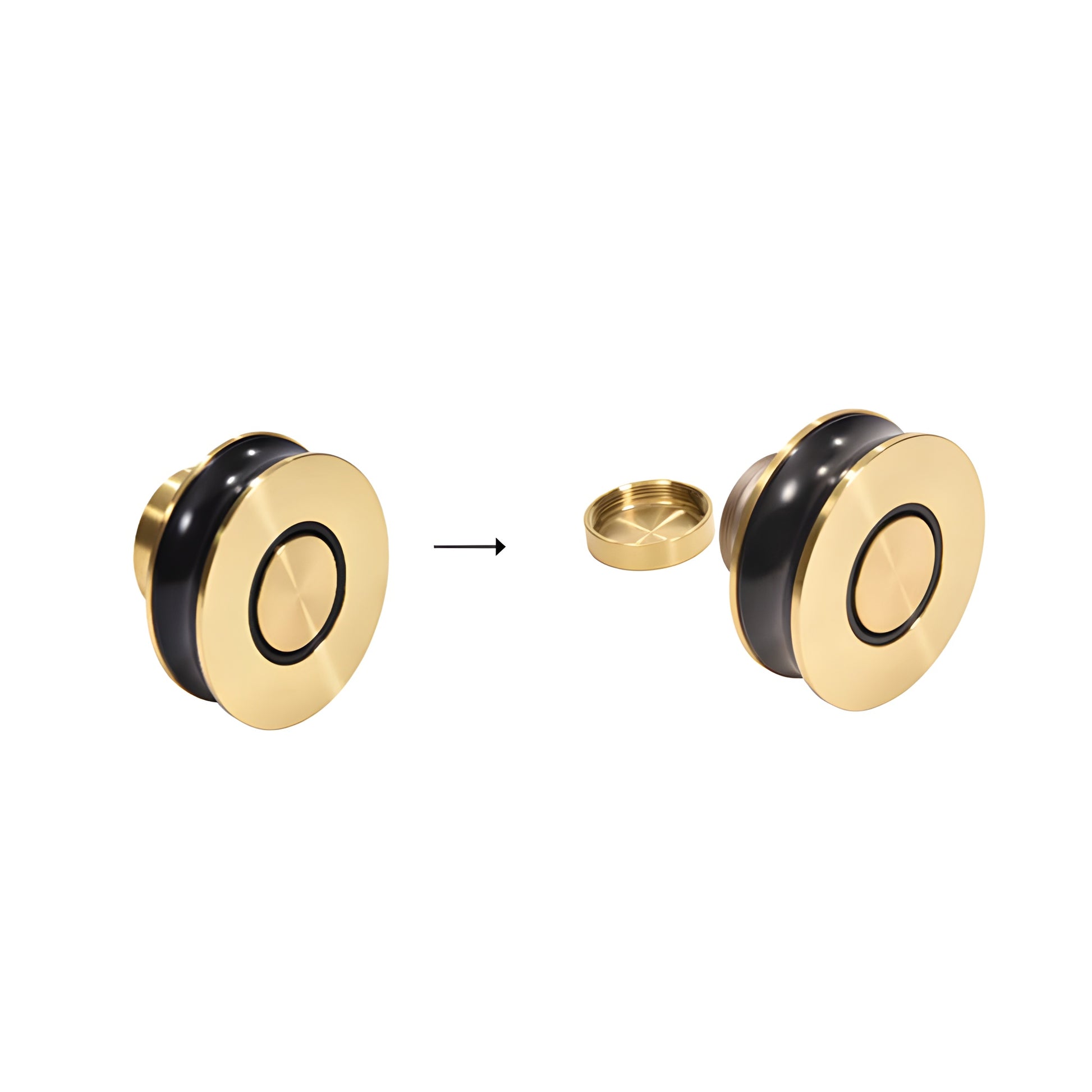

- Circular Header and Rollers Provide Symmetrical Aesthetics
- Handle or Knob for Door Glass Ordered Separately
- Accommodates 1/2" or 3/8" (12 or 10 mm) Thick Tempered Safety Glass (Not Included)
- Glass Clamps or U-Channel for Fixed Panel Ordered Separately
The circular shaped Header and the round Rollers of the Premium Colonia Series Sliding Door System are the perfect complement to each other. They help provide a luxurious sliding shower door system and a soft décor. The use of minimal hardware with concealed installation hardware lends itself to the popular modern sliding shower door systems by showing more glass, and no hardware. These quality Rollers assure quiet door travel, and make the door easy to slide. The Colonia Series Sliding System accommodates 1/2"or 3/8" (12 or 10 mm) thick tempered safety glass (not included), and the system allows that the fixed and sliding panels are reversible for installation as desired. The Colonia Series Sliding Door System is available in a choice of polished stainless steel, brushed stainless steel, matte black, brushed bronze, or the popular satin brass finish.

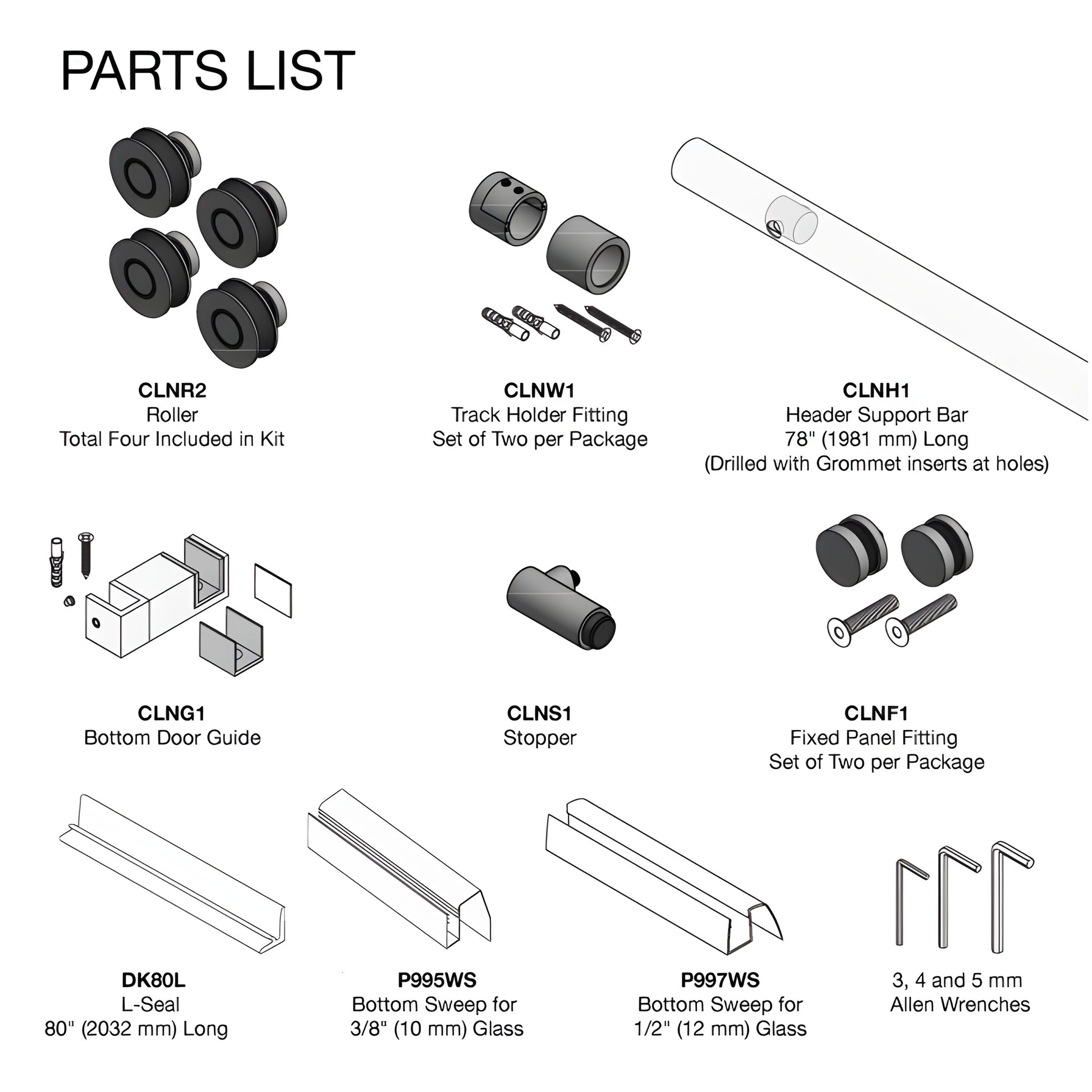

STANDARD 180 DEGREE KIT INCLUDES:
NOTE: Customer to supply choice of Handle or Knob for door, and Glass Clamps or U-Channel for fixed panel.
SPECIFICATIONS:
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.Specifications
Brochures & Literature
Installation Instructions
Specifications
Templates
Cleaning & Maintenance
