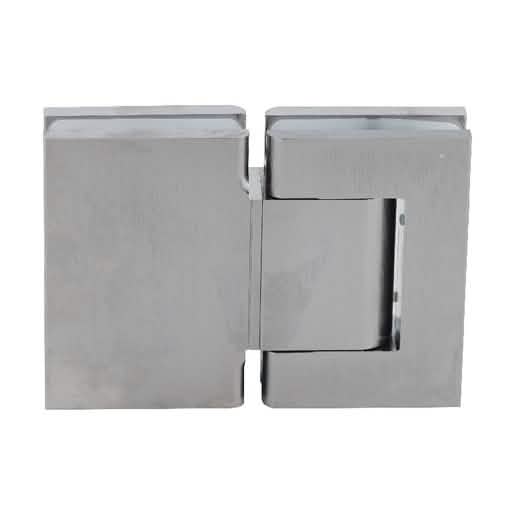

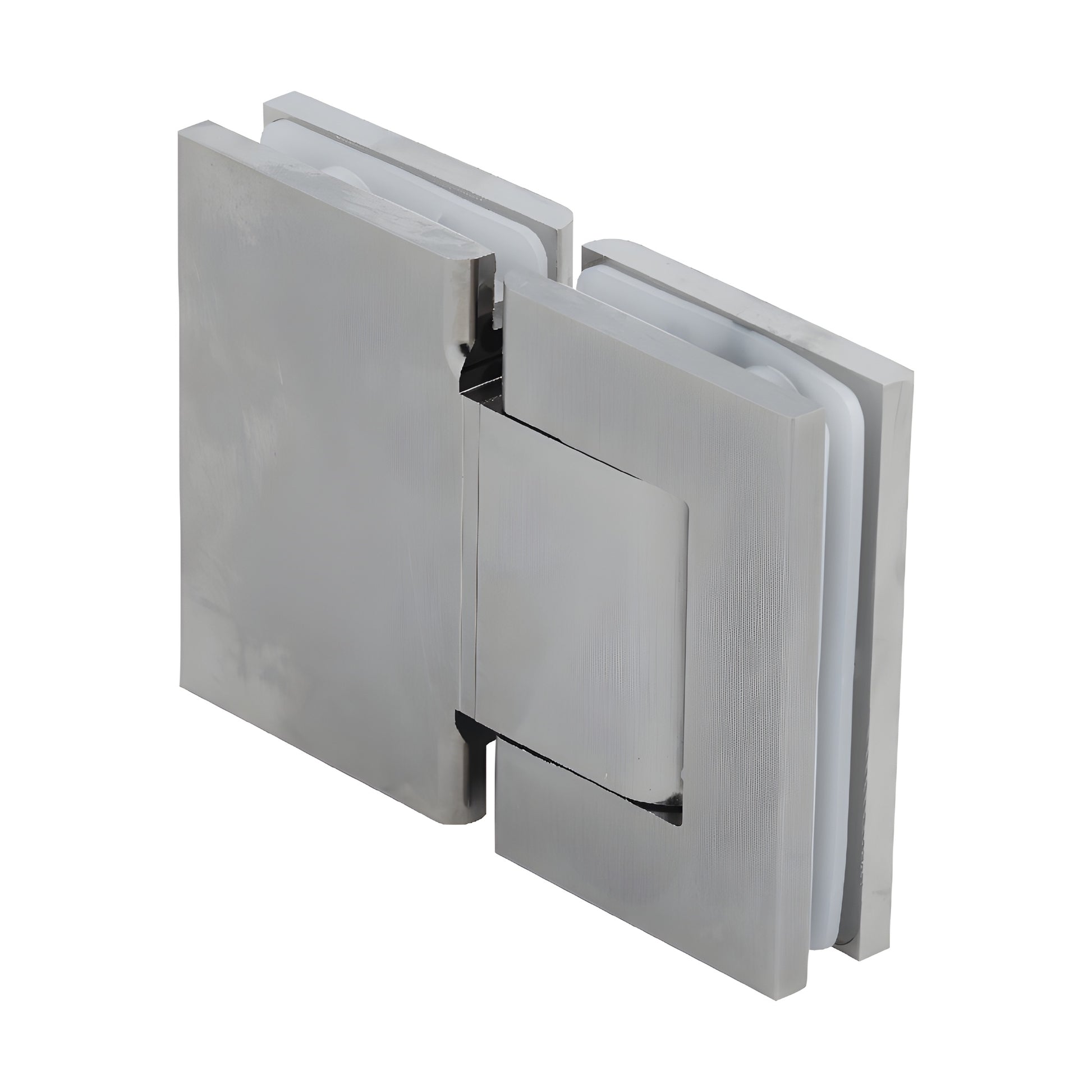

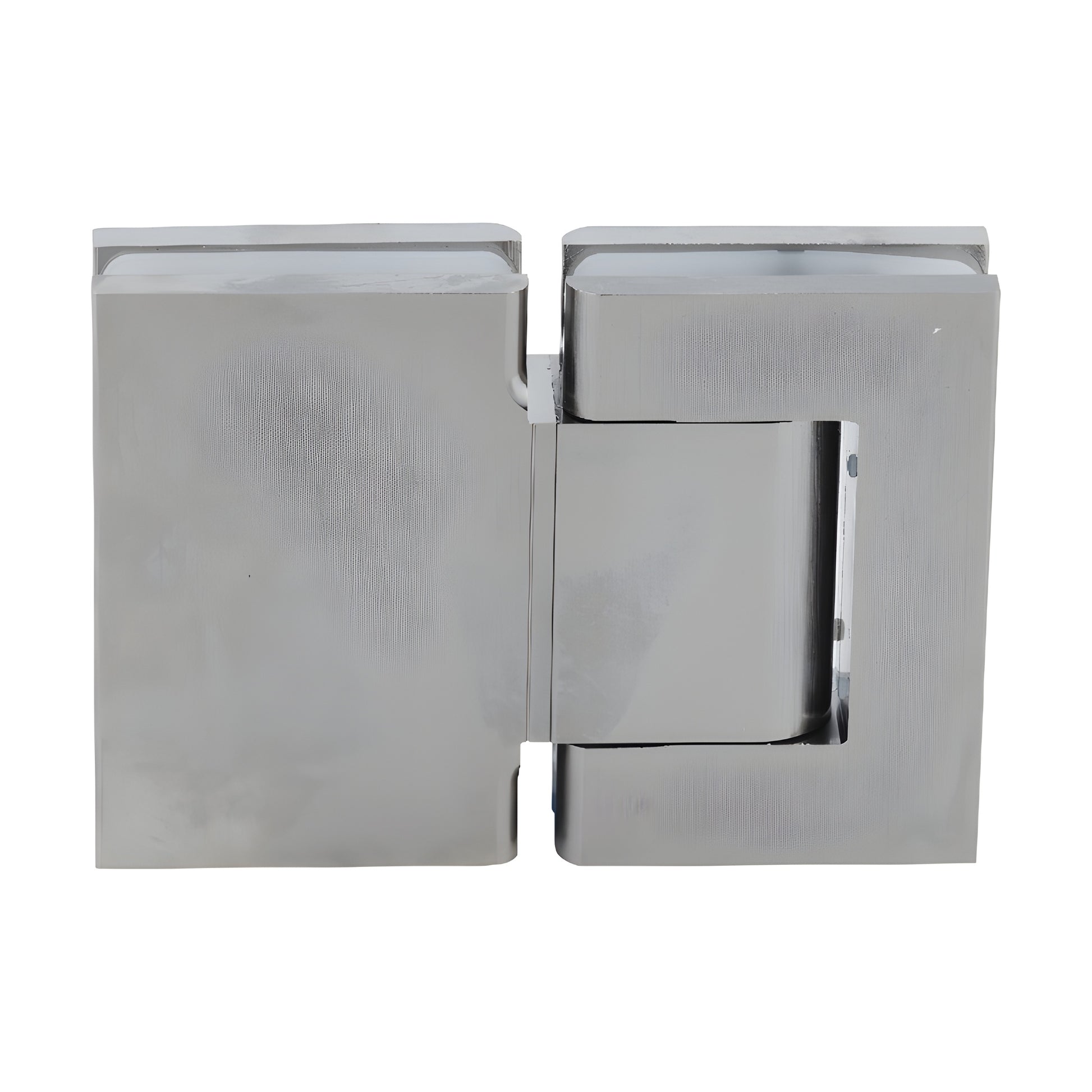

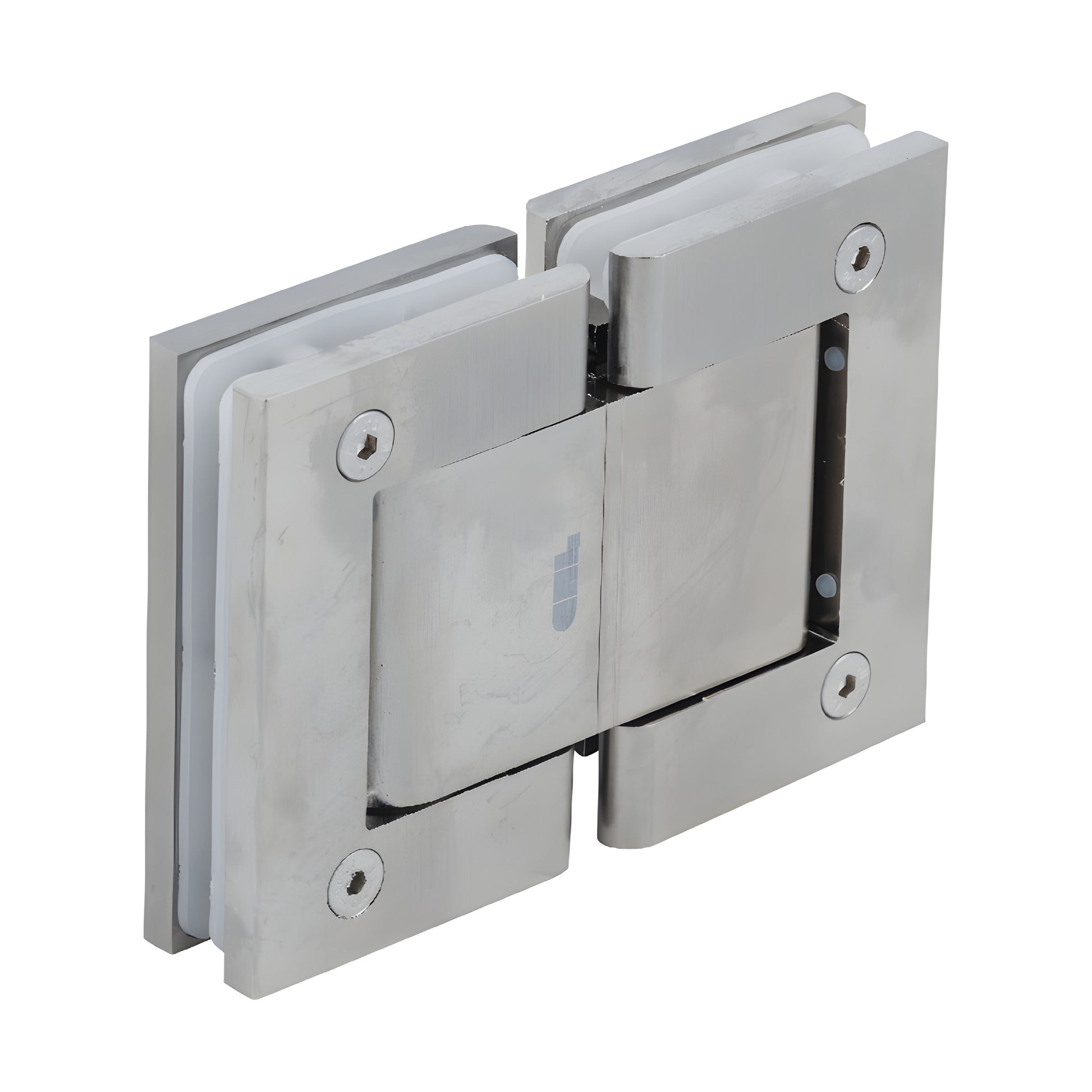

CRL Satin Nickel Vernon Oil Dynamic 180º Glass-to-Glass Hinge
Item # H8015BTSN
$641.16
CAD
Finish (2)
-
Polished Chrome -
Satin Nickel
Overview
| SKU | H8015BTSN |
|---|---|
| Sold As | 1 Each |
| Adjustable Closing Speed | Yes |
| Edge Profile | Square |
| Finish/Color | Satin Nickel |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 5/16 in. To 9/16 in. (8 mm To 14 mm) |
| Height | 4-1/4 in. (108 mm) |
| Hold Open | Yes |
| Material | Aluminum |
| Maximum Clamping Screw Torque | 60-70 lbf.in (677.9-791 cN.m) |
| Maximum Door Weight - 2 Hinges | 176 lbs. (79.8 kg) |
| Maximum Door Width | 39 in. (991 mm) |
| Mounting Type | Glass To Glass |
| Self-Closing | Yes |
| Series | Vernon |
| Width - Door Portion | 2-7/8 in. (73 mm) |
| Width - Sidelite Portion | 2-7/8 |
Description
- For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
- Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
- Hold Open or No Hold Open Models
- Adjustable Closing Speed
- Apply medium-strength threadlocker on cover plate screws
This CRL Oil Dynamic 180º Glass-to-Glass Hinge swings in and out a full 90º, with stops at 0º, +90º, and –90º. Closing speed can be adjusted, making it a great alternative to floor closers and patch fittings. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 176 lbs. (79.8 kg).
The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. It allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 176 lbs. (79.8 kg). A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, with positive stops at 0º and 90º, giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. It has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
NOTE: Do not use more than two hinges on one door. Not suitable for exterior/outdoor use. For exterior use we recommend H8015JCBS.
Product Warning:
Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
