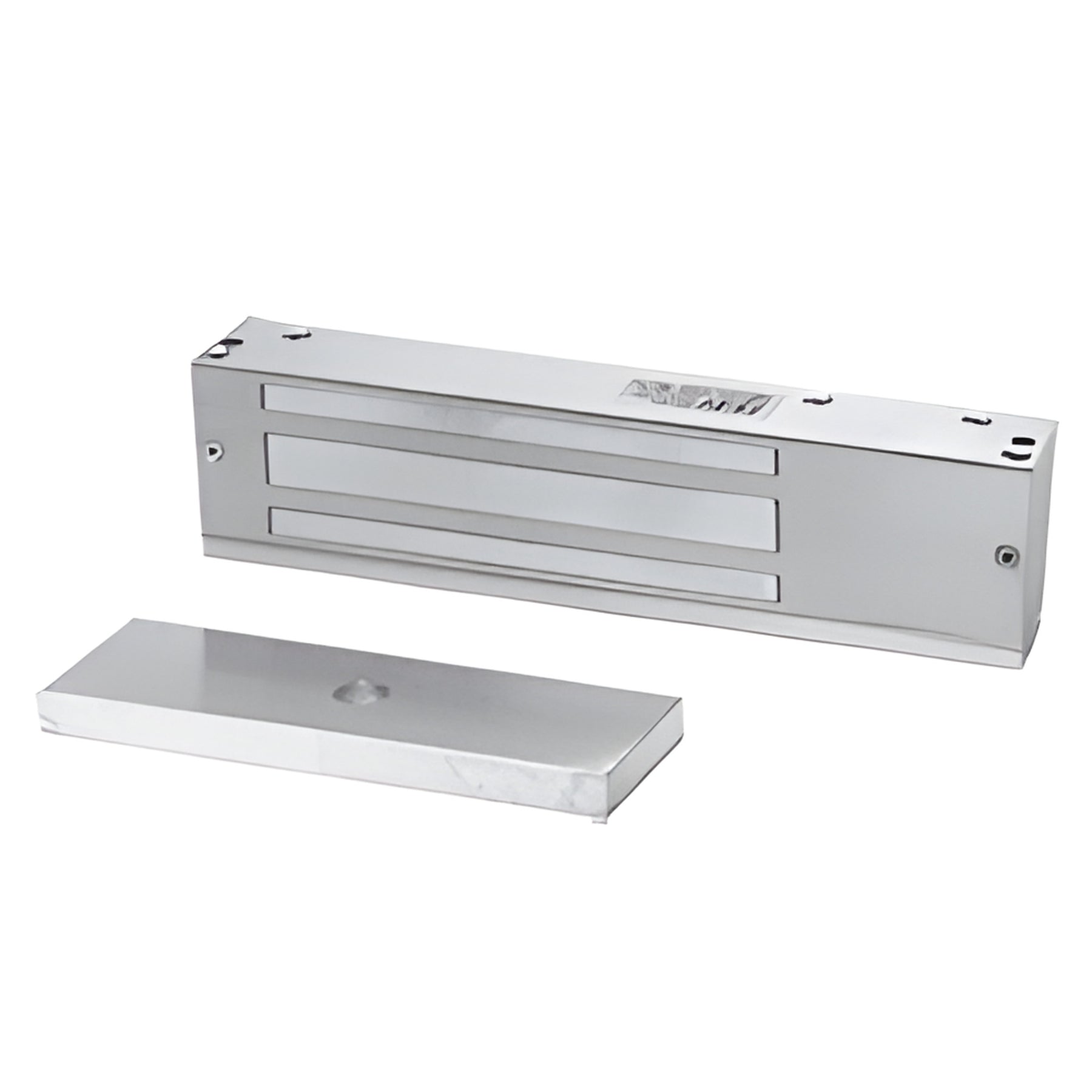

CRL SDC® EMLock® 1650 lb Electromagnetic Door Lock Aluminum Finish

• ANSI/BHMA Grade 1 compliant
• Fully automatic 12/24V DC selection
• 1650 lbs. holding force (748 kg)
• Field-upgradeable without removal from the frame
• Anodized aluminum or dark bronze anodized finish
• Limited lifetime warranty
• UL Listed

CRL SDC® EMLock® 1500 Series Electromagnetic Lock (SKU: SDC1511A) — high-security electromagnetic lock engineered for top-jamb and glass door installations. Designed for installers and specifiers, this epoxy-less EMLock® delivers a clean, anodized finish on all visible faces and an interlocking EZ-mount assembly that leaves hands free for wiring and securing mounting screws. Field-upgradeable internal components mean upgrades or exchanges can be performed without removing the lock from the frame. Includes self-drilling/tapping sheet-metal screws and 10-32 machine screws.

Key differentiators: ANSI Grade 1 certification, UL Listing, 1650 lb holding force for extra high security, true 12/24V DC automatic selection for retrofit flexibility, and field-upgradeable design for minimal downtime.

SPECIFICATIONS:
Holding Force: 1650 lbs. (748 kg)
Input Voltage: 12/24 Volts DC - automatic selection (requires filtered power supply)

Single EMLock®
Current Draw: 670 mA @ 12V DC; 350 mA @ 24V DC
Dimensions: L = 11" (279 mm) x H = 2-3/4" (70 mm) x W = 1-9/16" (40 mm)
Weight: 11 lbs. (5 kg)

For secure, field-upgradeable electromagnetic locks for glass doors and top-jamb installations, choose the CRL SDC® EMLock® 1500 Series (SDC1511A). Contact CRL to order or request a spec sheet.
