Product Details
- 1-6 Digit Codes for Up to 500 Users
- Heavy Cast Vandal Resistant Housing
- Surface Mount
- 12/24 Volts AC/DC

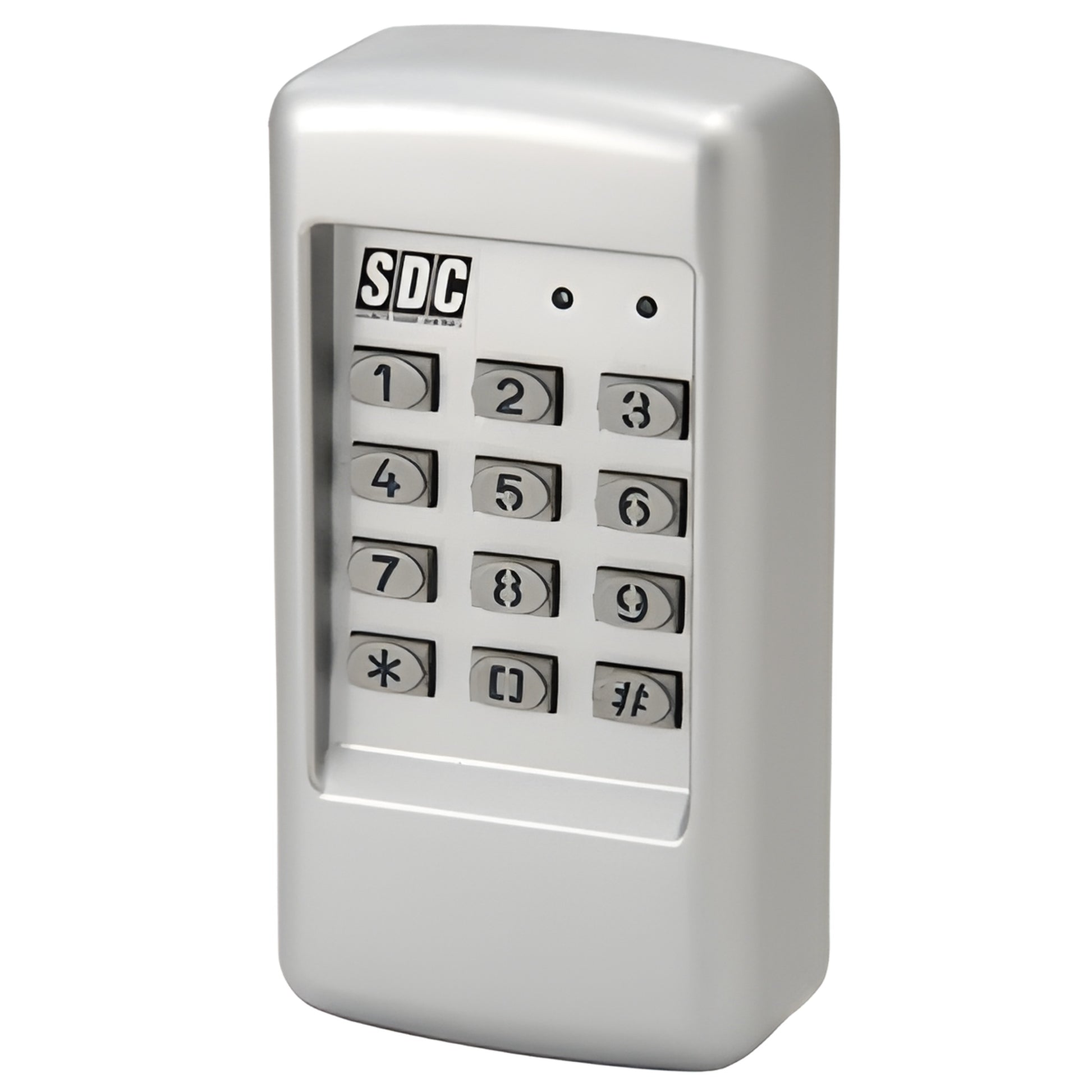

The SDC® designed EntryCheck® Heavy-Duty Programmable Keypad is a stand alone digital keypad designed to control access to a single point for facilities with up to 500 users. Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock. Heavy cast vandal resistant housing with metal blue backlit keys.
SPECIFICATIONS:
Input: 12/24 Volts AC/DC
Current Draw: 30mA Typical, 150mA Maximum
Outputs: Relay 1 = SPDT 5A @ 30VDC
Outputs: Relay 2 = SPDT 2A @ 30VDC
Dimensions: 3" W x 5-3/4" H x 1-7/16" D (76 x 146 x 37 mm)
Temperature: -20ºF to +130ºF, -30ºC to +54ºC
Finish: Brushed Stainless
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
