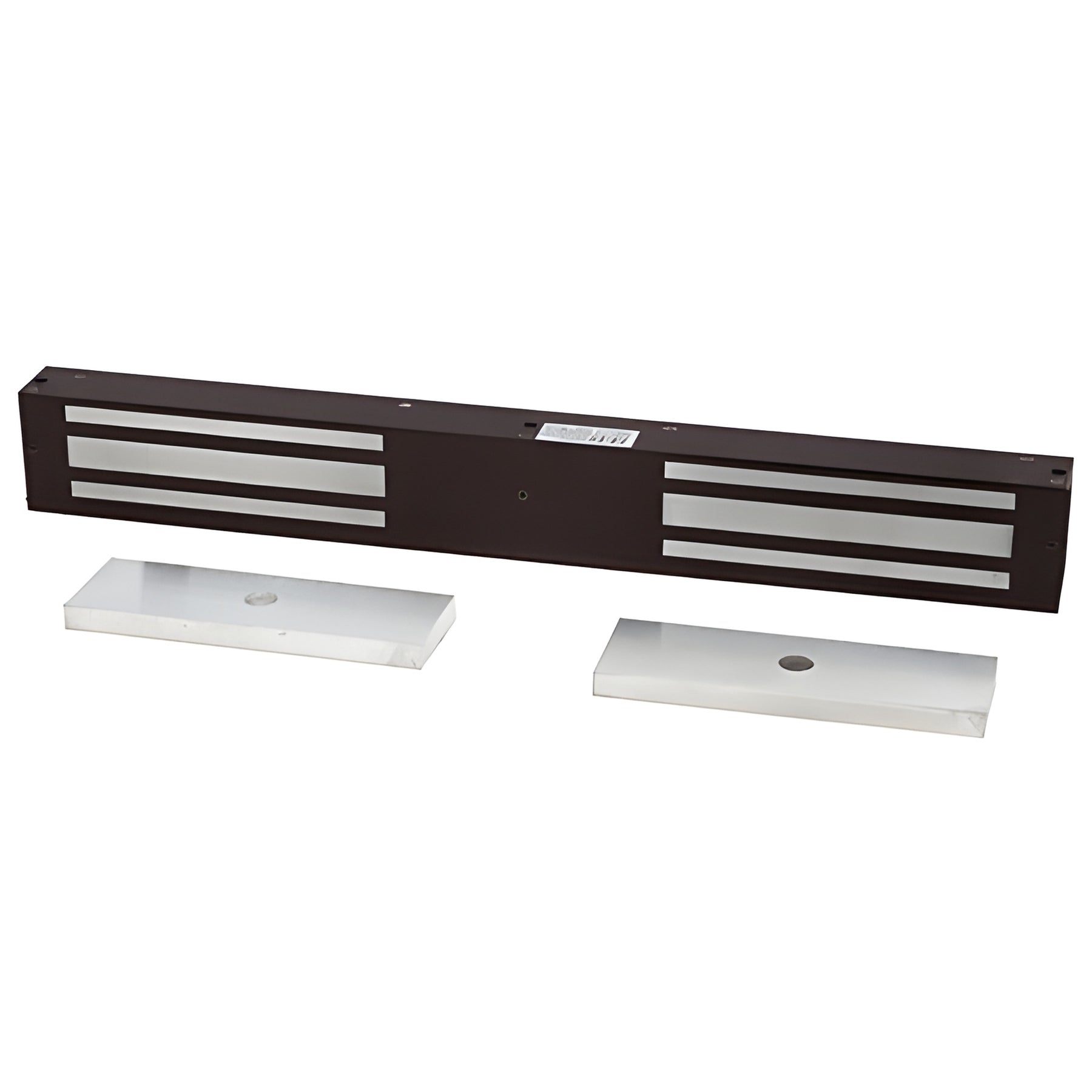

CRL SDC EMLock Double Door Electromagnetic Lock 1650 lb Dark Bronze
CRL SDC EMLock Double Door Electromagnetic Lock 1650 lb Dark Bronze
Regular price
$1,914.34 CAD
Regular price
Sale price
$1,914.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SDC1512DU
Shipping Weight: 21.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 21.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Depth
1-9/16
Body Height
2-3/4
Body Length
22
Brand
SDC
Category
EMLock (R)
Certification
ANSI BHMA Grade One Compliant
Finish/Color
Dark Bronze
Function
Magnetic Door Lock
Handing
Non Handed
Input
12 24 Volts DC Automatic Selection
Series
1500
Strike Opening Height
2.75
Strike Opening Width
22
Type
Electromagnetic Lock
UL Listed
Yes
Overview
- SKU: SDC1512DU
- ANSI/BHMA Grade 1 compliant
- Fully automatic 12/24V DC selection (requires filtered power supply)
- 1650 lbs. (748 kg) holding force
- Field-upgradeable internal components without removing lock from frame
- Anodized aluminum or dark bronze anodized finish — epoxy-less, finished on all sides
- UL Listed
- Limited lifetime warranty
These CRL SDC® EMLock® 1500 Series Electromagnetic Locks (SDC1512DU) are designed for high-security commercial and glass door applications. Engineered for top jamb and glass door kits, the 1500 Series delivers a tested 1650 lb. holding force, an epoxy-less anodized finish for a refined appearance, and an interlocking EZ-mount assembly that frees hands for wiring and installation. The lock is UL Listed, ANSI Grade 1 compliant, and field-upgradeable so upgrades or repairs can be made without removing the unit from the frame. Includes self-drilling/tapping sheet metal screws and 10-32 machine screws.
SPECIFICATIONS:
Holding Force: 1650 lbs. (748 kg)
Input Voltage: 12/24 Volts DC - Automatic Selection (Requires Filtered Power Supply)
Double EMLock®
Current Draw: 1340 mA @ 12V DC, 700 mA @ 24V DC
Dimensions: L = 22" (559 mm) x H = 2-3/4" (70 mm) x W = 1-9/16" (40 mm)
Weight: 26.5 lbs. (12 kg)
For secure access control with easy field upgrades, choose the SDC1512DU EMLock® 1500 Series — contact CRL or add to cart now.
