CRL Securitron Magnalock Electromagnetic Mortise Door Lock
CRL Securitron Magnalock Electromagnetic Mortise Door Lock
Regular price
$2,182.80 CAD
Regular price
Sale price
$2,182.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SAM1224
Shipping Weight: 6.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

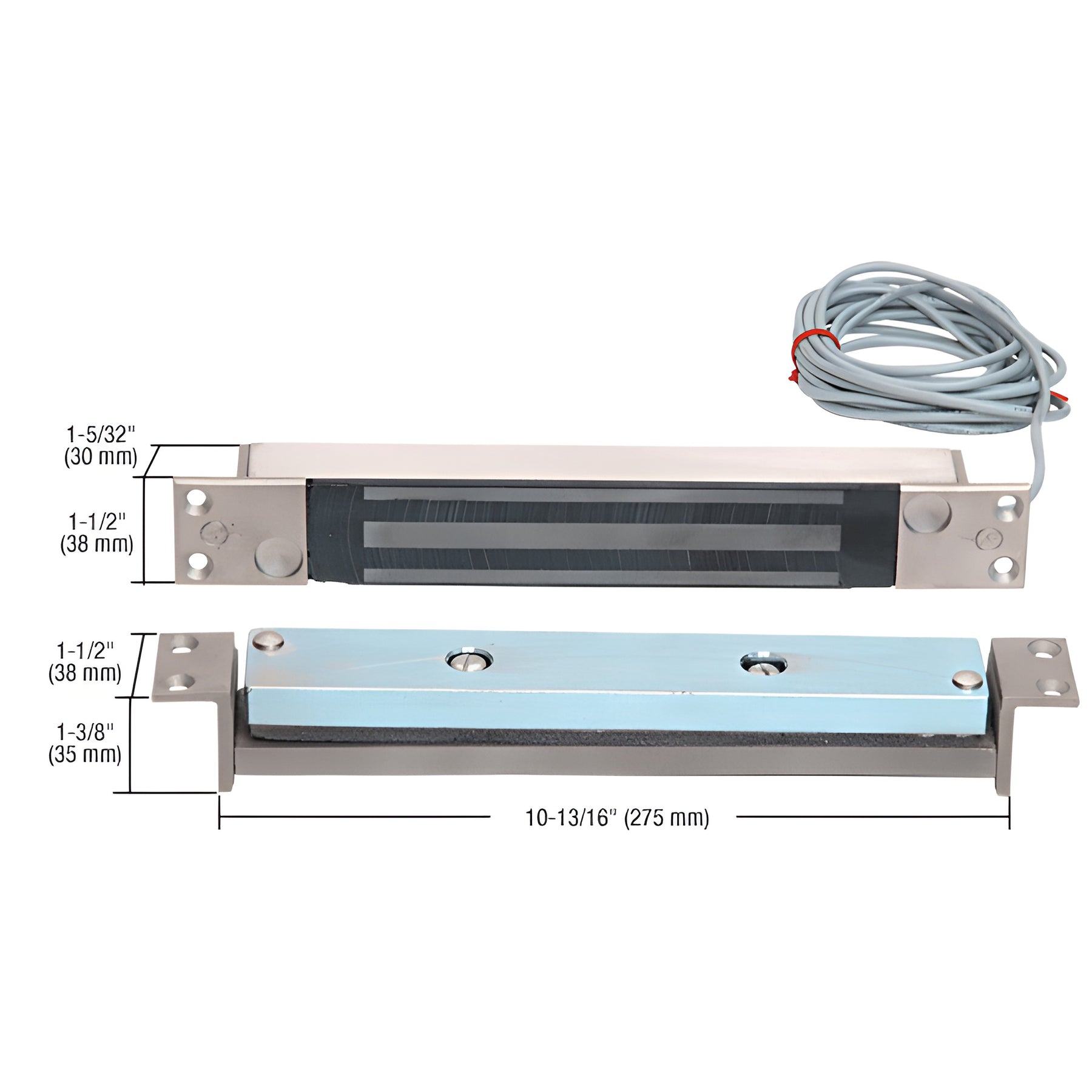

Body Height
1 3/8
Body Length
10 7/8
Body Width
1 1/2
Current Draw
350mA @ 12V DC, 175mA @ 24V DC
Holding Force
1200
Input
12/24 Volts DC
Overview
- Fully automatic 12/24V DC selection
- 1200 lb shear holding force (544 kg)
- MagnaCare lifetime replacement warranty
This Securitron® electromagnetic mortise shear aligning Magnalock® (SKU: SAM1224) is engineered for high-security applications on single and double metal doors and on glass doors with top rails and metal frames. The compact mortised design conceals the lock in the frame and the strike in the door rail for a clean appearance. Ideal for swing-through and sliding doors, this concealed electromagnetic mortise shear lock delivers reliable holding force and a low-profile look.
SPECIFICATIONS:
Holding Force: 1200 Lbs. (544 kg)
Input Voltage: 12/24 VDC (automatic selection)
Current Draw: 350 mA @ 12 VDC, 175 mA @ 24 VDC
PRODUCT WARNING:
Requires a filtered, regulated 12–24 VDC power supply, or a filtered unregulated supply (transformer with rectifier). Voltage selection is automatic between 12–24 VDC.
For secure, concealed magnetic locking on metal and glass doors, choose the Securitron Magnalock SAM1224 — contact us to order.
