CRL 24in Semi-Gloss Black 4-Way Partition Post - Restroom Hardware
CRL 24in Semi-Gloss Black 4-Way Partition Post - Restroom Hardware
Regular price
$165.35 CAD
Regular price
Sale price
$165.35 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990BL244W
Shipping Weight: 2.004 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.004 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
4 Way
Finish/Color
Semi-Gloss Black (PSP290005)
Glazing Thickness
3/16 in. & 1/4 in. (5 mm & 6 mm)
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- Stock post sizes, RED-E to ship
- Standard heights: 12", 18", and 24" (305, 457, and 610 mm) — available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, and 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Top cap and mounting base included; mounting screws supplied
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass

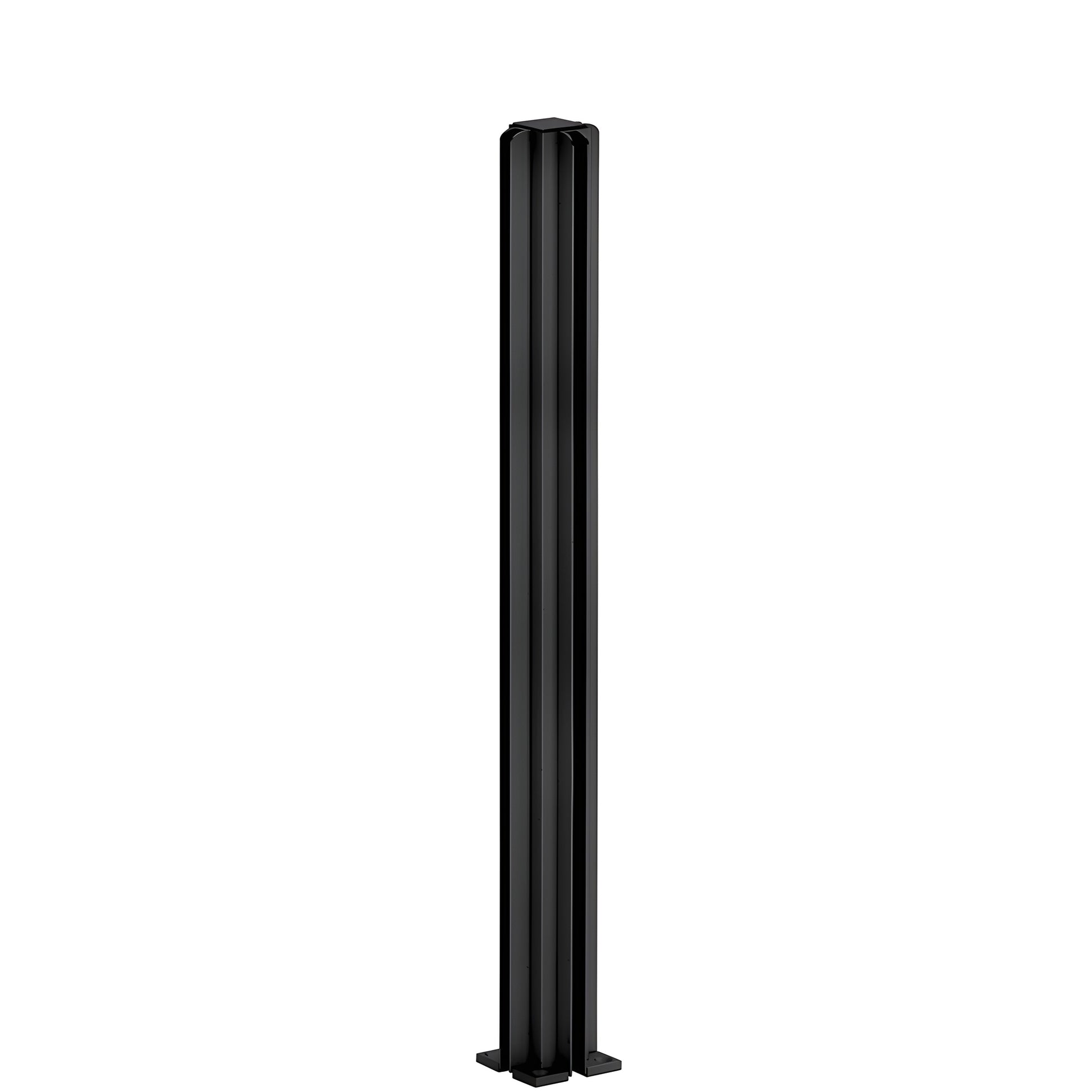

CRL Design Series partition posts (SKU: D990BL244W) are a durable, easy-to-install solution for glass partitions in banks, offices, restaurants, and other commercial interiors. Their slim profile and full-length glazing channels secure monolithic tempered glass quickly using Cat. No. 33SC clear silicone. Fully assembled posts include one attached top cap, one attached mounting base, and four wood screws for mounting. Custom 135° posts are available in select finishes and sizes.

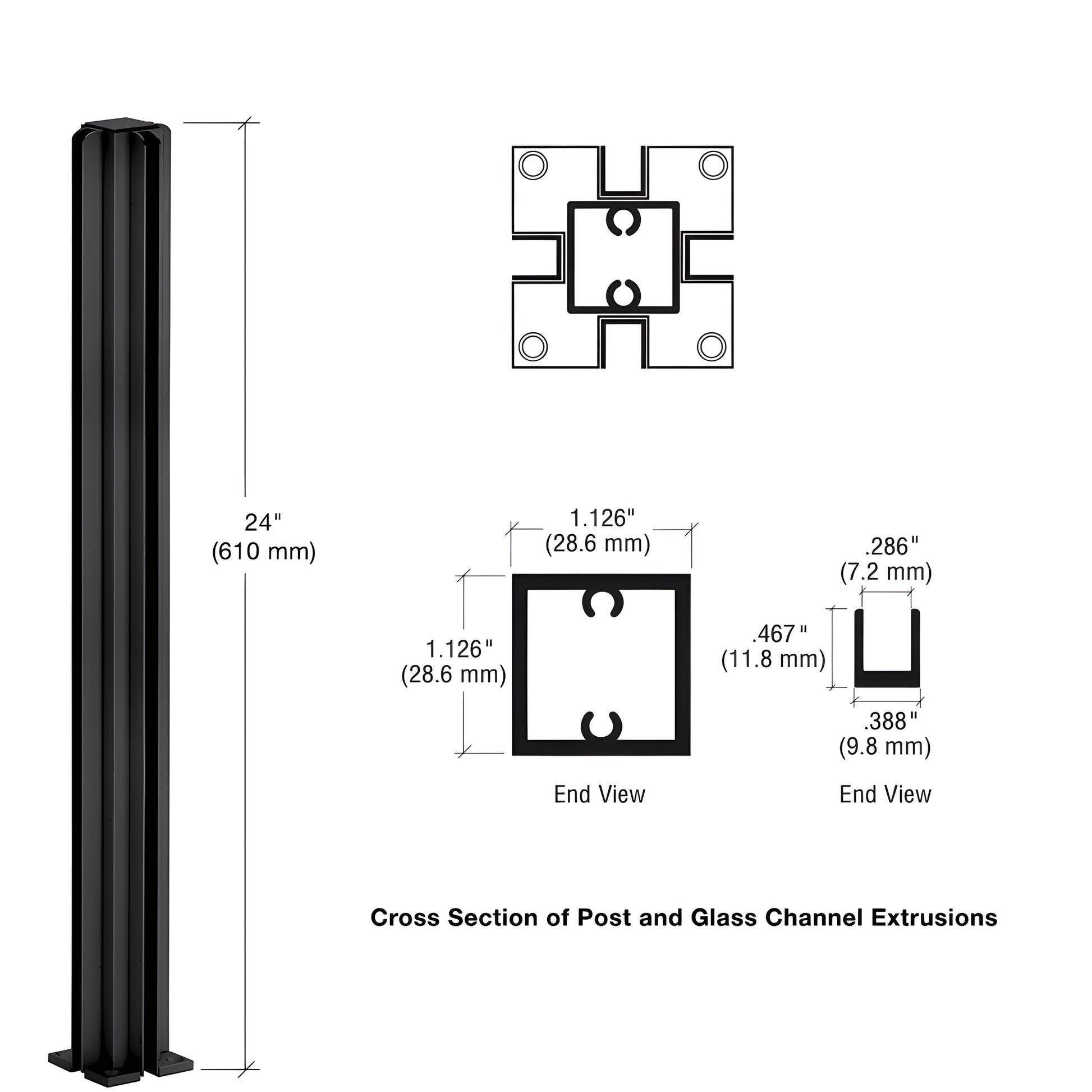

Each Design Series post measures 1-1/8" (28.6 mm) square. Mounting base plates measure 2" (51 mm) square. Glazing channels run full length and project 15/32" (12 mm) from the post surface.
You can also build custom partition posts using CRL components to match specific glass partition requirements.
Product note:
Use Cat. No. 33SC Clear Silicone to secure the glass into the glazing channels.
Order CRL Design Series partition posts (D990BL244W) for fast shipping and reliable installation — contact sales to buy now.
