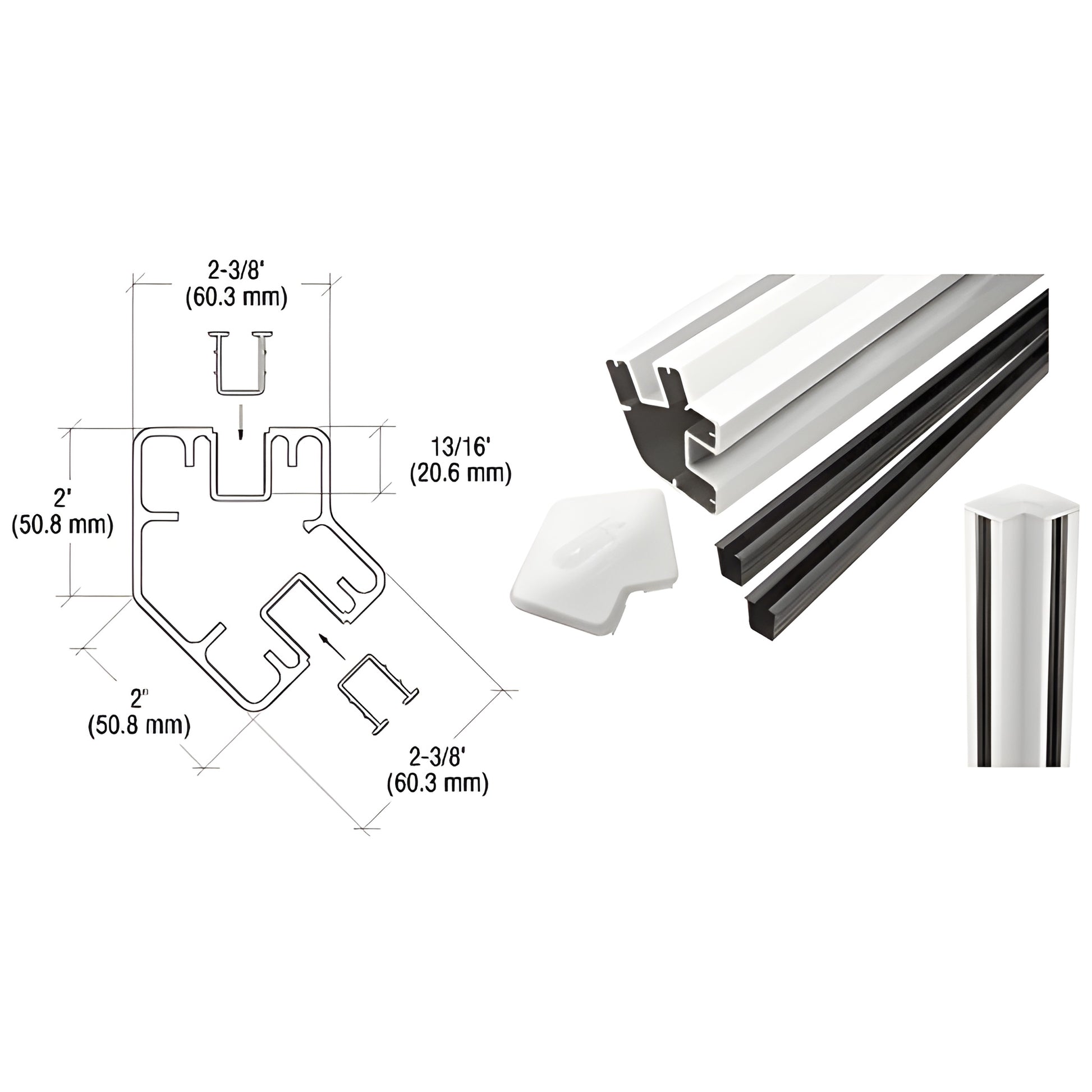

CRL Sky White 36" Long 2" x 2-3/8" Rectangular 135 Degree Post Kit
Item # S365KW
$151.05
CAD
Overview
| SKU | S365KW |
|---|---|
| Sold As | 1 Each |
| Configuration | Corner |
| Degree | 135 |
| Depth | 2-3/8 in. (60 mm) |
| Finish/Color | Sky White |
| Glazing Thickness - Dry Glaze | 1/4 To 3/8 Inch |
| Glazing Thickness - Wet Glaze | 1/2 Inch |
| Length | 36 in. (914 mm) |
| Material | Aluminum |
| Profile | Rectangular |
| Width | 2 in. (51 mm) |
Description
- Standard Kits Include Post, Top Cap, and Vinyl
- Available in Several Attractive Colors
- Custom Colors Available Upon Request
- Accommodates 1/4" to 3/8" (6 to 10 mm) Glass Dry Glazed with Vinyl
- Accommodates 1/2" (12 mm) Glass Wet Glazed
These CRL Kits are for fabricating posts used to join two panels at 135 degrees. They can accommodate 1/4" to 3/8" (6 to 10 mm) panels when dry glazed with vinyl, and 1/2" (12 mm) panels when wet glazed. Come in several colors to choose from.
NOTE: Maximum Post Spacing is 72" (1.83 m) on center. Maximum square footage should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.
