CRL Sky White AWS 36in 180° Glass Railing End Post Kit 2x2-5/8in
CRL Sky White AWS 36in 180° Glass Railing End Post Kit 2x2-5/8in
Regular price
$165.09 CAD
Regular price
Sale price
$165.09 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S36EKW
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
End
Degree
180
Depth
2-5/8 in. (67 mm)
Finish/Color
Sky White
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
36 in. (914 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)
Overview
- Standard Kits Include Post, Top Cap, and Vinyl
- Seven Standard Colors, Plus Unfinished Chromate
- Custom Colors Available Upon Request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass wet glazed

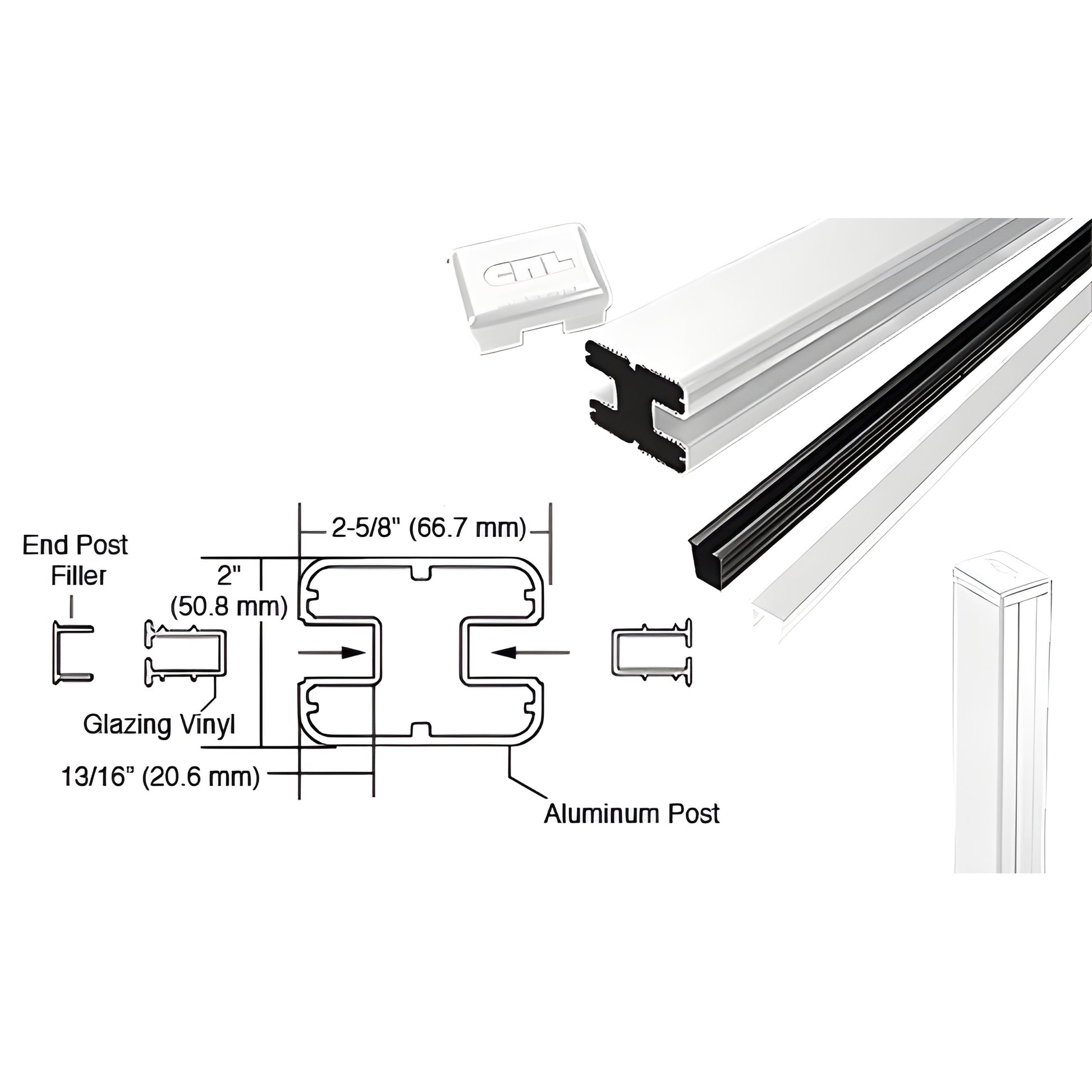

CRL Kit S36EKW — end post kit for glass railing systems and balustrades. Use these posts to finish the end of a barrier; designed to accept 1/4"–3/8" (6–10 mm) glass dry glazed with vinyl or 1/2" (12 mm) glass wet glazed. Available in seven standard colors plus unfinished chromate, with custom color matching on request for painted glass railing end posts.
Installation Limits: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Need a specific finish or technical detail for your glass railing project? Contact CRL Customer Service to confirm availability and lead time — order S36EKW today.
Specifications
CAD Drawings - pdf
