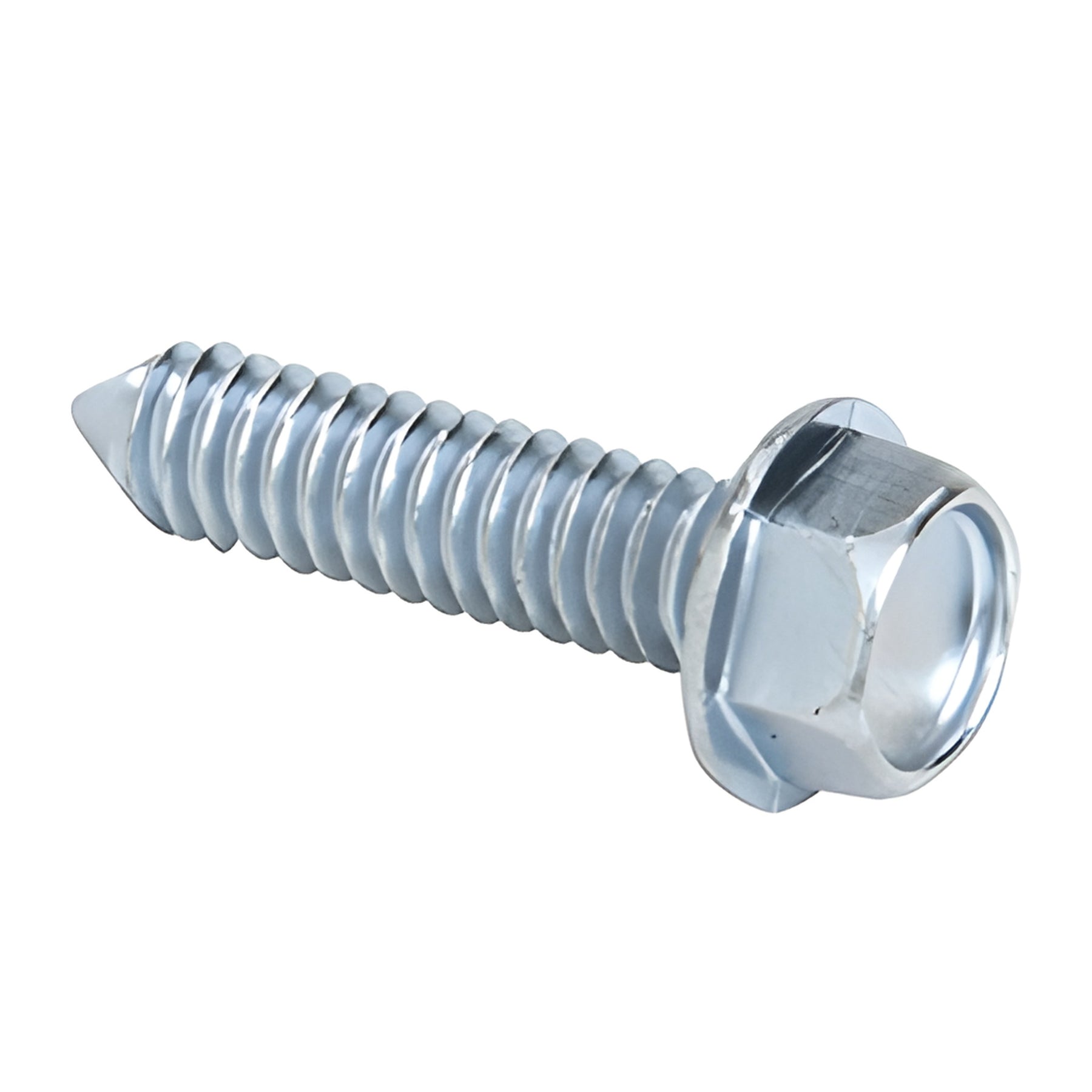

CRL-U.S. Aluminum 1/4"-20 x 1" HWH Pressure Bar Screw - 200/Pk
Item # MS222000200
$43.06
CAD
Overview
| SKU | MS222000200 |
|---|---|
| Sold As | 1 Pack |
| Finish/Color | Mill |
Description
- Hardware for our Extruded Aluminum Sections for Architectural Systems
- Use for Pressure Bar Attachment
- 1/4"-20 x 1" (25 mm) Hex Washer Head Cap Screw
- Use for Pressure Bar Attachment
CRL-U.S. Aluminum products are made in the U.S.A. to the exacting standards you expect from the leader in aluminum architectural systems. Over the years U.S. Aluminum has created hundreds of custom items to satisfy specific job requirements.
Specifications
Brochures & Literature
Installation Instructions
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
- PDFAAMA Test Report Expiration Statement
- PDFSeries 2200 Curtain Wall AAMA 1503-98 Thermal Performance Test Report No. 03-47252.02 U-Factor 0.69 CRF 62
- PDFSeries 2200 Curtain Wall AAMA 1503-98 Thermal Performance Test Report No. 72682.02-301-46 U-Factor 0.65
- PDFSeries 2200 Curtain Wall CSA-A440 Thermal Performance ATI Test Report No.72682.03-301-46
- PDFSeries 2200 Curtain Wall NFRC 102-2004 Thermal Performance Test Report No. 72682.01-301-46 U-Factor 0.59
- PDFSeries 2200 Curtain Wall NFRC Simulations Report 72681.02-116-45
- PDFSeries 2200 Curtain Wall Report Air Water Structural
- PDFSeries 2202 Curtain Wall AAMA 1503-09 Thermal Performance Test Report No. E6203.02-301-46
- PDFSeries 2202 Curtain Wall NFRC 102-2014 Thermal Performance Test Report No. E6203.01-301-46
Glazing Charts
