CRL
CRL-U.S. Aluminum 250 Clear Anodized Narrow-Stile Door & Geared Hinge
CRL-U.S. Aluminum 250 Clear Anodized Narrow-Stile Door & Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ21811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard panic pull, hanging hardware, concealed vertical‑rod panic hardware, and one cylinder
- Accommodates 1/4" (6 mm) tempered glass (by others); optional 1" (25 mm) tempered insulating unit (IGU) available

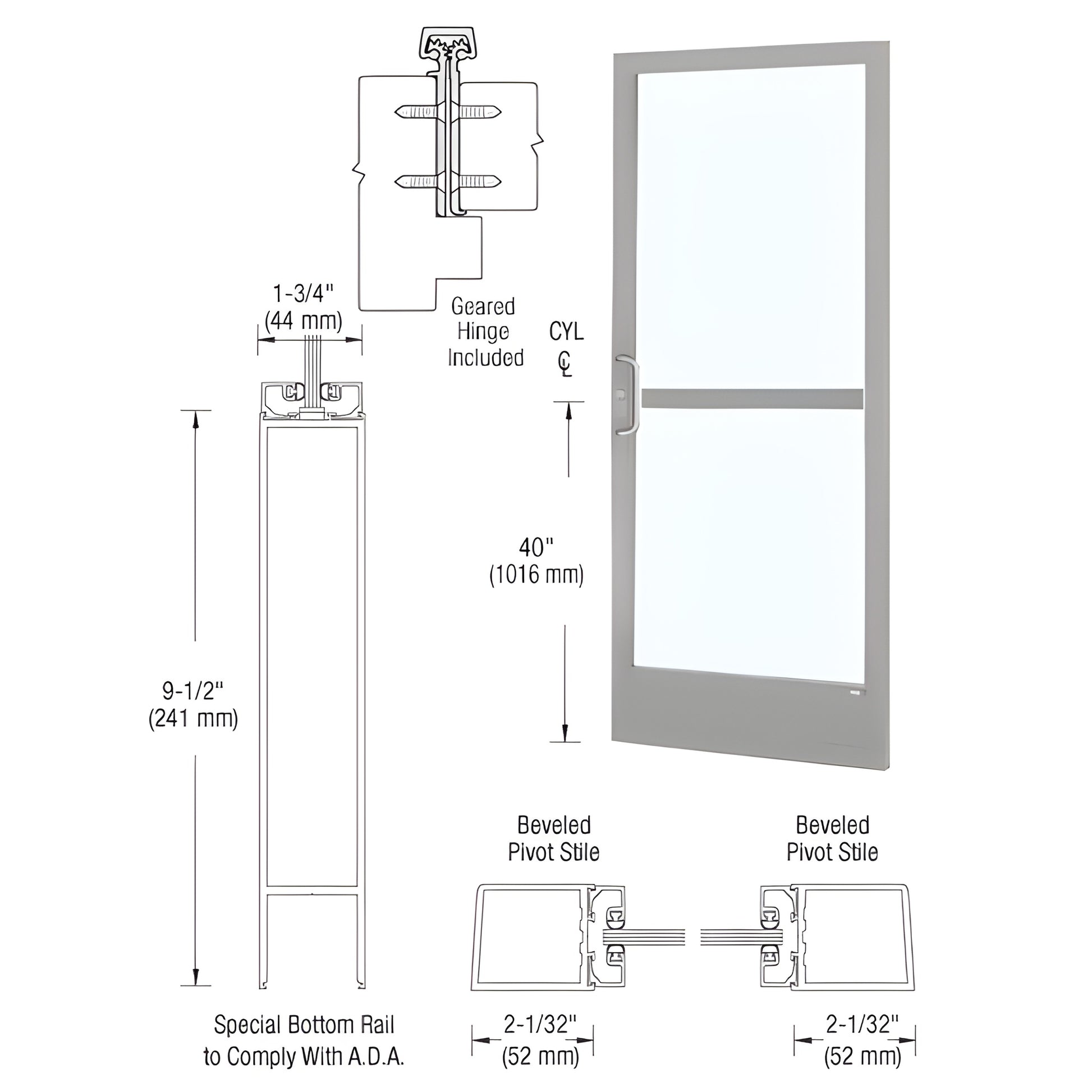

This CRL Custom Narrow Stile Entrance Door (SKU: CZ21811) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Designed for storefront and commercial entrance applications, this narrow‑stile door is ready for gear hinge hardware and a wide range of optional hardware configurations. Glass and glazing are supplied by others; door ships with boxed protruding hardware (handles, pivots, etc.) to prevent transit damage.
Note: Door widths under 36" (914 mm) may not meet ADA inspection requirements. If exact shipping weight is required to complete your order, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
Specifications
BIM Objects - rvt
