CRL-U.S. Aluminum 36x84 Clear Anodized Narrow Stile Butt-Hinge Door

CRL-U.S. Aluminum 36x84 Clear Anodized Narrow Stile Butt-Hinge Door

Shipping calculated at checkout.
Quantity
Item# CZ21511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • 9-1/2" (241 mm) bottom rail installed for A.D.A. compliance
  • Custom fabricated to accept optional hardware applications
  • Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
  • Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

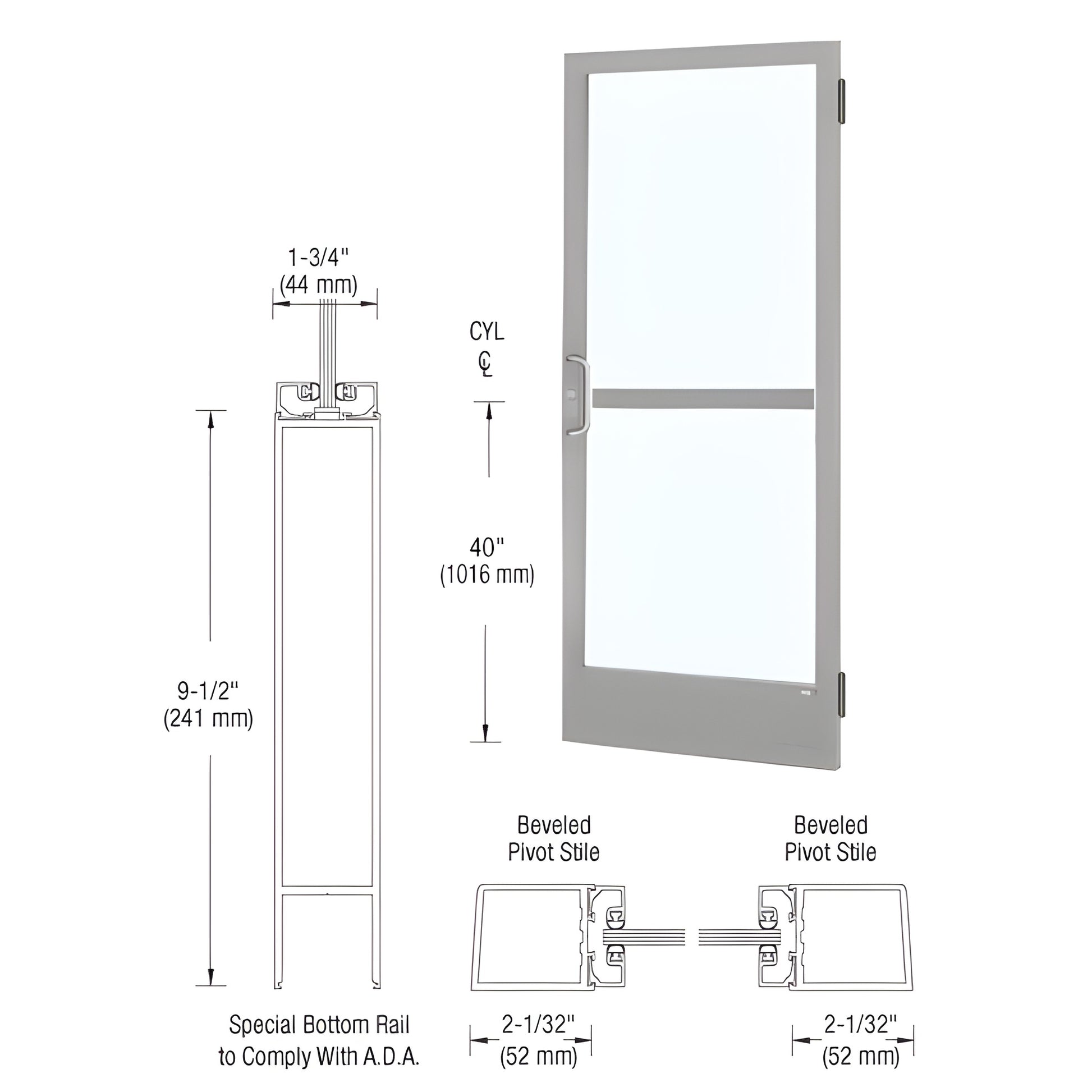

This CRL Custom Narrow Stile Entrance Door (SKU: CZ21511) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed as a narrow stile entrance door for commercial storefronts, it ships with stiles prepped for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass sold separately). The door is custom fabricated to accept a wide range of optional hardware—ideal for projects requiring concealed vertical rod panic hardware or specialized panic and exit devices.

Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost is required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor and video card settings.


For pricing, lead times, or to request a quote for SKU CZ21511, contact CRL Customer Service or add to your cart to begin checkout.

Specifications
