CRL-U.S. Aluminum 400 KYNAR® Entrance Door - Med Stile, Geared Hinge
CRL-U.S. Aluminum 400 KYNAR® Entrance Door - Med Stile, Geared Hinge
Regular price
$1,516.75 CAD
Regular price
Sale price
$1,516.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC41871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 6-1/2" (165 mm) bottom rail; 9-1/4" (235 mm) bottom rail available to meet A.D.A. and Title 21 requirements
- Custom fabricated to accept a wide range of optional hardware applications (ready for field or factory hardware installation)

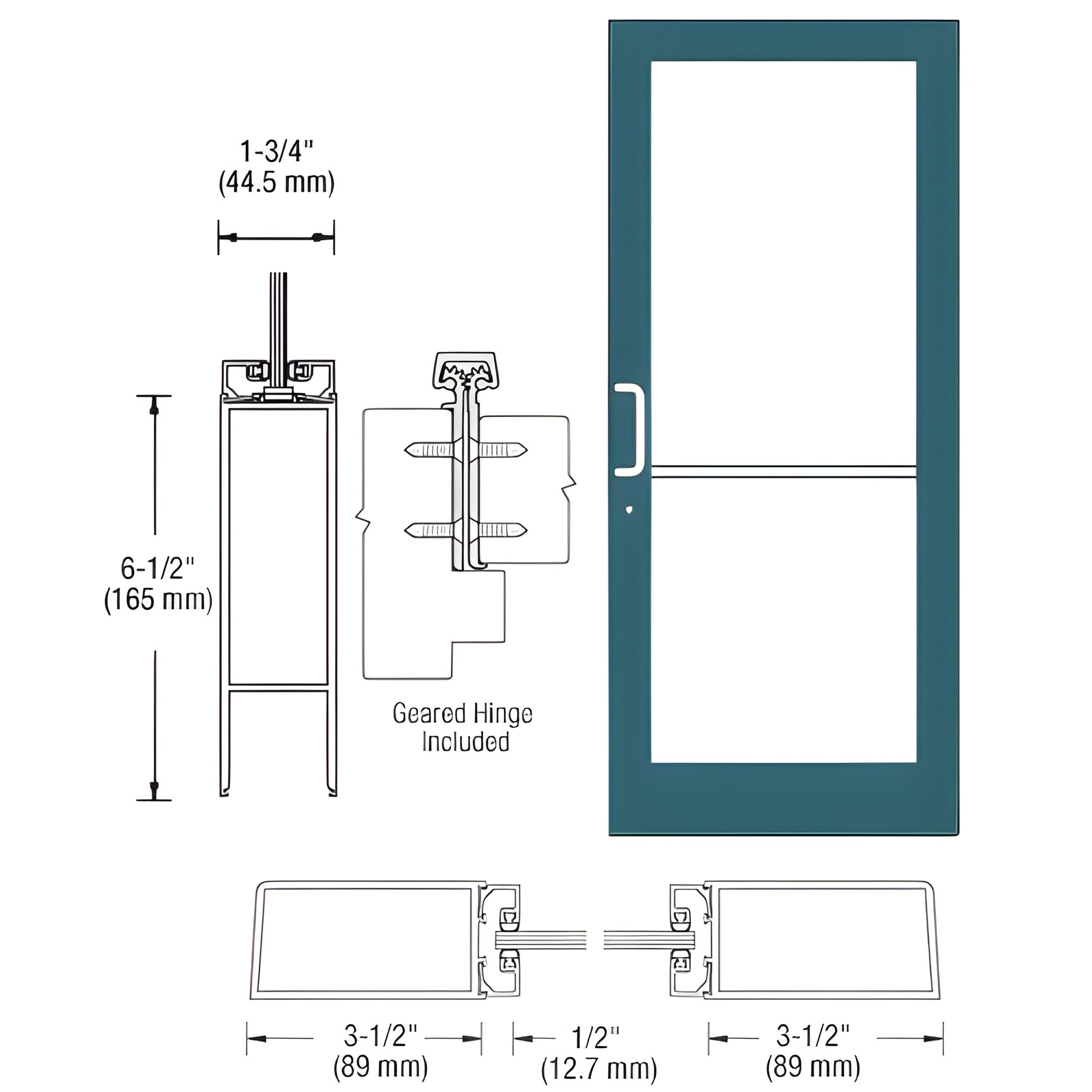

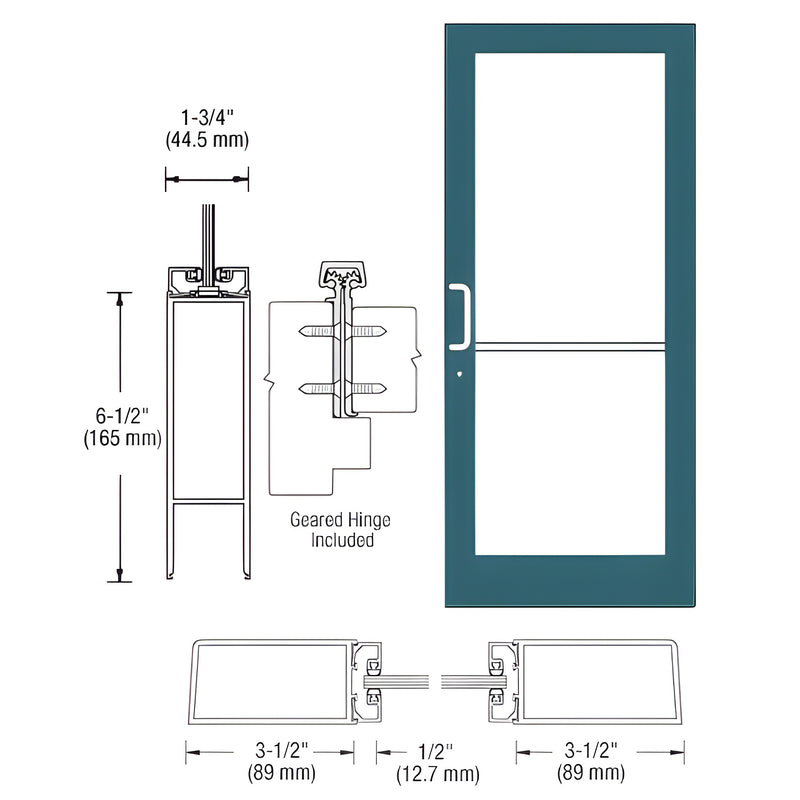

This Custom Medium Stile Entrance Door (SKU: DC41871) features 3-1/2" (89 mm) stiles and a 3-3/16" (81 mm) top rail. Standard design includes stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (provided by others). Protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection criteria.
Durable, customizable commercial glass entrance solution—order or request a quote for SKU DC41871 today.
Specifications
BIM Objects - rvt
