CRL-U.S. Aluminum S400 Medium Geared Hinge for Surface-Mount Closer

• Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
• 6-1/2" (165 mm) bottom rail; 9-1/4" (235 mm) bottom rail available for A.D.A. and Title 24 compliance
• Custom fabricated to accept a wide range of optional hardware applications

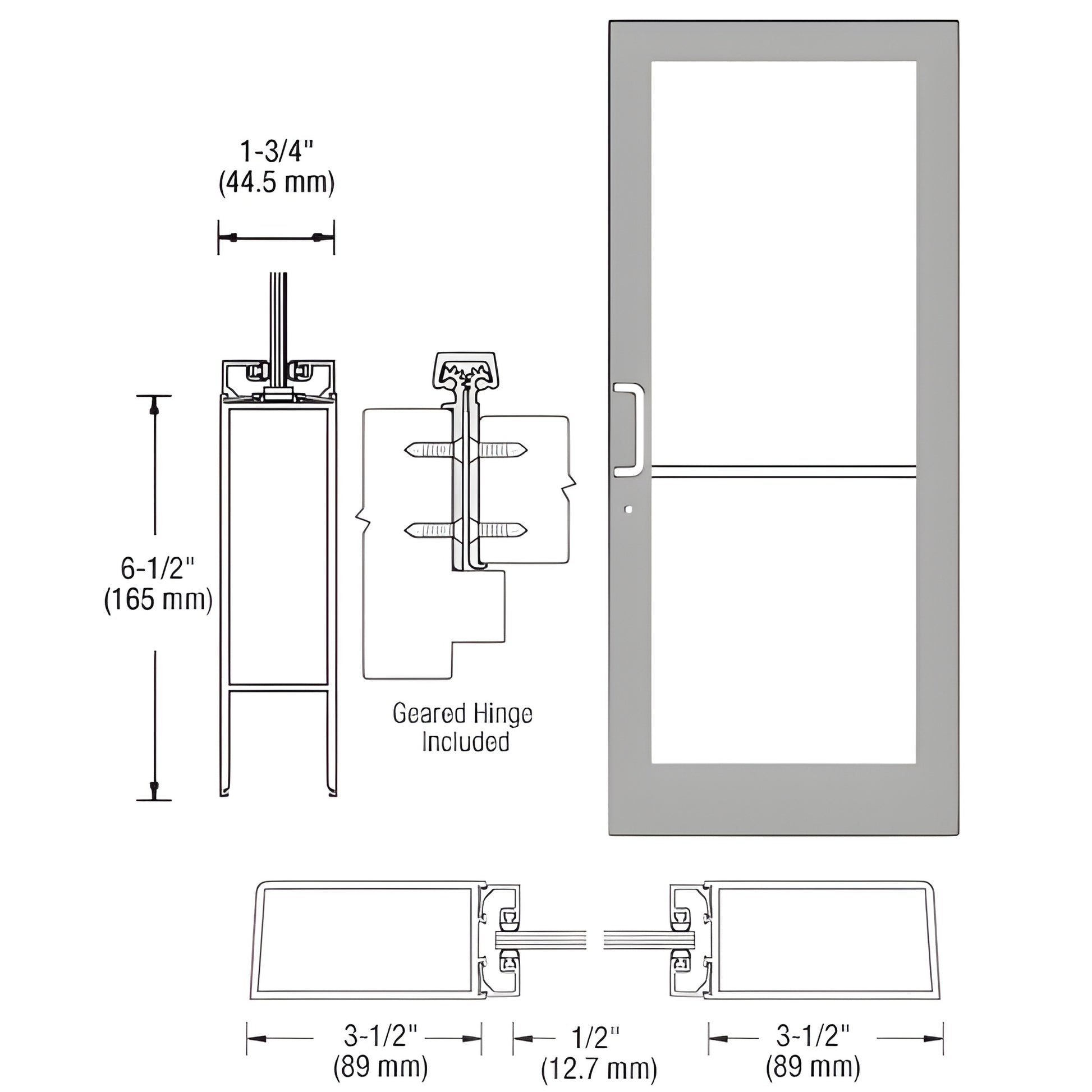

This Custom Medium Stile Entrance Door (SKU: DC41811) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard construction includes stiles prepped for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is designed for custom fabrication to accommodate optional commercial hardware and accessibility upgrades.

Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on site. Doors narrower than 36" (914 mm) may not meet A.D.A. inspection requirements.

Why choose this door: Durable medium-stile construction, factory-prepped gear-hinge stiles, and optional ADA-compliant bottom rail make this an ideal commercial glass entrance solution when paired with 1/4" tempered or insulated glass units.

Contact us to confirm specifications or request a quote for SKU DC41811.
