CRL-U.S. Aluminum 550 White KYNAR Wide Stile Geared-Hinge Doors
CRL-U.S. Aluminum 550 White KYNAR Wide Stile Geared-Hinge Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE52952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
- 7-1/2" (191 mm) bottom rail
- Custom fabricated to accept optional hardware applications

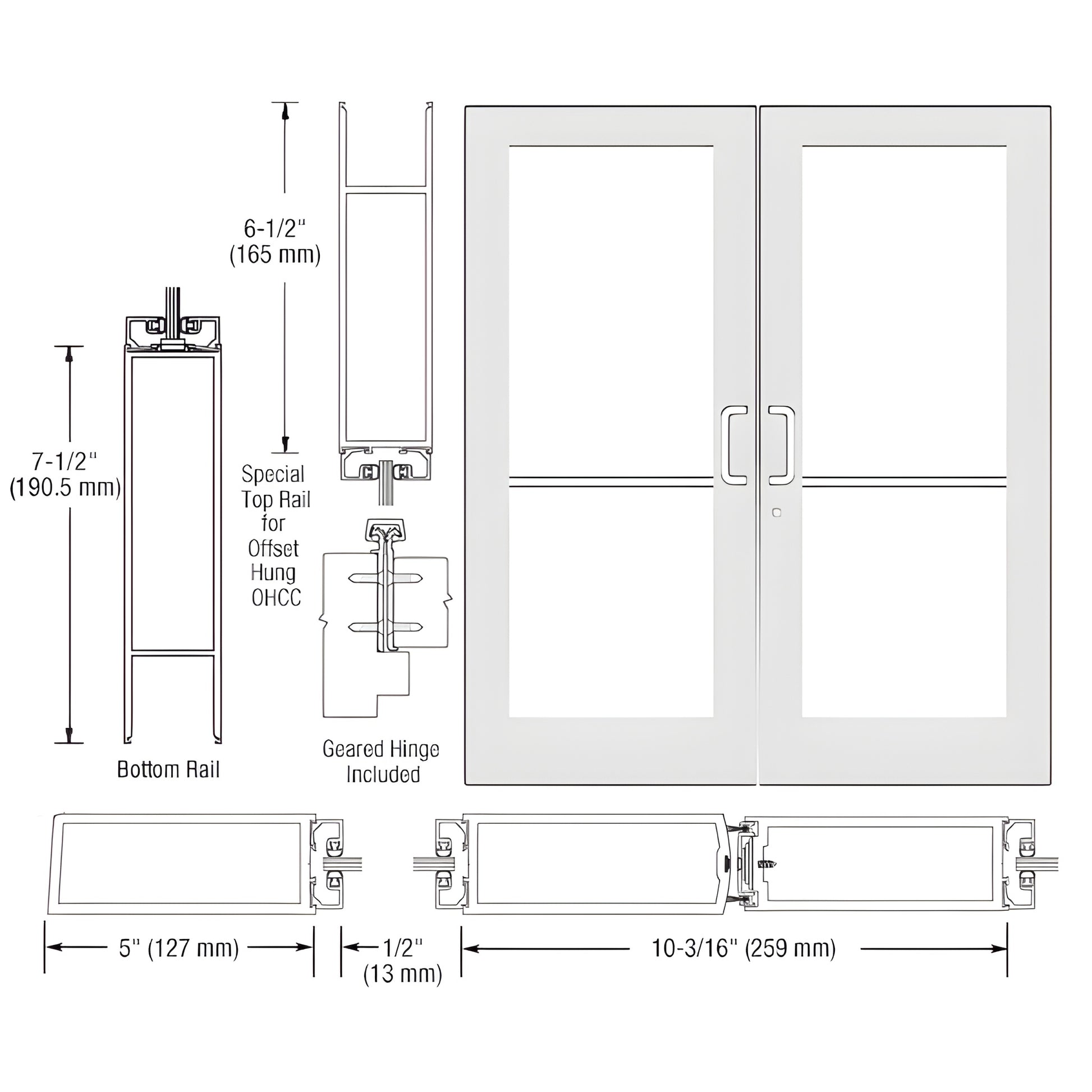

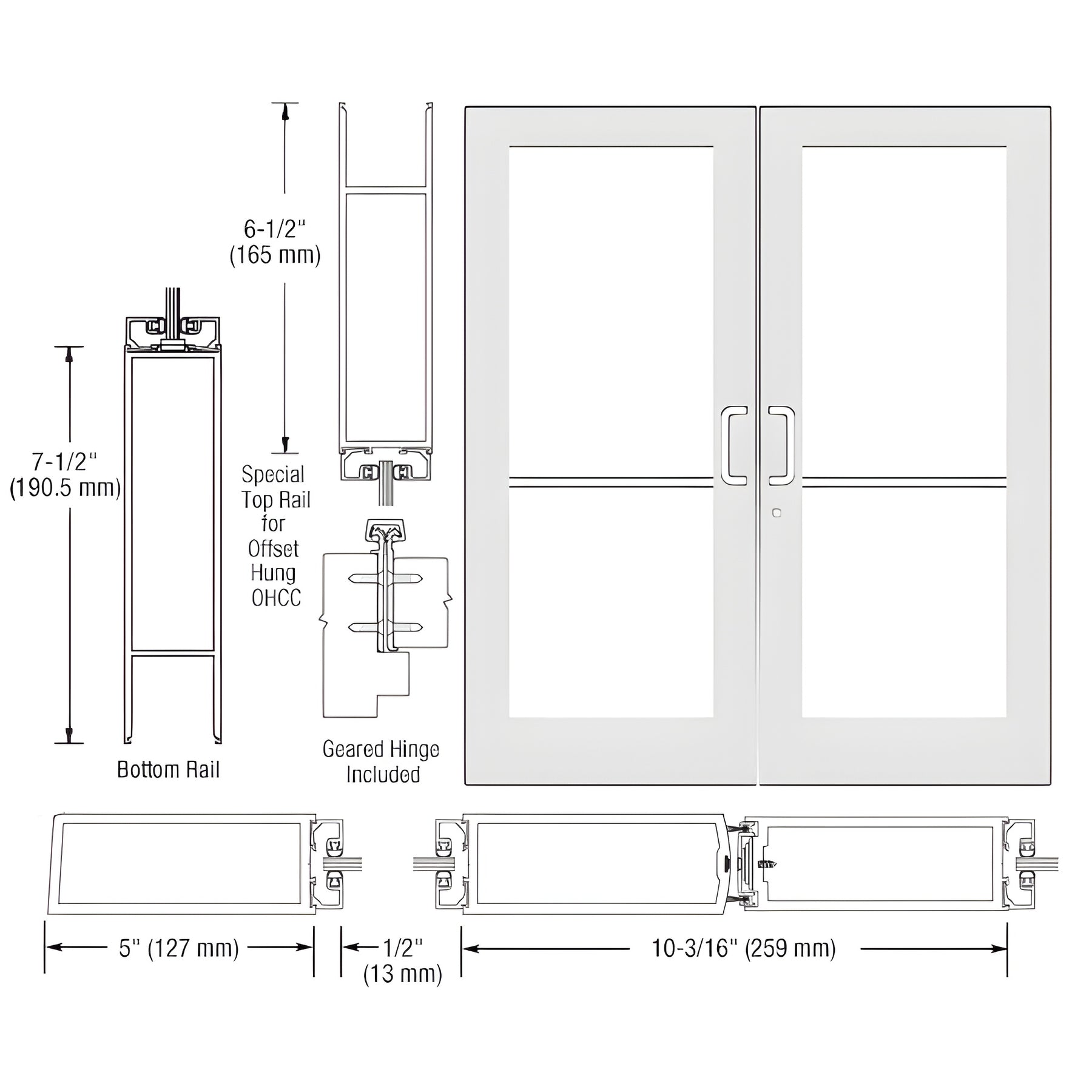

This Custom Wide Stile Entrance Door (SKU: HE52952) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard design includes stiles prepared for Offset Pivot hardware and glass stops for 1/4" (6 mm) tempered glass. Built for custom fabrication to accept a wide range of optional hardware applications and accessories, this door is ideal for commercial and architectural entrances requiring tempered glass compatibility and offset pivot installation.
Customer-installed protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage—install on site.
Order SKU HE52952 or contact CRL for pricing and lead times.
Specifications
BIM Objects - rvt
