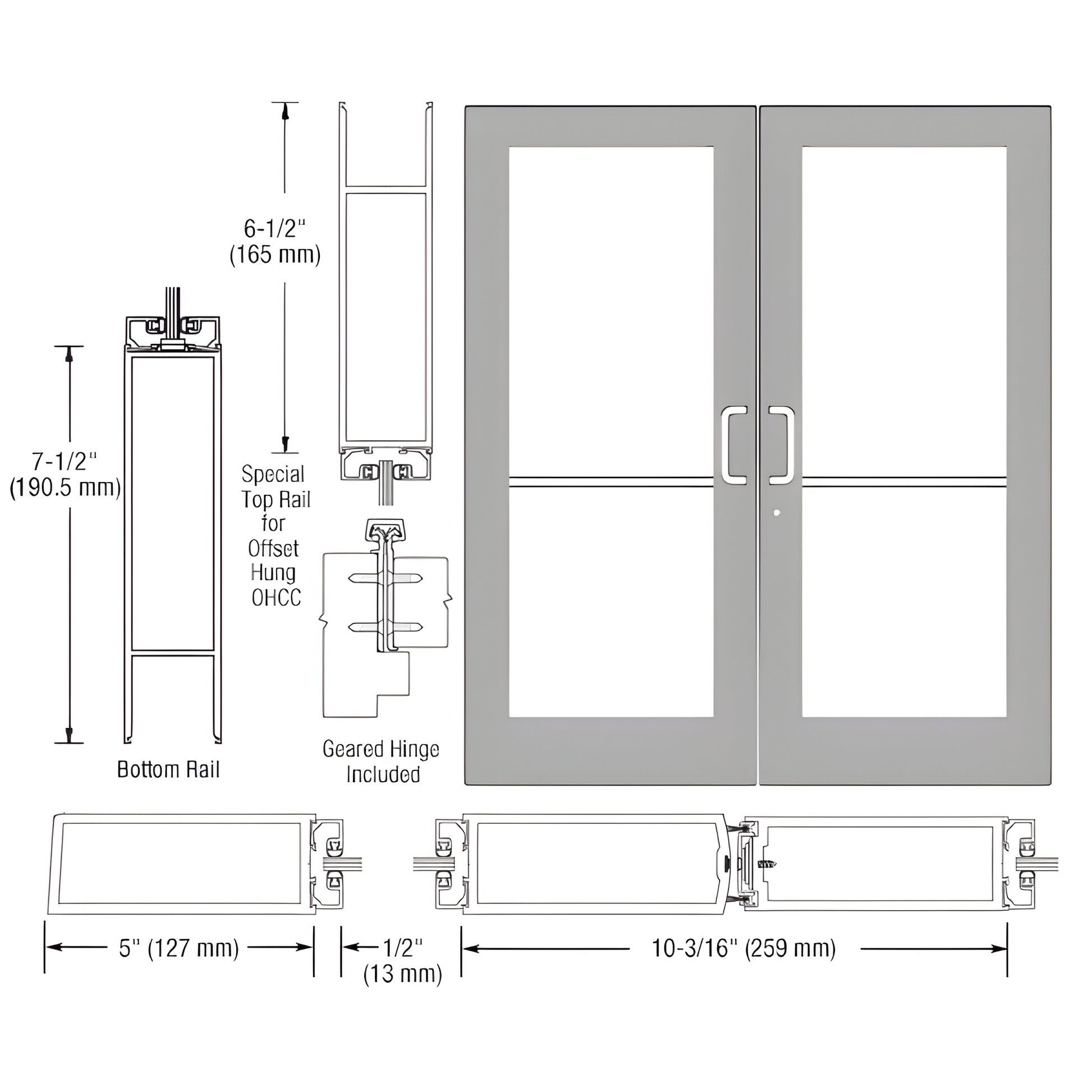

• Custom Wide Stile Entrance Door HE52911, clear anodized, 5" stiles, 51 2" top rail, 71 2" bottom rail, glass panel
1 1

CRL

CRL-U.S. Aluminum 550 Wide Stile Geared Hinge Pair, Clear Anodized

CRL-U.S. Aluminum 550 Wide Stile Geared Hinge Pair, Clear Anodized

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# HE52911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • 7-1/2" (191 mm) Bottom Rail
  • Custom fabricated to accept optional hardware applications
  • Includes active and inactive leaf with all standard hardware
  • Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)

This Custom Wide Stile Entrance Door (SKU HE52911) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard design includes stiles prepared for Offset Pivot hardware and glass stops for 1/4" (6 mm) tempered glass. Door is supplied ready for custom fabrication to accommodate a wide range of optional commercial entrance and frameless glass door hardware applications.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary with monitor settings.


Order or request a quote for SKU HE52911 to confirm options, hardware compatibility, and shipping details.

Specifications

BIM Objects - rvt
Entrance Series 250 400 550 BIM.rvt
