Most shipping weights are approximate and have not been verified. If you need an exact shipping weight to determine costs, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.
CRL
CRL-U.S. Aluminum 72x84 Clear-Anodized Narrow Stile Gear Hinge Door
CRL-U.S. Aluminum 72x84 Clear-Anodized Narrow Stile Gear Hinge Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ22811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware for commercial doors
- Accepts 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) bottom rail installed for A.D.A. compliance
- Custom fabricated to accept optional hardware applications and specialty commercial storefront fittings

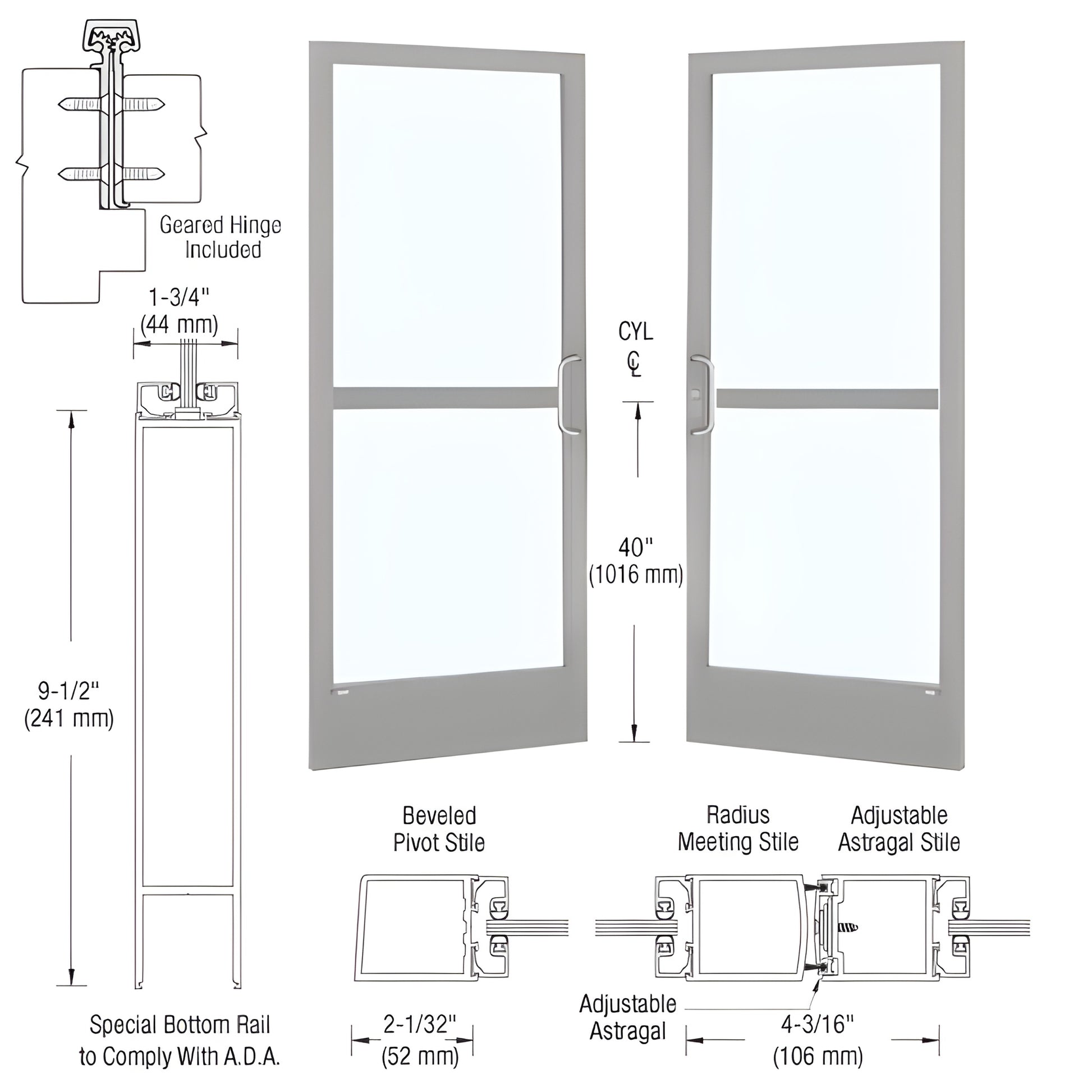

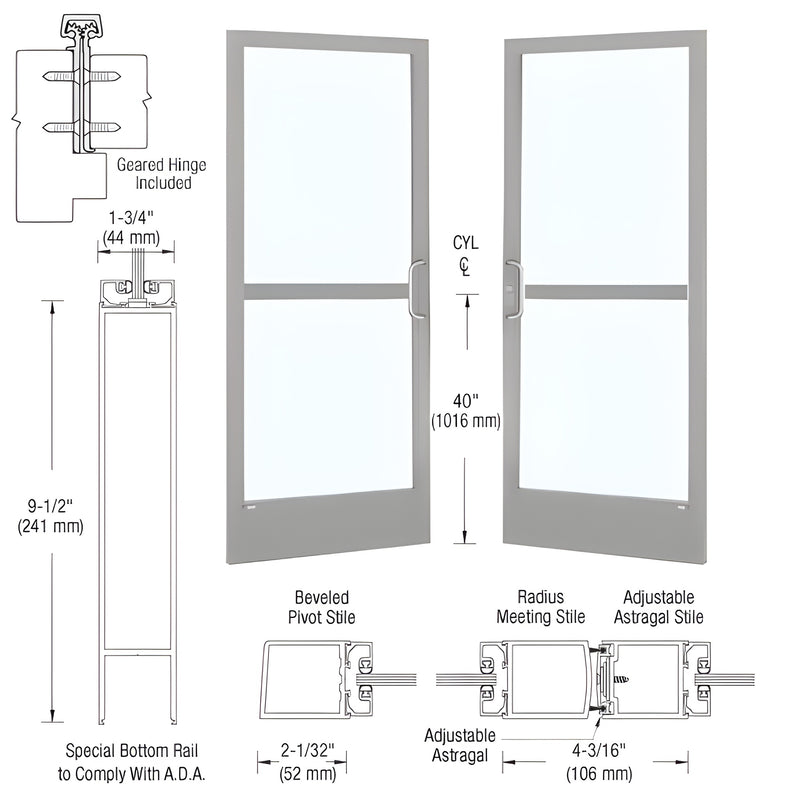

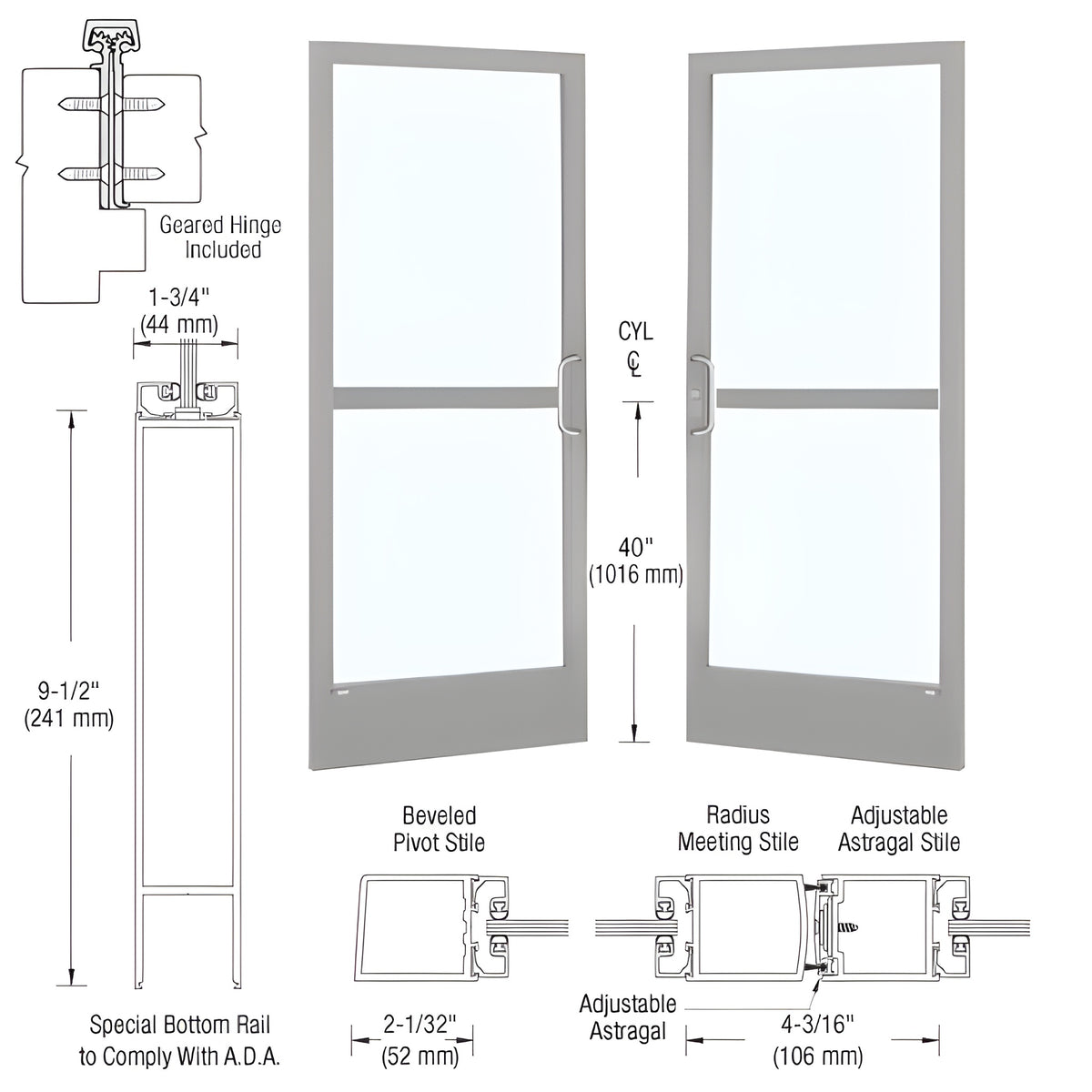

CRL Custom Narrow Stile Entrance Door (SKU CZ22811) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard provisions include stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Built for custom fabrication to accommodate a wide range of optional hardware—ideal for commercial storefronts, ADA-compliant entries, and high-traffic entrance applications.
Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer.
For pricing or to confirm shipping weight for SKU CZ22811, contact CRL Customer Service or order today.
Specifications
BIM Objects - rvt
