CRL-U.S. Aluminum Series 250 72x84 Narrow-Stile Gear Hinge Pair
CRL-U.S. Aluminum Series 250 72x84 Narrow-Stile Gear Hinge Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ22822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware (SKU: CZ22822)
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 9-1/2" (241 mm) ADA-compliant bottom rail
- Custom fabricated to accept a wide range of optional hardware applications

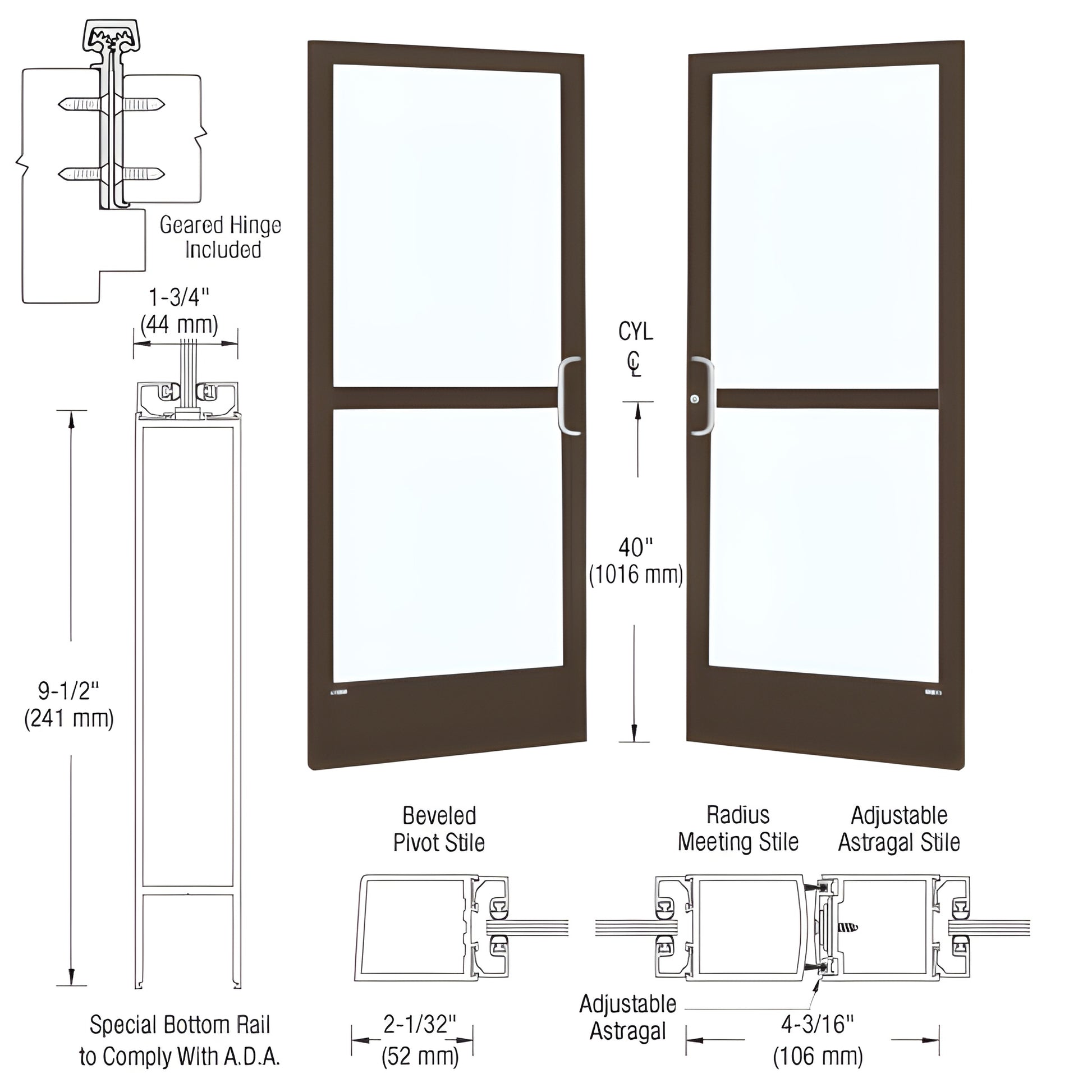

This CRL Custom Narrow Stile Entrance Door (CZ22822) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard design includes stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Engineered for custom fabrication to support concealed vertical rod panic hardware and other optional commercial door hardware.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on site.
Highlights: narrow stile entrance door for commercial applications, ADA-compliant bottom rail, compatible with concealed vertical rod panic hardware, accepts 1/4" tempered glass or 1" insulating units. Contact CRL for custom hardware options and ordering information.
Ready to specify? Contact CRL Customer Service or request a quote for SKU CZ22822 today.
Specifications
BIM Objects - rvt
