CRL-U.S. Aluminum Custom KYNAR® Paint Custom Pair 72" x 84" Series 250 Narrow Stile Gear Hinge Entrance Door for OHCC

Product Details

• 9-1/2" (241 mm) Bottom Rail is Installed to Comply with A.D.A.
• Custom Fabricated to Accept Optional Hardware Applications
• Includes Active and Inactive Leaf with All Standard Concealed Vertical Rod Panic Hardware
• Accommodates 1/4" (6 mm) Tempered Glass with the Option for 1" (25 mm) Tempered Insulating Unit (Glass Not Included)

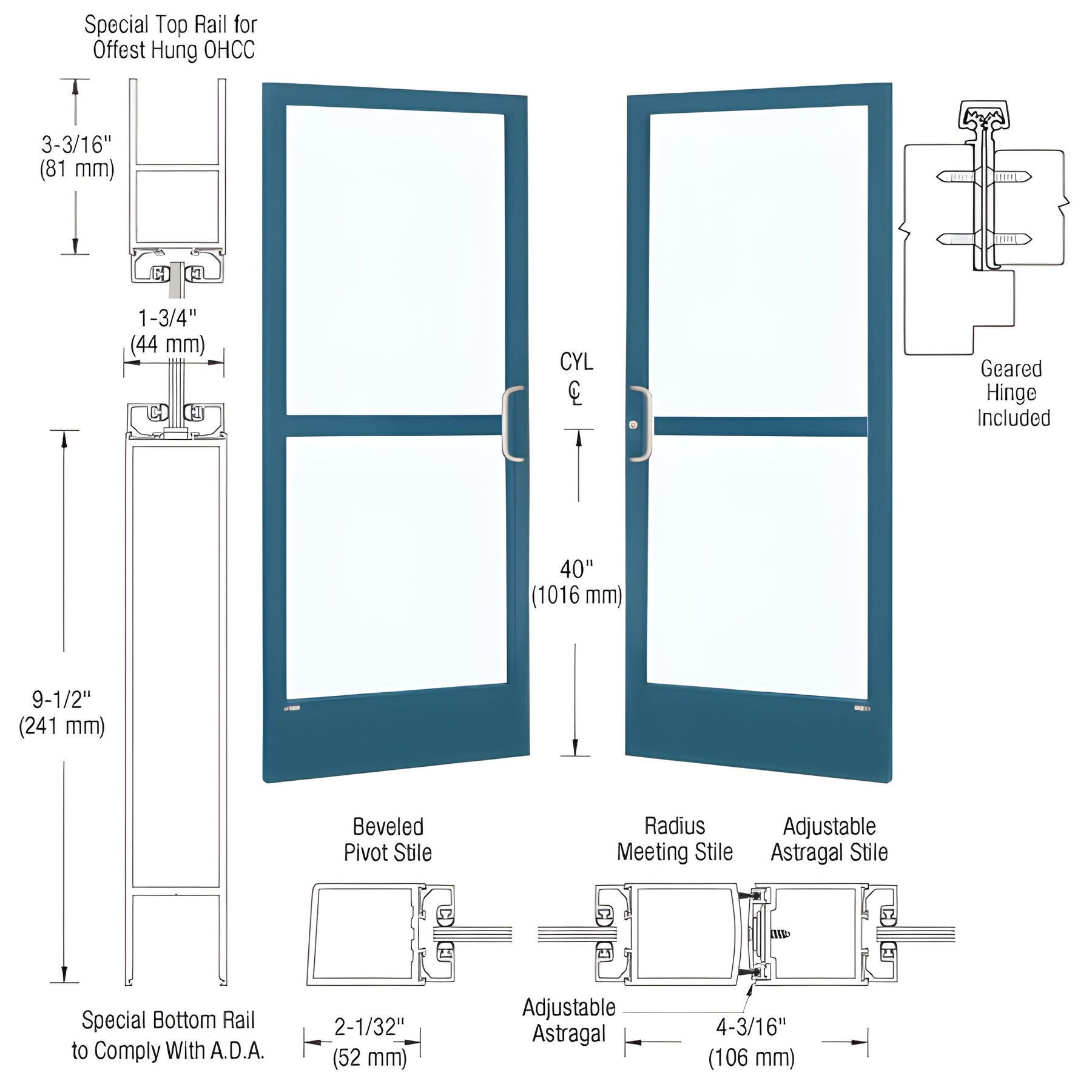

This CRL Custom Narrow Stile Entrance Door is built with 2" (51 mm) Stiles, 3-3/16" (81 mm) Top Rail, and 9-1/2" (241 mm) Bottom Rail. Standard features include stiles for Gear Hinge hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.

Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit.
