CRL-U.S. Aluminum Series 400 Medium Stile Door, KYNAR, Geared Hinge
CRL-U.S. Aluminum Series 400 Medium Stile Door, KYNAR, Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CR41871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 9-1/2" (241 mm) Bottom Rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard panic pull, hanging hardware, rim panic hardware, and one cylinder
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit supported (glass not included)

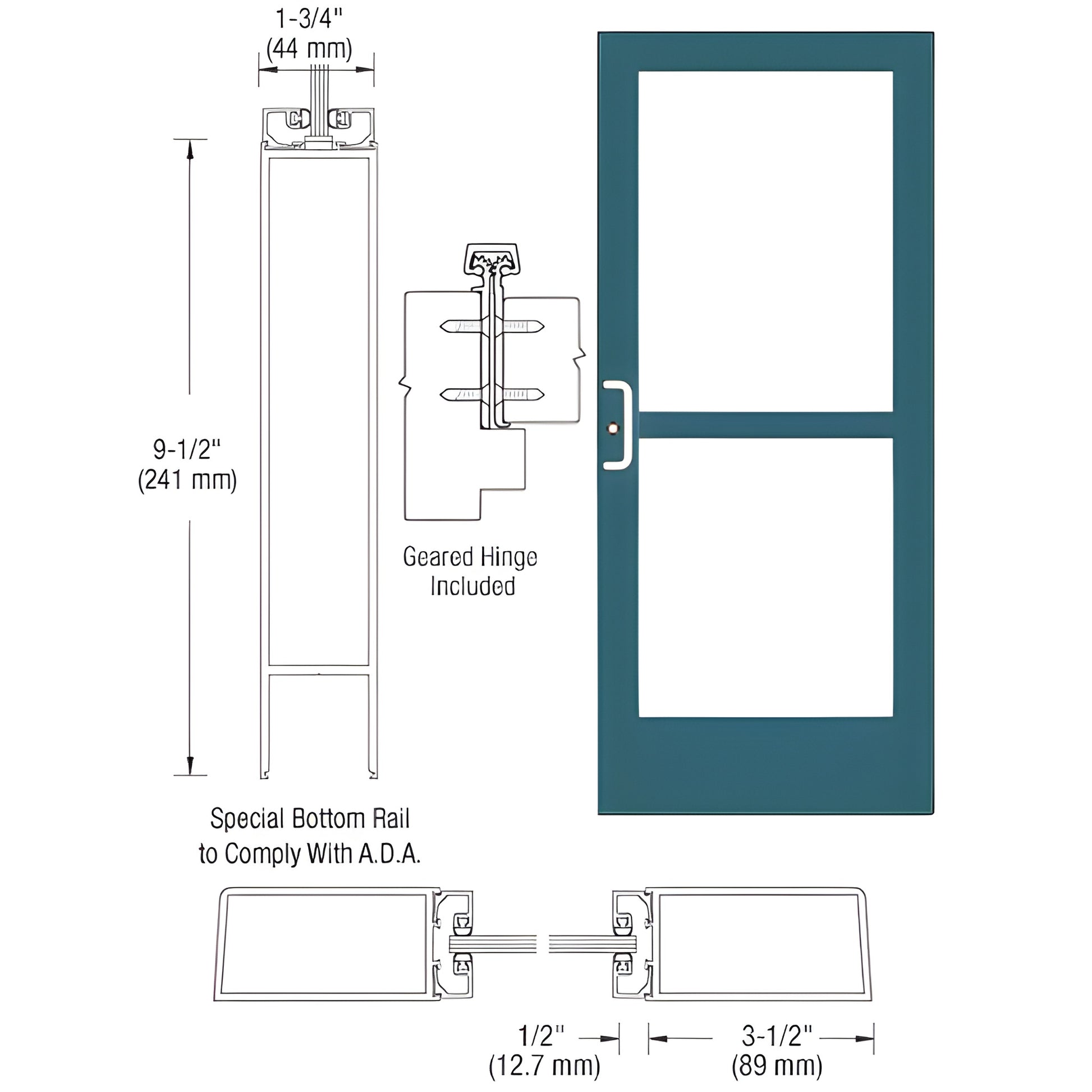

This Custom Medium Stile Entrance Door (SKU CR41871) features 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard prep includes stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass by others). Door is ready for custom fabrication to accommodate a wide range of optional hardware and panic devices.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage. Note: door widths less than 36" (914 mm) may not meet A.D.A. inspection requirements.
For pricing, lead times, or customization options for SKU CR41871, contact CRL Customer Service or order now.
Specifications
BIM Objects - rvt
