CRL-U.S. Aluminum 400 White KYNAR Entrance Door, Geared Hinge
CRL-U.S. Aluminum 400 White KYNAR Entrance Door, Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CR41852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications for commercial entrance doors
- Includes standard panic pull, hanging hardware, rim panic hardware, and one cylinder
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

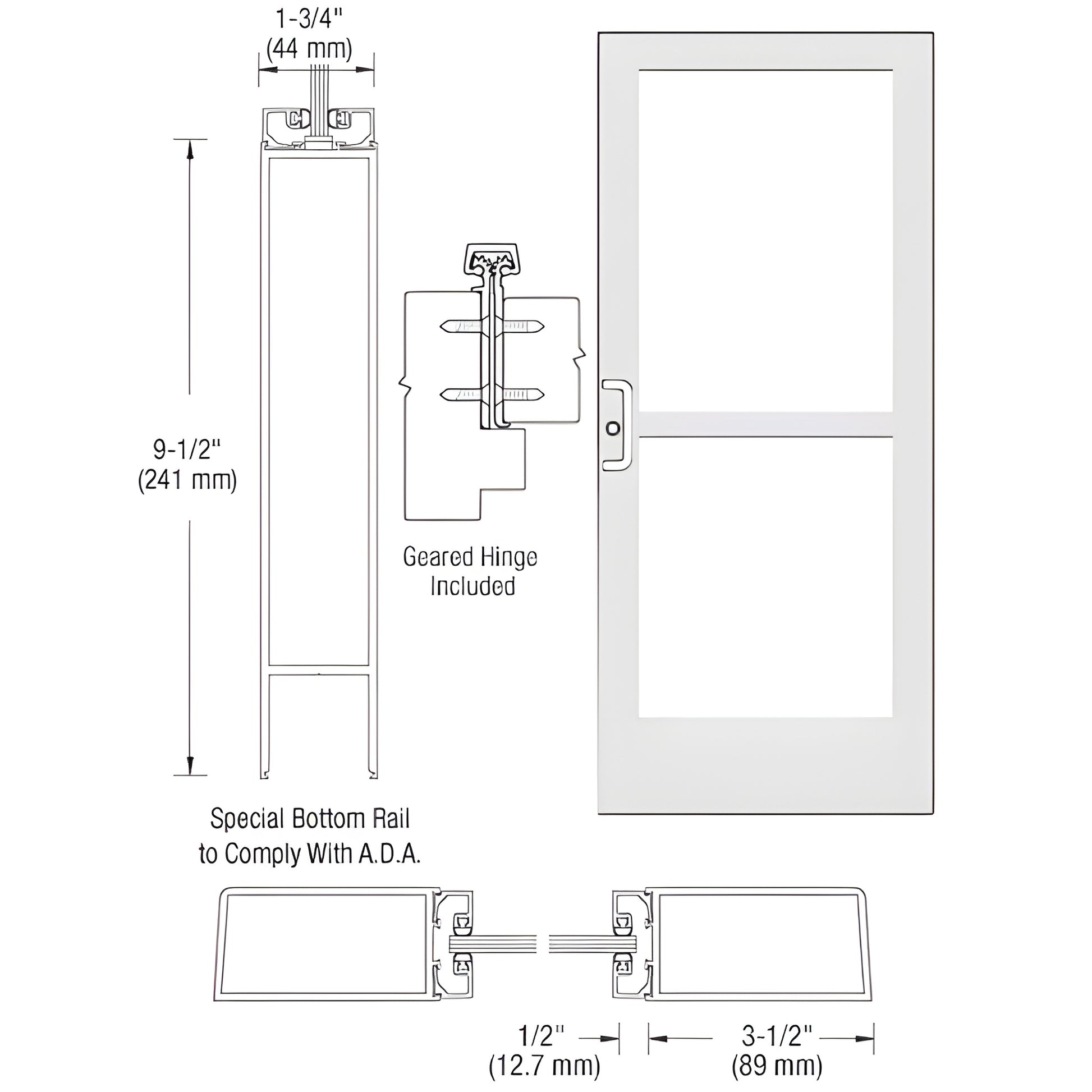

Custom Medium Stile Entrance Door — SKU: CR41852. Built with 3-1/2" (89 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial and ADA-compliant storefronts, this medium-stile door ships ready for Gear Hinge hardware and includes glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Custom fabrication options make it easy to specify additional commercial door hardware and panic hardware solutions.
Please note: protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on site. Doors under 36" (914 mm) may not pass A.D.A. inspection.
Order CR41852 now — customize hardware and glass options for your ADA-compliant commercial entrance. Contact us to specify options or get a shipping quote.
