CRL-U.S. Aluminum Custom 550 KYNAR® Wide-Stile Door, Geared Hinge
CRL-U.S. Aluminum Custom 550 KYNAR® Wide-Stile Door, Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CD51971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accepts 1/4" (6 mm) tempered glass (by others) with option for 1" (25 mm) tempered insulating unit (glass not included)

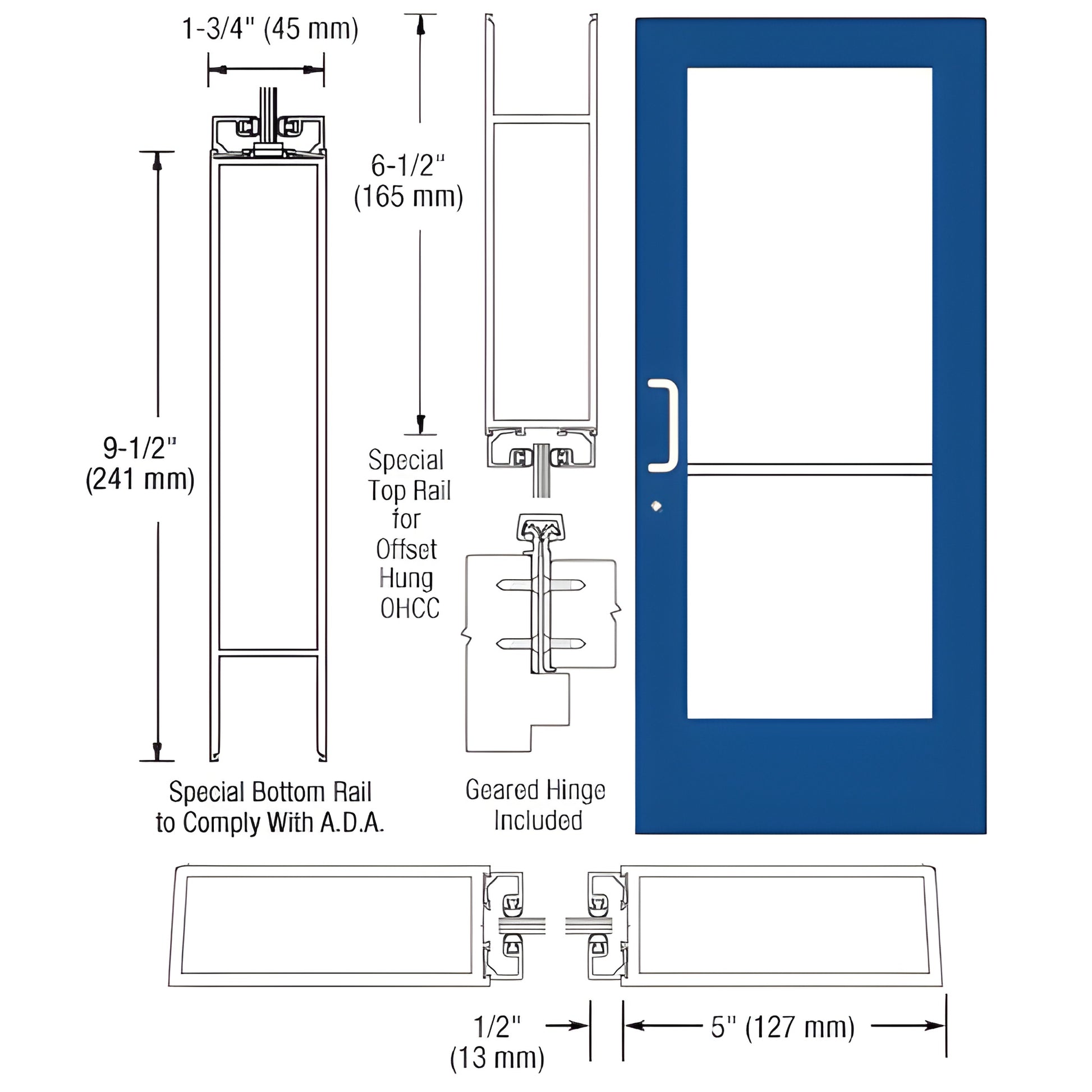

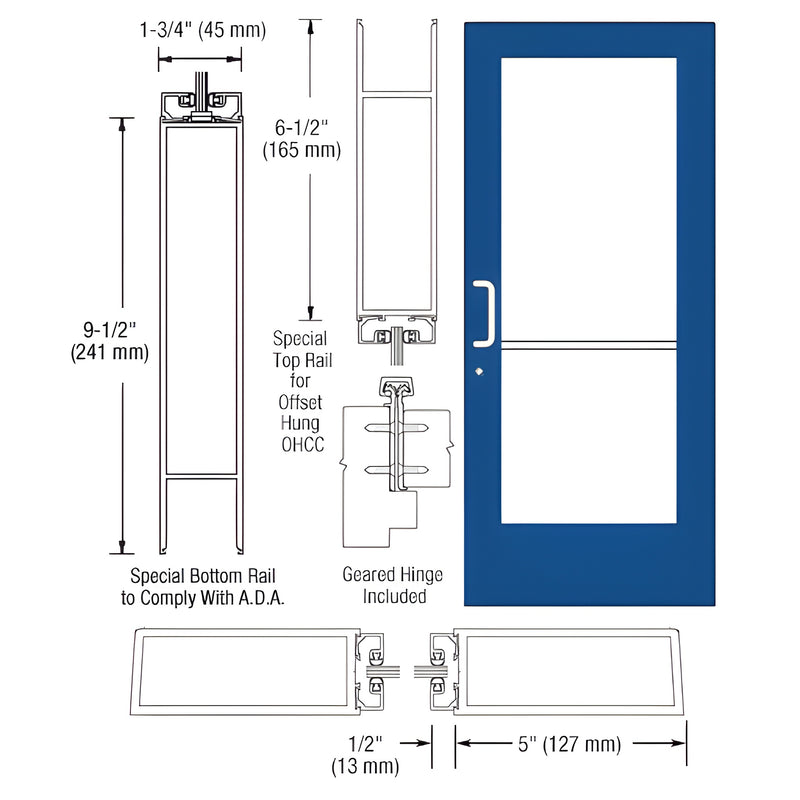

This CRL Custom Wide Stile Entrance Door features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. The door is gear-hinge-ready and glass-stop ready for 1/4" (6 mm) tempered glass. Custom-fabricated to accommodate a wide range of optional commercial hardware, it ships with protruding hardware (handles, pivots, etc.) boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not pass A.D.A. inspection.
SKU: CD51971
Order this CRL wide stile entrance door—custom hardware ready and ADA-compliant—today to outfit your commercial entry. Contact us to confirm glass and hardware compatibility.
Specifications
BIM Objects - rvt
