CRL-U.S. Aluminum 550 Wide-Stile White KYNAR® Geared-Hinge Door

• Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
• Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass sold separately)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
• Custom fabricated to accept a wide range of optional hardware applications

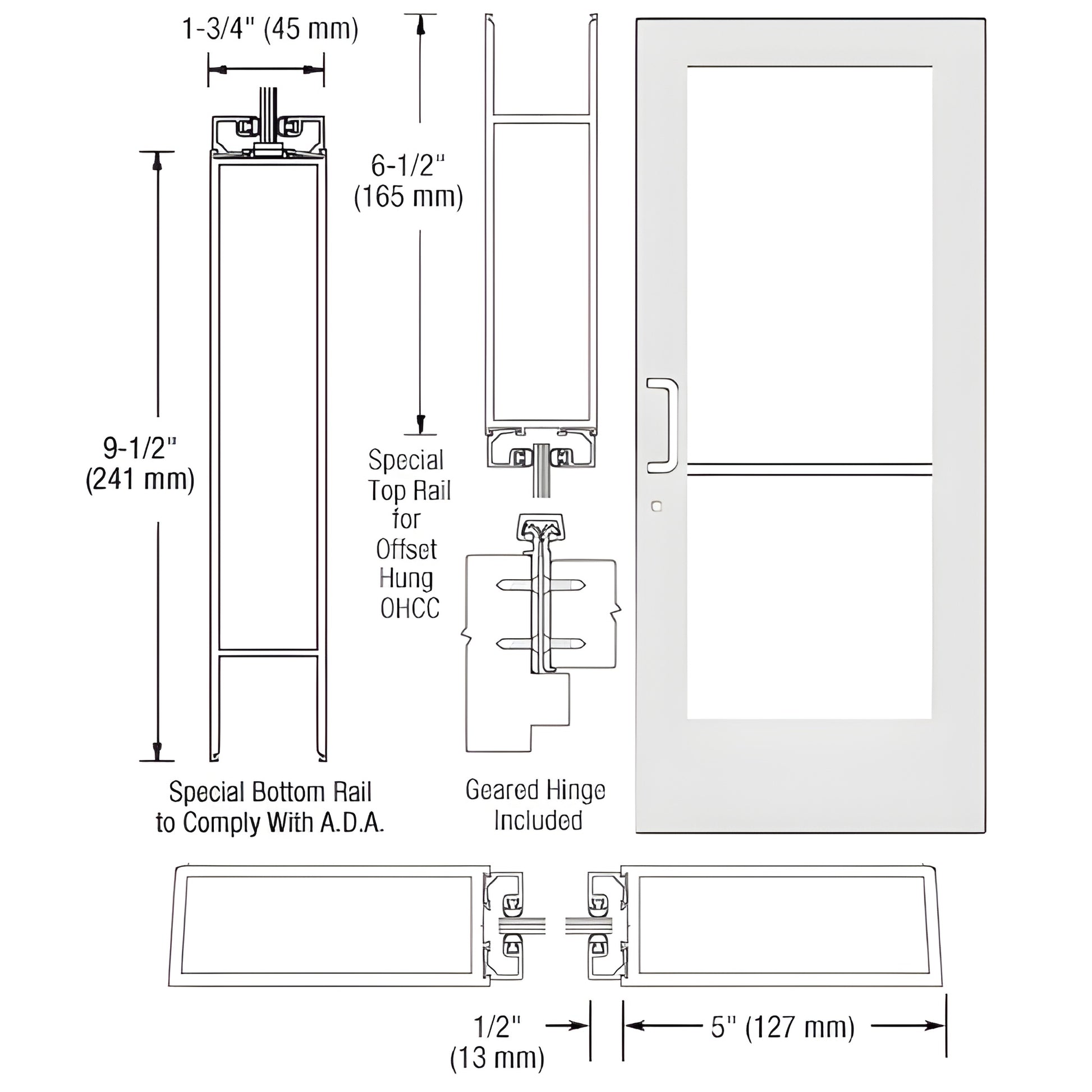

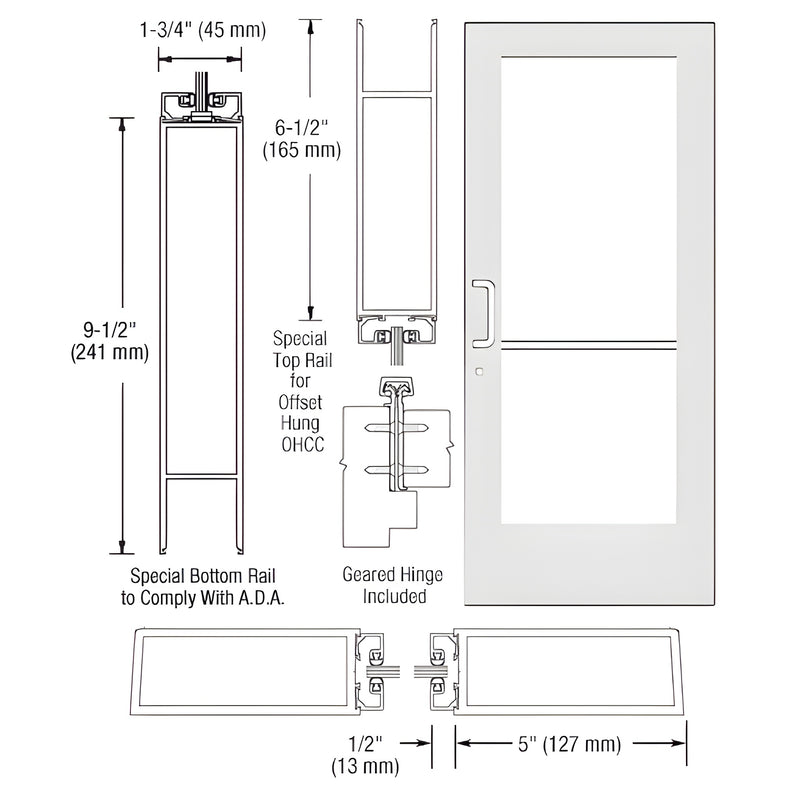

This CRL Custom Wide Stile Entrance Door (SKU: CD51952) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard configuration includes stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Door is ready for custom fabrication to accommodate storefront and commercial hardware options.

Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet ADA inspection criteria.

Key differentiators: custom-fabricated wide stile design, included keyed-alike cylinders and MS Hookbolt lock, ADA-compliant bottom rail, and compatibility with insulated tempered glass—ideal for commercial storefront and office entrance applications.

Order SKU CD51952 or contact CRL for a custom quote and lead time.
