CRL-U.S. Aluminum Custom KYNAR® Paint Custom Single Series 550 Wide Stile Geared Hinge Entrance Door for Surface Mount Door Closer

Product Details

• Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
• Accommodates 1/4" (6 mm) Tempered Glass With the Option for 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
• 9-1/2" (241 mm) Bottom Rail is Installed to Comply with A.D.A.
• Custom Fabricated to Accept Optional Hardware Applications

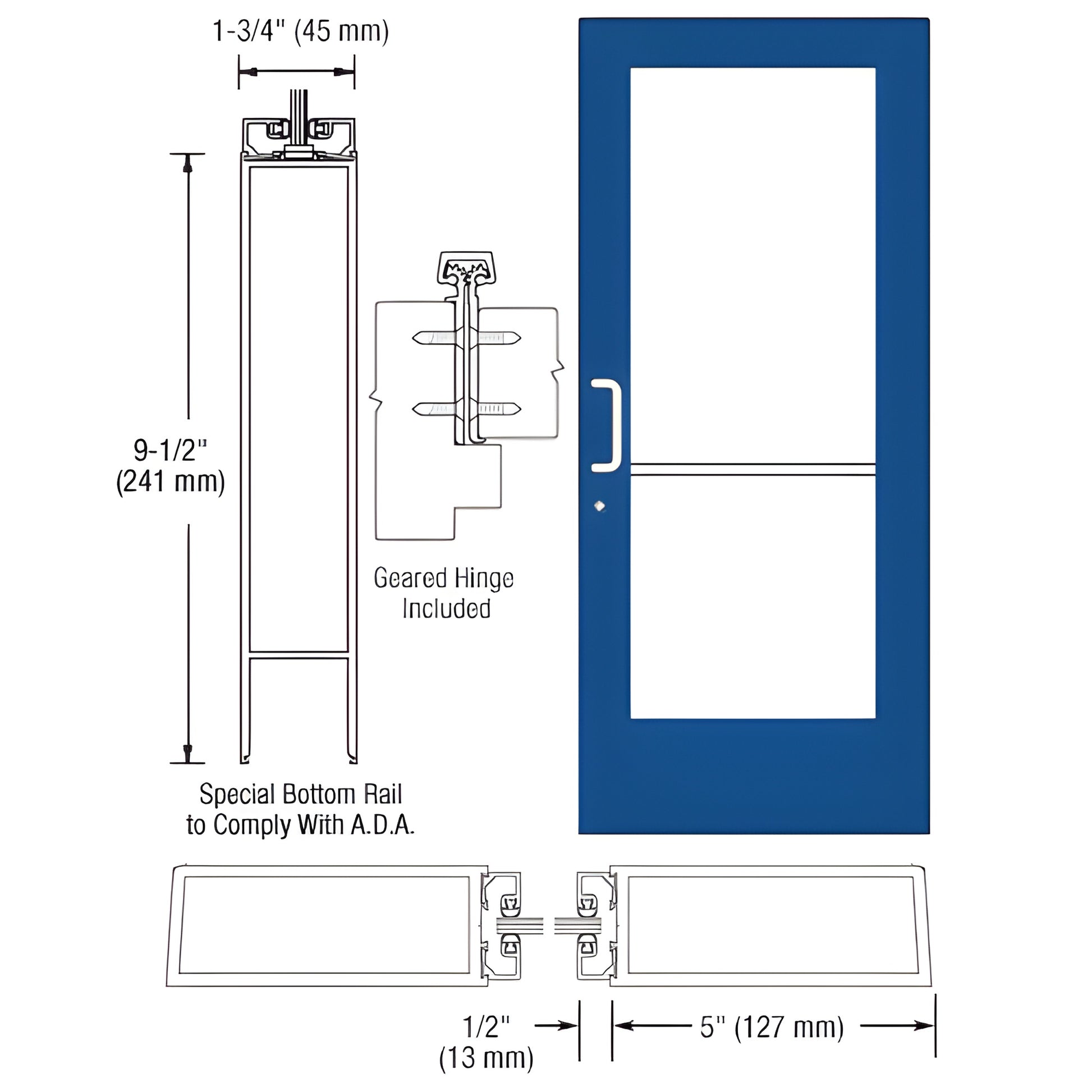

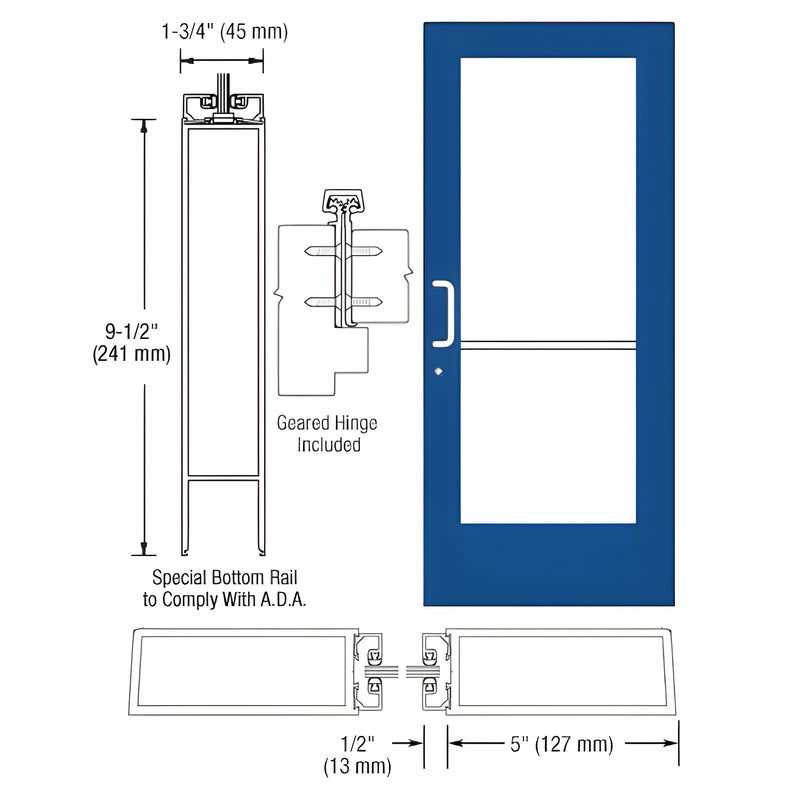

This CRL Custom Wide Stile Entrance Door is built with 5" (127 mm) Stiles, 5-1/2" (140 mm) Top Rail, and 9-1/2" (241 mm) Bottom Rail. Standard features include stiles for Gear Hinge hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.

Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection.
