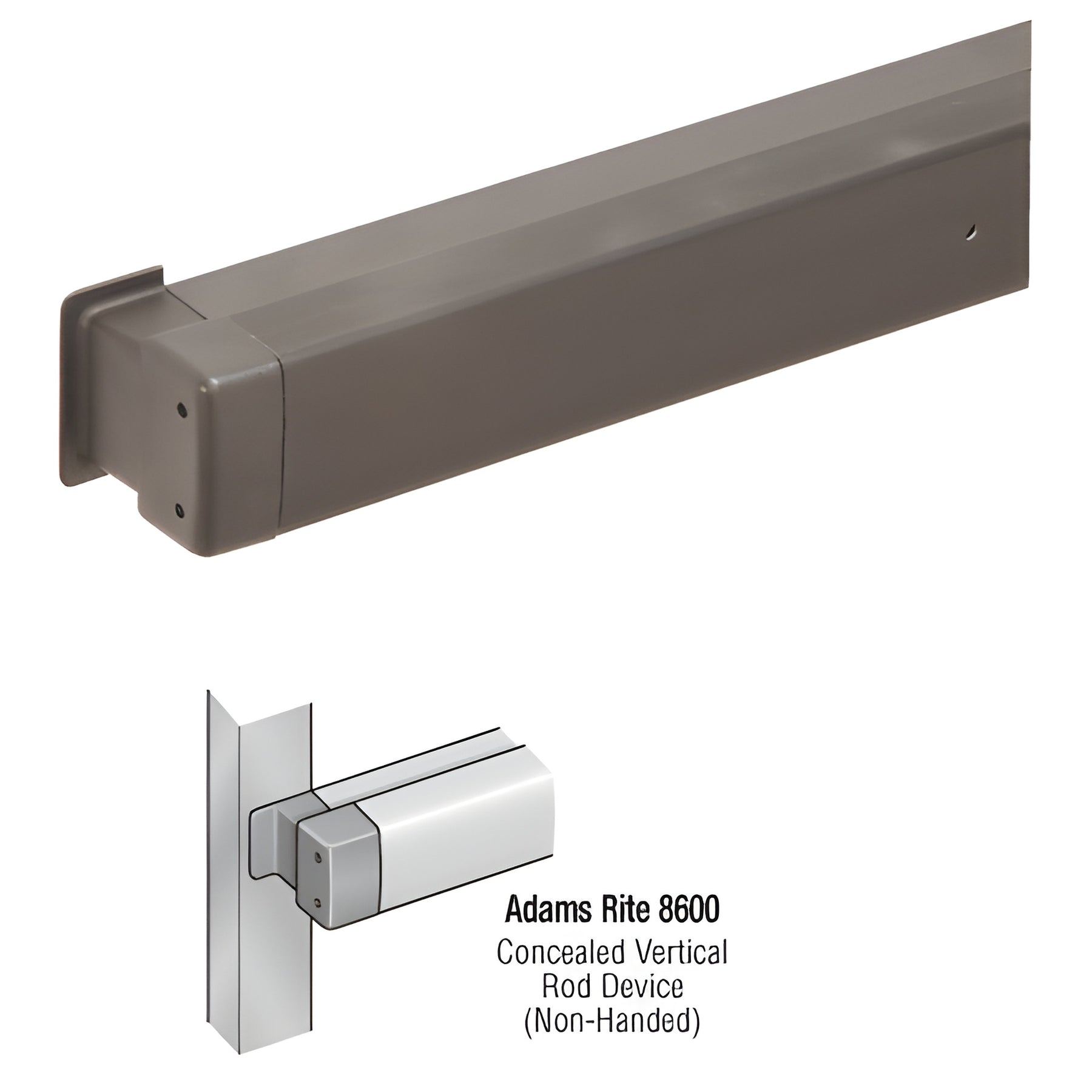

CRL-U.S. Aluminum Dark Bronze Anodized Panic Concealed Vertical Rod Adams Rite® 8600 Only 36"

Buy More, Save More!

Product quantity	Discount
Buy 3	2% off
Buy 5	4% off
Buy 10	6% off
Buy 15	8% off
Buy 20	10% off

Overview

SKU	DH8602236
Pack Size	1
Brand	Adams Rite
Certification	ANSI A156.3 Grade 1
Door Height	96
Door Thickness	1-3/4
Door Width	36
Finish/Color:	Dark Bronze
Handing	Non Handed
Includes	Mounting Hardware
Material	Aluminum
Minimum Stile Width	2
Model	86011
Panic Bar Base Height	2-3/4
Panic Bar Projection	2-5/8
Panic Dogging	Standard Hex Key Dogging
Panic Type	Concealed Vertical Rods (CVR)
Push Pad Width	29-1/4
Recommended Door Type	Aluminum, Wood, Hollow Metal
Replacement Parts	DL2170SCKDDU, DL2170Y8KDDU, Special Order
Series	8600
UL Listed	Yes

Description

Product Details

Fits Door Stiles as Narrow as 2" (51 mm)
UL Listed and Tested to ANSI A156.3, Grade 1
Easy-to-Install

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors.
