CRL-U.S. Aluminum S400 Geared Hinge Entrance Door, Clear Anodized
CRL-U.S. Aluminum S400 Geared Hinge Entrance Door, Clear Anodized
Regular price
$1,424.95 CAD
Regular price
Sale price
$1,424.95 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ41811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating unit (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications
- Includes standard panic pull and hanging hardware
- Selected panic hardware and one cylinder ordered separately

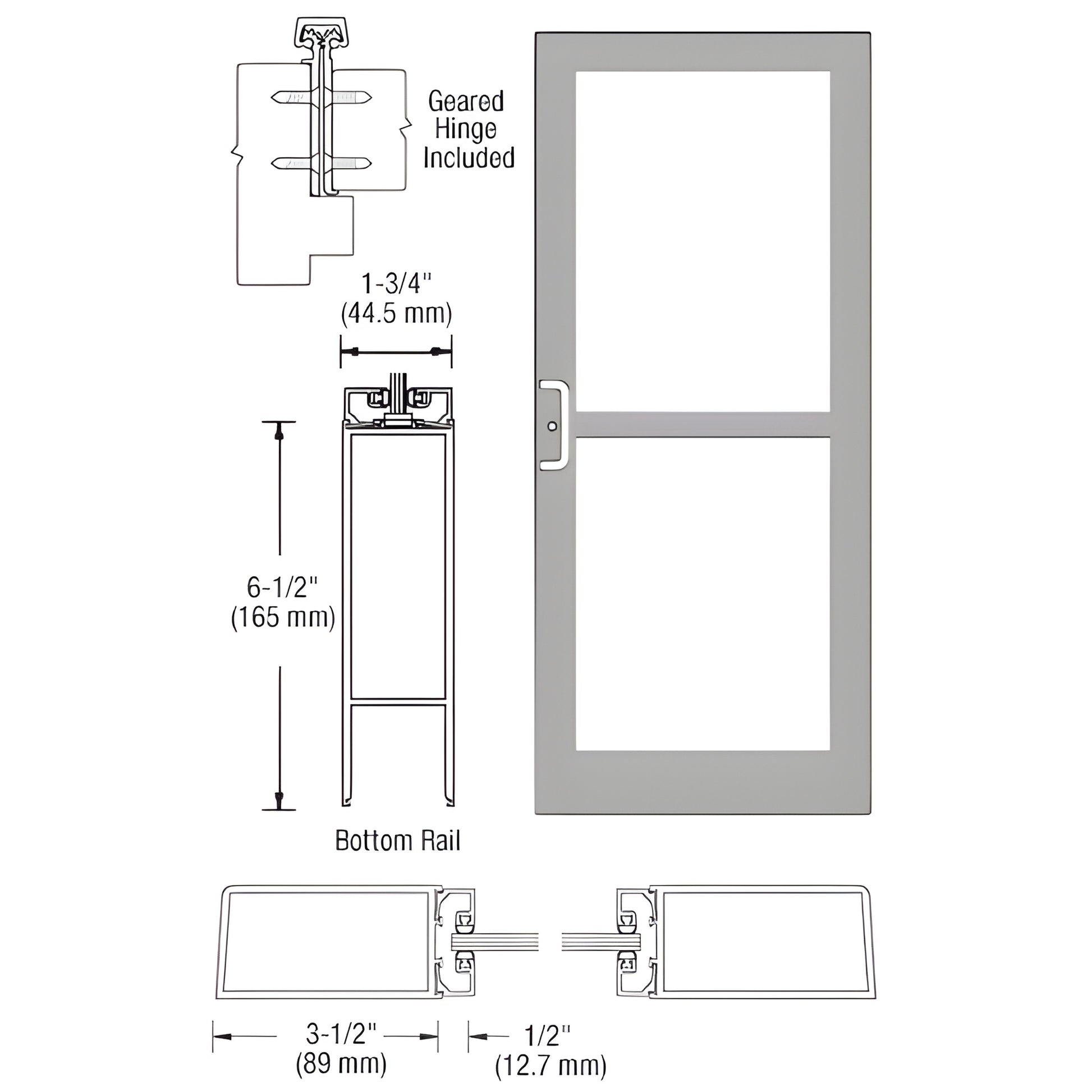

Custom Medium Stile Entrance Door built with 3-1/2" (89 mm) stiles, 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard configuration includes stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Designed for custom hardware integration—ideal for commercial storefronts and architectural entrance applications requiring a customizable medium stile door.
Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
SKU: DZ41811
Need a quote or custom hardware options? Contact CRL Customer Service to get started.
Specifications
BIM Objects - rvt
