CRL-U.S. Aluminum Series 250 Clear Anodized Narrow-Stile Geared Hinge

• Custom made to your size specifications — SKU: DZ21811
• Selected panic hardware and one cylinder ordered and added separately
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (glass not included)
• 9-1/2" (241 mm) bottom rail available to comply with A.D.A. and Title 24 applications
• Custom fabricated to accept optional hardware applications
• Includes standard panic pull and hanging hardware (protruding hardware boxed separately to prevent transit damage)

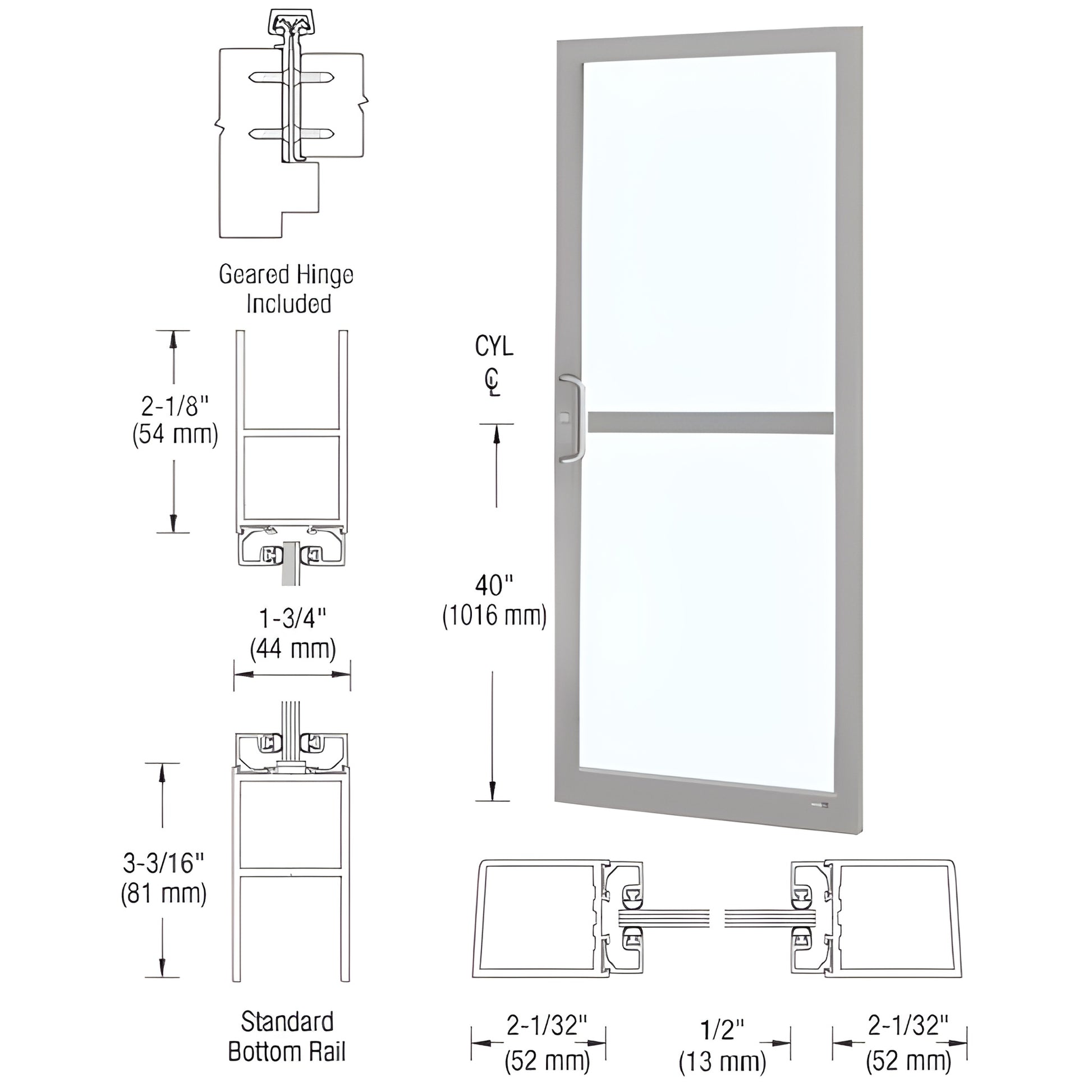

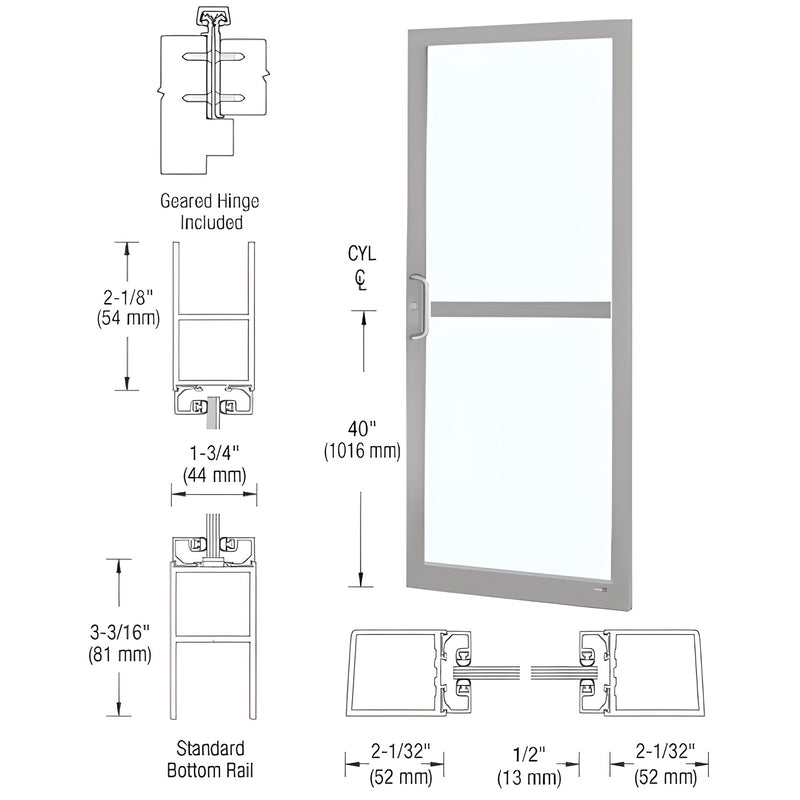

This Custom Narrow Stile Entrance Door is designed for commercial and institutional use and is built with 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 3-3/16" (81 mm) bottom rail. Stiles are prepared for Gear Hinge hardware and include glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). The unit is ready for custom fabrication to accommodate a wide range of optional hardware, making it ideal when you need a tailor-made exterior or interior entrance solution for storefronts, office entries, or ADA-conscious installations.

Note: Customers must install included protruding hardware (handles, pivots, etc.) boxed separately. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements. Panic hardware and cylinder are sold separately.
