CRL-U.S. Aluminum Series 250 Narrow-Stile Geared Hinge Doors - Pair
CRL-U.S. Aluminum Series 250 Narrow-Stile Geared Hinge Doors - Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE22811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accepted (glass sold separately)
- 9-1/2" (241 mm) bottom rail available to meet A.D.A. and Title 24 applications
- Custom fabricated to accept a wide range of optional hardware applications
- Includes active and inactive leaf with all standard hardware; stiles prepared for Gear Hinge hardware

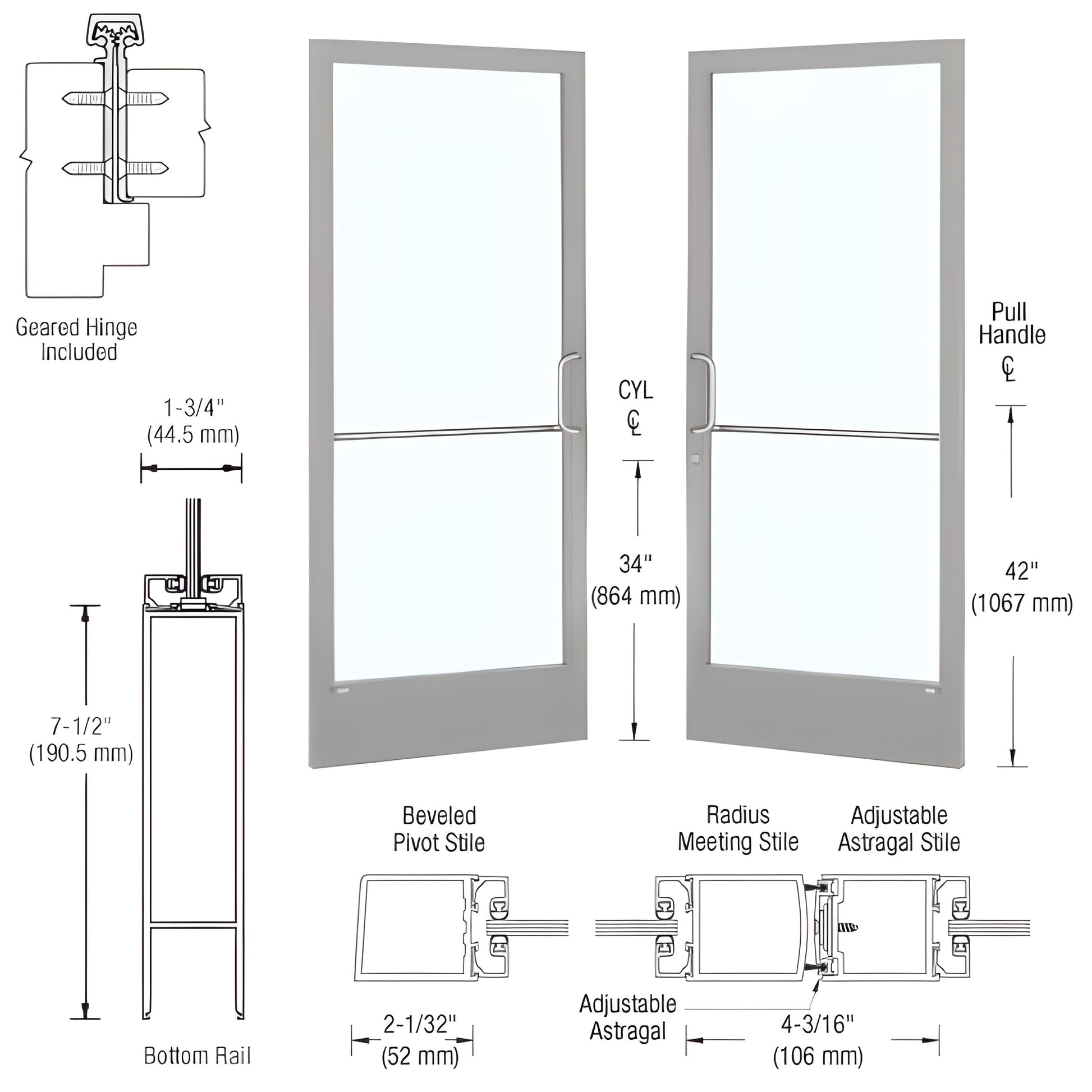

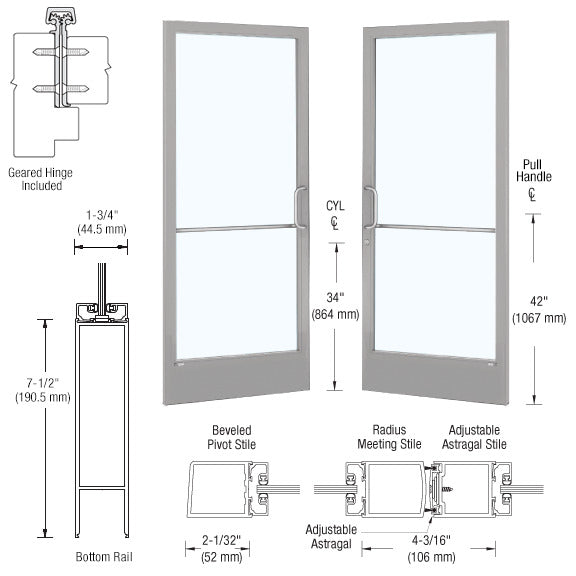

This Custom Narrow Stile Entrance Door (SKU: HE22811) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Standard glass stops accept 1/4" (6 mm) tempered glass (by others). Door is ready for custom fabrication to accommodate optional commercial hardware and storefront applications.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.
Ready to specify HE22811 for your commercial storefront or ADA-compliant entrance? Contact CRL to order or request exact shipping weight.
Specifications
BIM Objects - rvt
