CRL-U.S. Aluminum Series 400 Geared Hinge for Entrance Doors

• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• Fits 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
• 6-1/2" (165 mm) bottom rail
• Custom fabricated to accept a wide range of optional hardware applications

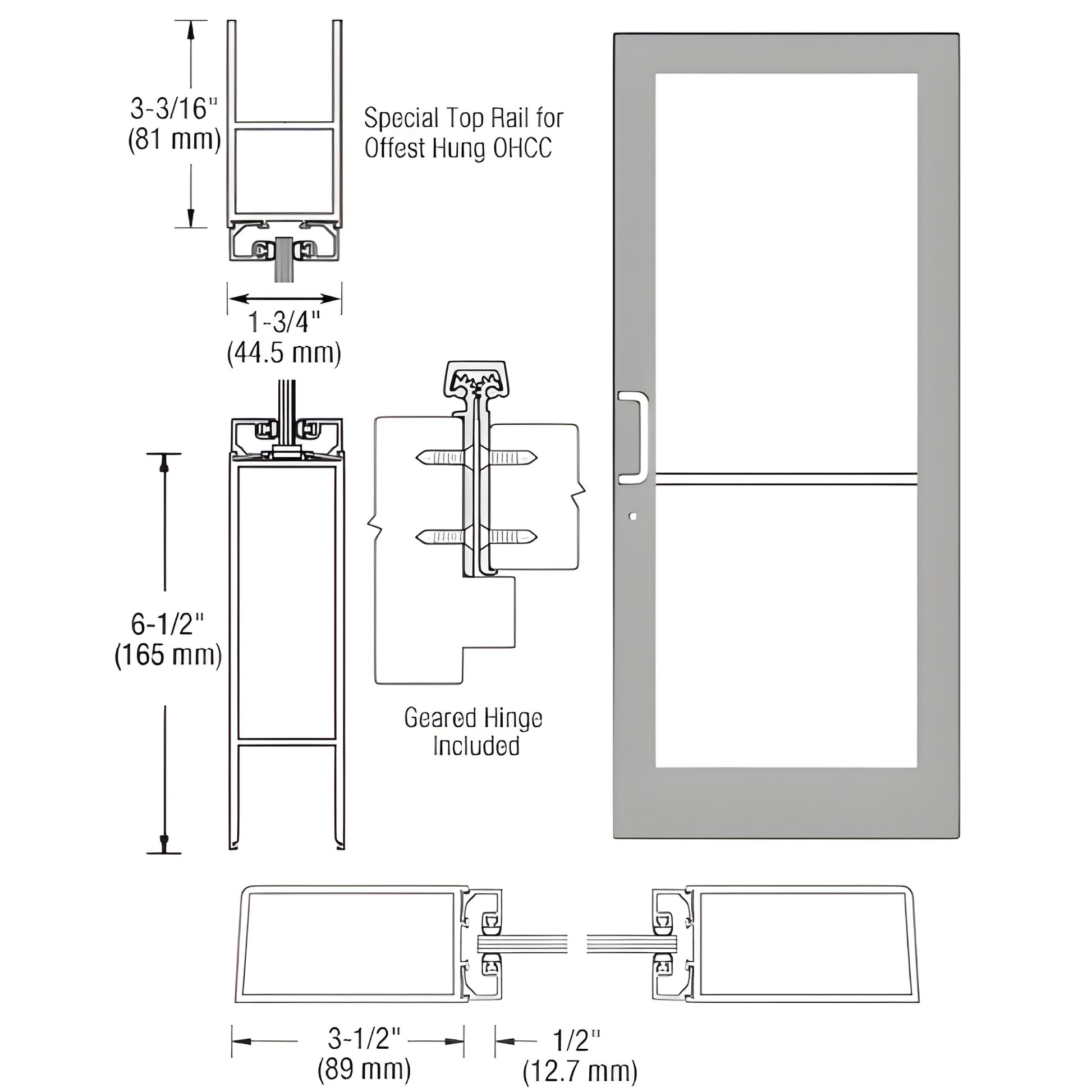

This CRL Custom Medium Stile Entrance Door (SKU DC41911) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial storefront and tempered glass entrance installations, the door includes stiles prepared for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Built for easy customization, it supports optional hardware upgrades and insulating glass units for improved thermal performance.

Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Optimize your storefront with a durable, customizable medium stile entrance door—contact CRL to order SKU DC41911 or request a quote.
