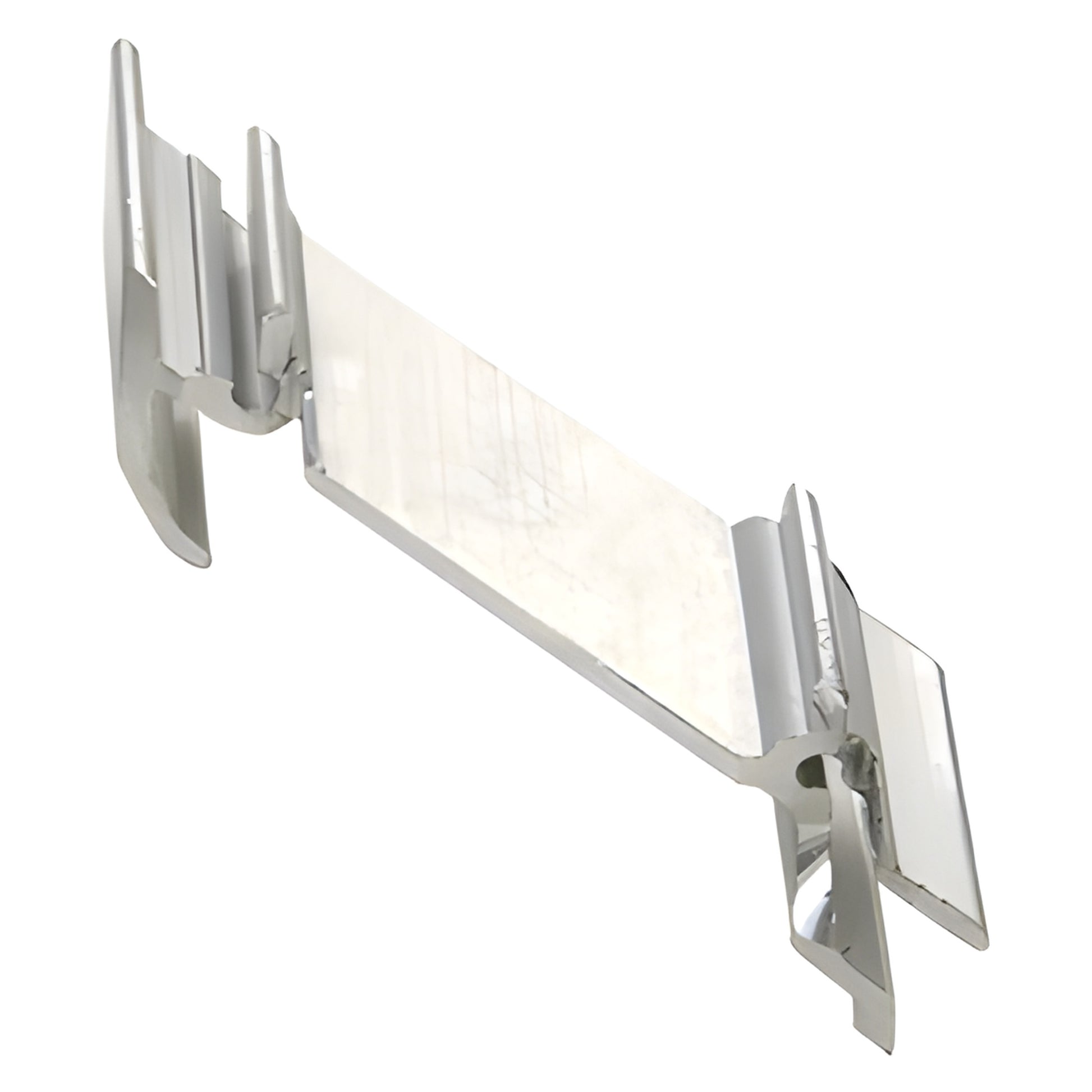

CRL-U.S. Aluminum Shear Blocks for Outside 90º Corner - 4 Right Hand
Item # AP568R
$15.67
CAD
Finish (2)
-
Mill -
Mill
Overview
| SKU | AP568R |
|---|---|
| Sold As | 1 Pack |
| Finish/Color | Mill |
Description
- For Outside 90º Corners
- Set Includes 4 Right Hand Shear Blocks with Screws
- Used with TW470 Mullion
U.S. Aluminum products are made in the U.S.A. to the exacting standards you expect from the leader in aluminum architectural systems. Over the years U.S. Aluminum has created hundreds of custom items to satisfy specific job requirements.
Specifications
Brochures & Literature
Installation Instructions
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
- PDFAAMA Test Report Expiration Statement
- PDFSeries 4500 - AAMA 1503-98 Thermal Performance Test Report 76380.02-301-46 - U-Factor 0.61 CRF 71
- PDFSeries 4500 - AAMA 1503.1-88 SG Thermal Test Report T99W-001 - U-Value 0.26 CRF 75
- PDFSeries 4500 - AAMA 501-94 Performance Test Report CCLI-04-194 Two piece vertical with strap
- PDFSeries 4500 - Acoustical Performace Test Report No. 01-31865.01 STC 32
- PDFSeries 4500 - Air Water Structural Dynamic Seismic Report CCLI-99-014
- PDFSeries 4500 - CSA-A440 Thermal Performance Test Report 76380.03-301-46
- PDFSeries 4500 - NFRC 102-2004 Thermal Performance Test Report 76380.01-301-46 - U-Factor 0.56
- PDFSeries 4500 - Pull-Out Test on Thermal Clips Report
- PDFSeries 4500- AAMA 1503.1-188 Thermal Test Report T98W-052 - U-Value 0.32 CRF 74
- PDFSeries 4500TSG - Unit Glazed - Air Water Structural Report E4231 01-301-47
Glazing Charts
