Overview
| SKU | XLF259 |
|---|---|
| Sold As | 1 Box |
| Finish/Color | Mill |
Description
- Used with Windload Anchor Plates
- Packed 100 Per Box
- 1/4-20 FHP "F" Screw
This 1/4-20 Screw is used for attaching steel plates to Vertical Mullions for attachment to slab anchors.
Specifications
Brochures & Literature
Installation Instructions
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
- PDFStormWall XL - SSG Twin Span - Air Water Structural Impact - CCLI 11-238
- PDFStormWall XL - Single Span - Air Water Structural Impact - A8744.04-801-18
- PDFStormWall XL - Thermal Performance - AAMA 1503 - Clear - C2681.02-116-46
- PDFStormWall XL - Thermal Performance - AAMA 1503 - Low E - C2682.04-116-46
- PDFStormWall XL - Thermal Performance - AAMA 507 - C2680.05-116-45
- PDFStormWall XL - Thermal Performance - NFRC 102 - C2682.03-116-46
- PDFStormWall XL - Thermal Performance - NFRC Simulations - C2680.06-116-45
- PDFStormWall XL - Twin Span - Air Water Structural Impact - CCLI 11-226

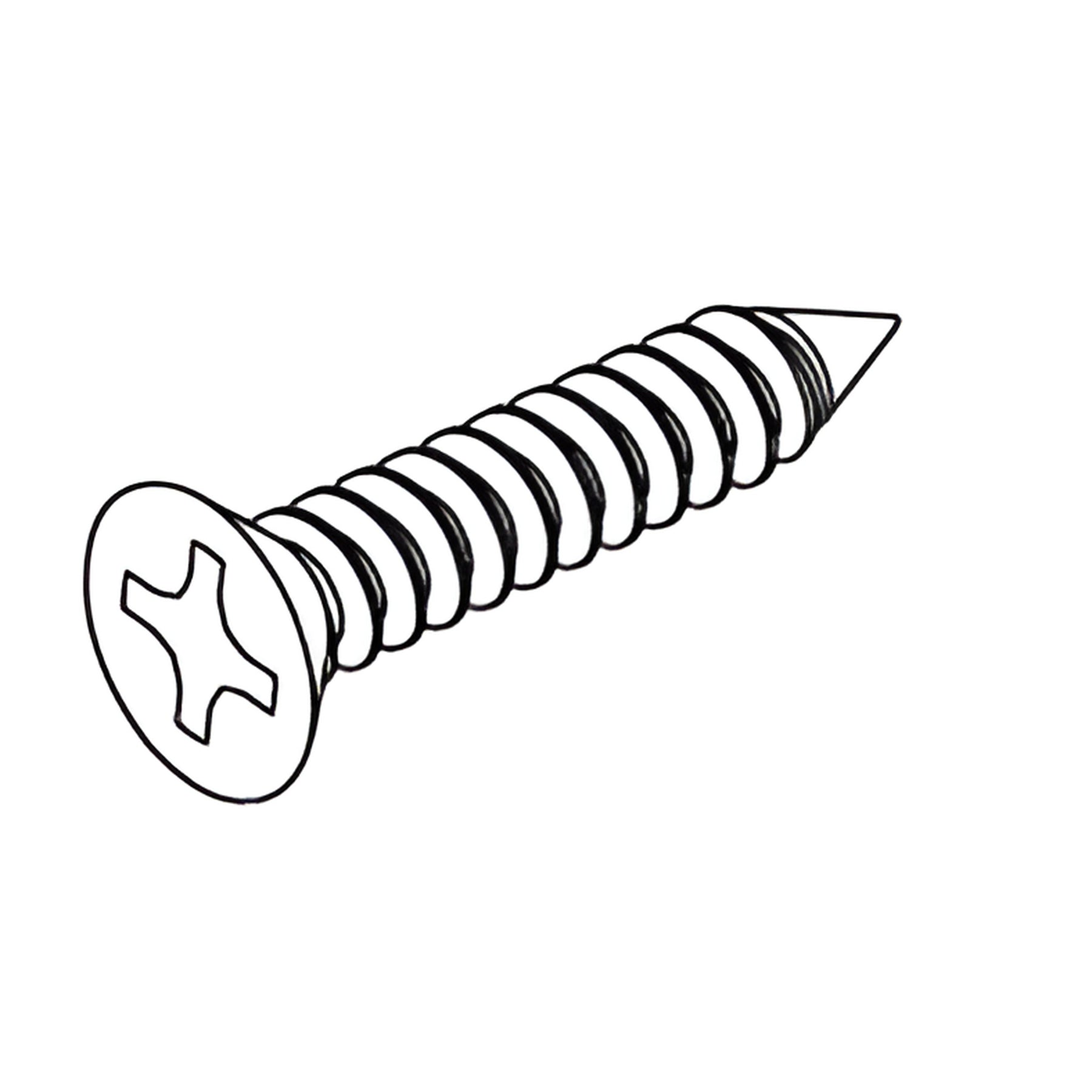

CRL-U.S. Aluminum StormWall XL 1/4-20 FHP "F" Screw for Windload Anchor Plate - Pk/100
XLF259
$29.15
