CRL-U.S. Aluminum White KYNAR® Custom 550 Wide-Stile Butt-Hinge Door

• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders for keyed-alike security
• Accepts 1/4” (6 mm) tempered glass; optional 1” (25 mm) tempered insulating glass unit can be accommodated (glass not included)
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
• Custom fabricated to accept a wide range of optional hardware applications and ready for butt hinge installation

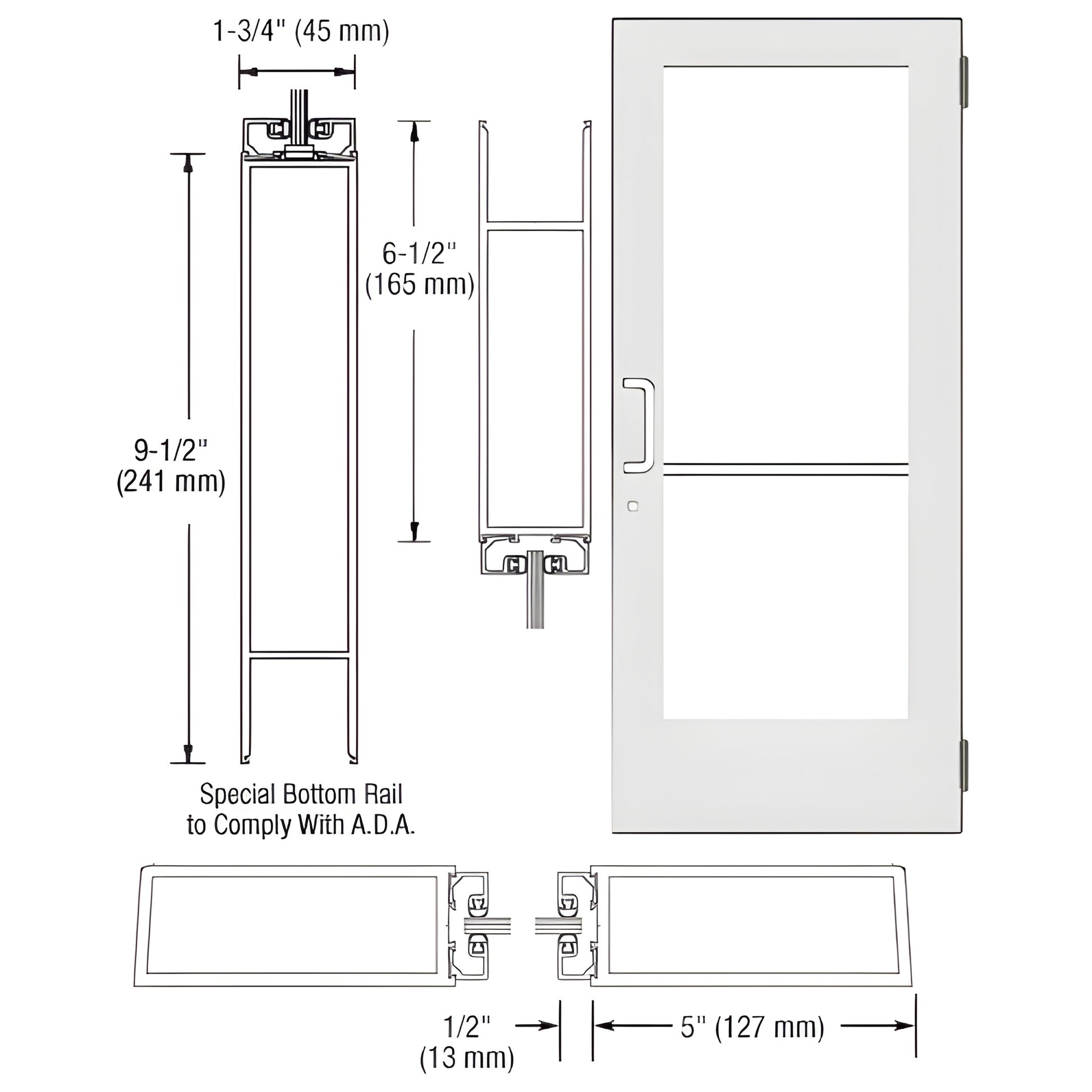

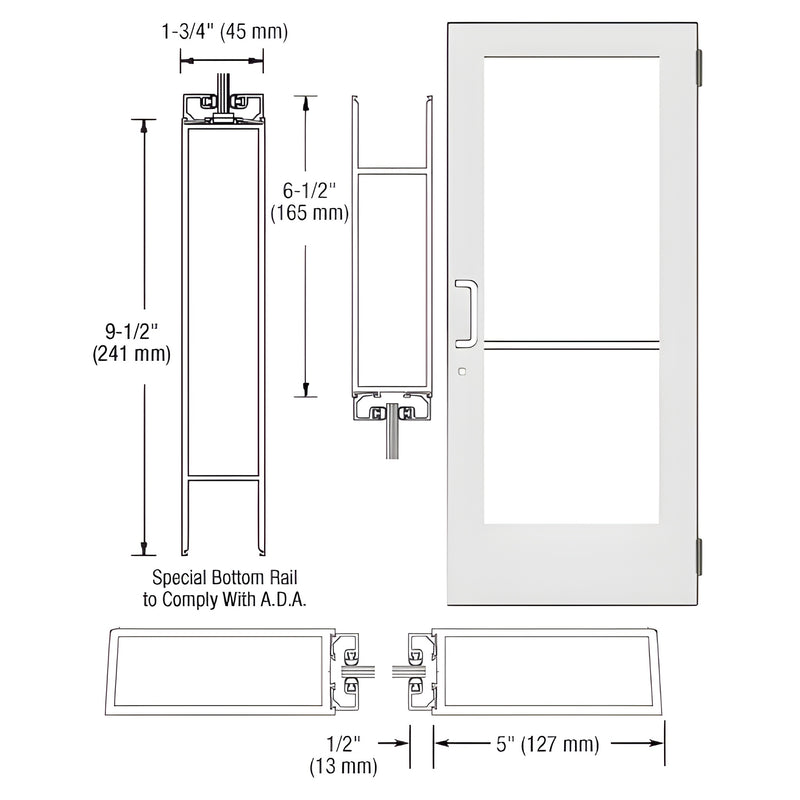

This Custom Wide Stile Entrance Door (SKU: DE51452) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA bottom rail. Standard design includes glass stops for 1/4” (6 mm) tempered glass (by others) and stiles prepped for butt hinge hardware. Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed on site to prevent transit damage. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.


Order SKU DE51452 or contact our sales team for custom hardware options and a quote.
