Product Details
- Holds Window Screen into the Frame
- White in Color
- Spring-Loaded Plunger
- 100 Latches Per Bulk Pack

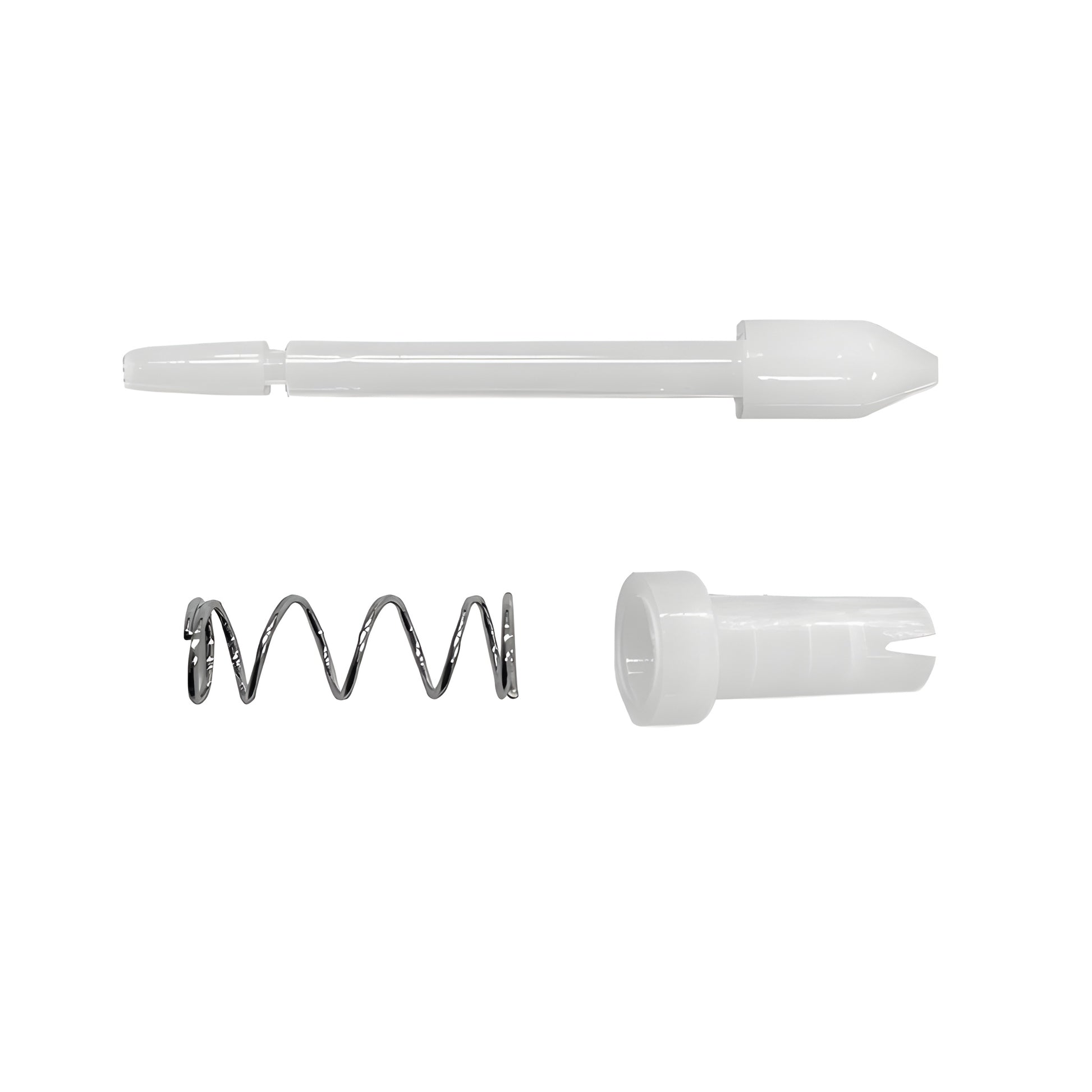

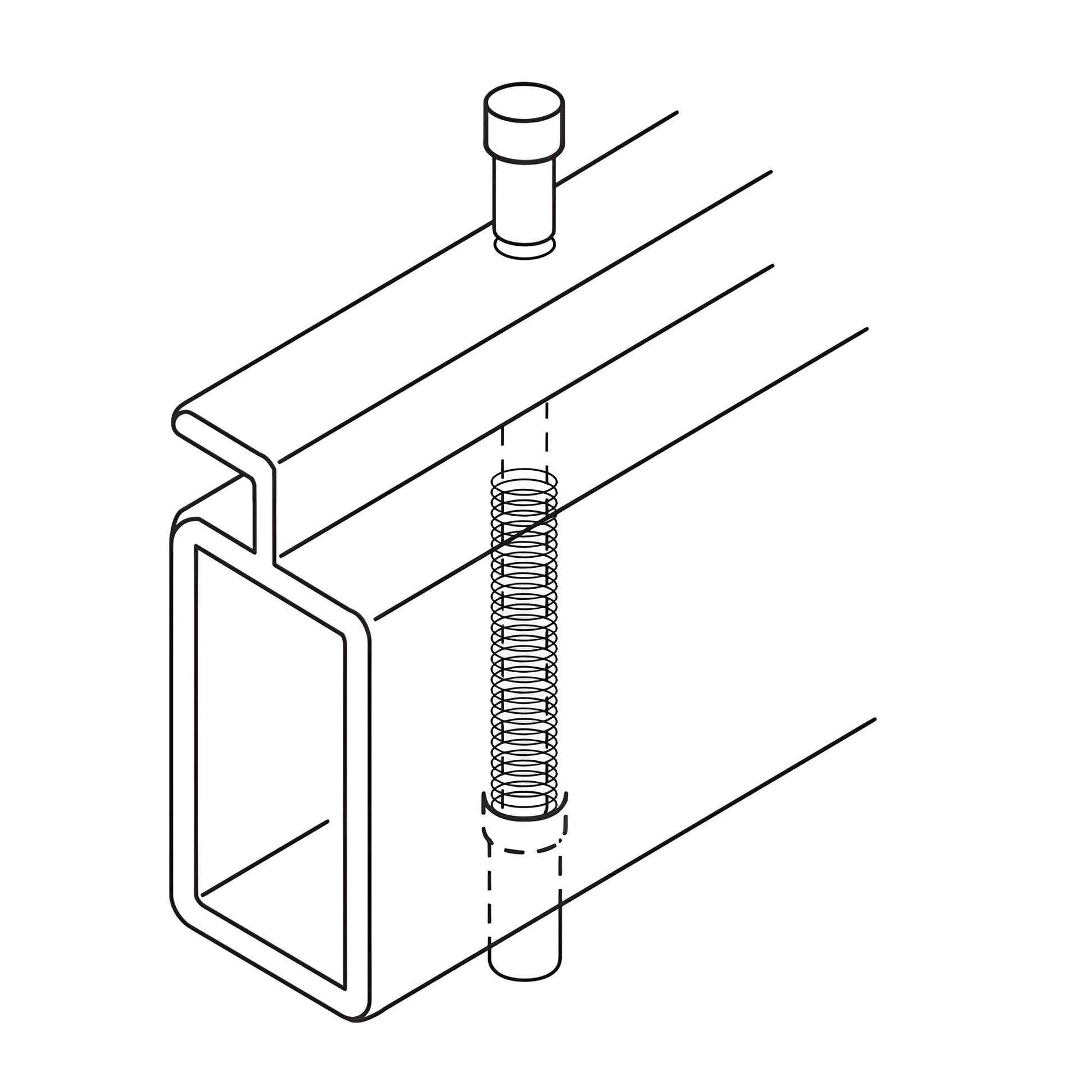

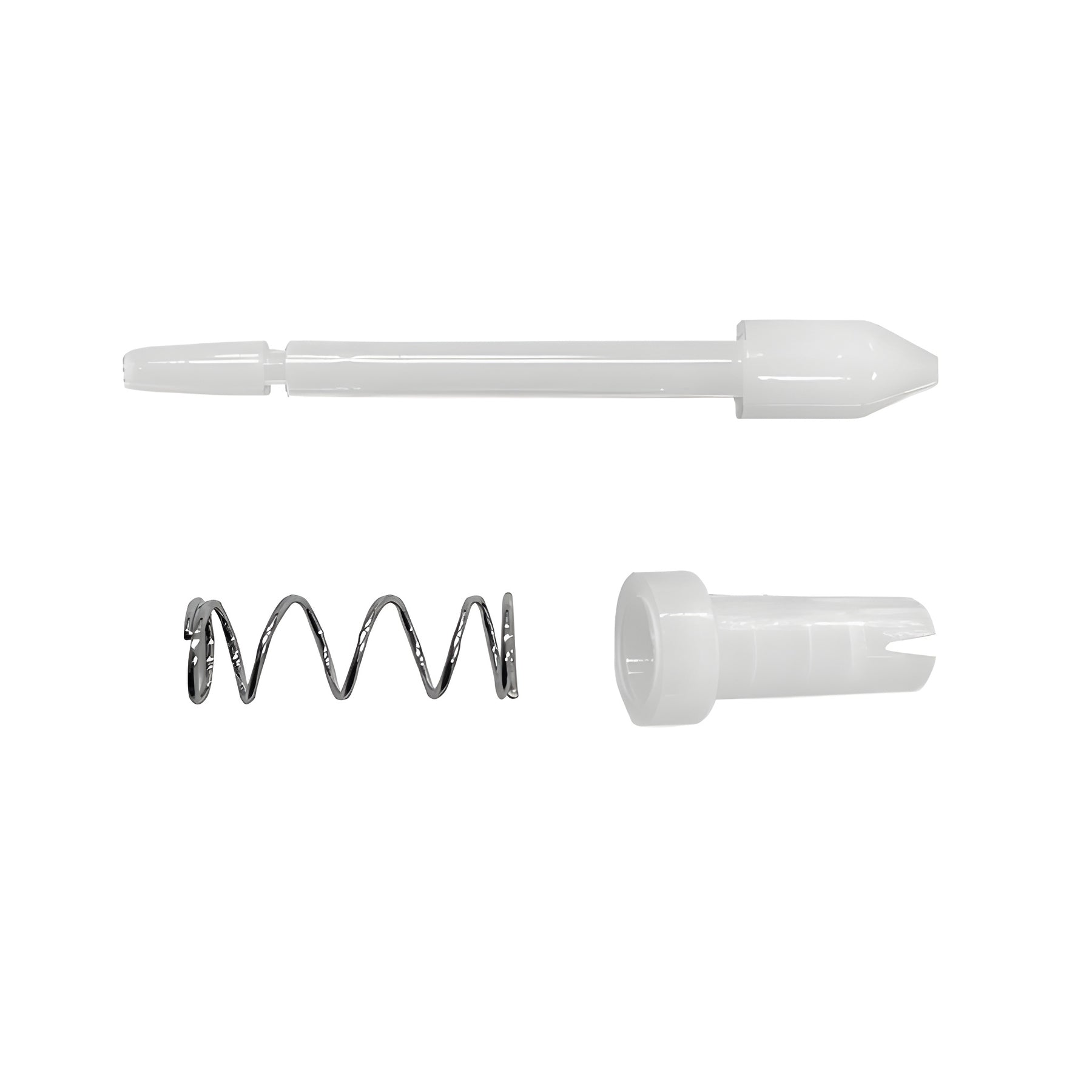

The Spring-Loaded CRL Nylon Plunger Latch is designed to hold 1/4" to 7/16" (6.3 to 11 mm) screens in metal window frames. The spring-loaded plunger pops into a 7/32" (5.6 mm) hole drilled into the screen frame by using a 601732 drill for the large diameter hole, and for the small diameter 1/8" (3.2 mm) hole use a 60118 drill on the opposite side of the frame. To easily complete this we recommend using a WST920 jig for alignment . 100 Latches per bulk pack.
NOTE: Use CRL Cat. No. WST905 Step Drill to install WSC615 Plungers. Two drill bits, CRL Cat. No. 60118 and 601316 (1/8" and 3/16" diameter), are required to install the smaller diameter WSC614 Plungers.
