Most shipping weights are approximate. If you need exact weight for shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
CRL
CRL 180Β° No Hold Open Size 3 Heavy-Duty Floor Spring Closer
CRL 180Β° No Hold Open Size 3 Heavy-Duty Floor Spring Closer
Regular price
$539.64 CAD
Regular price
Sale price
$539.64 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8532
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Auxiliary Stop Recommended
Yes

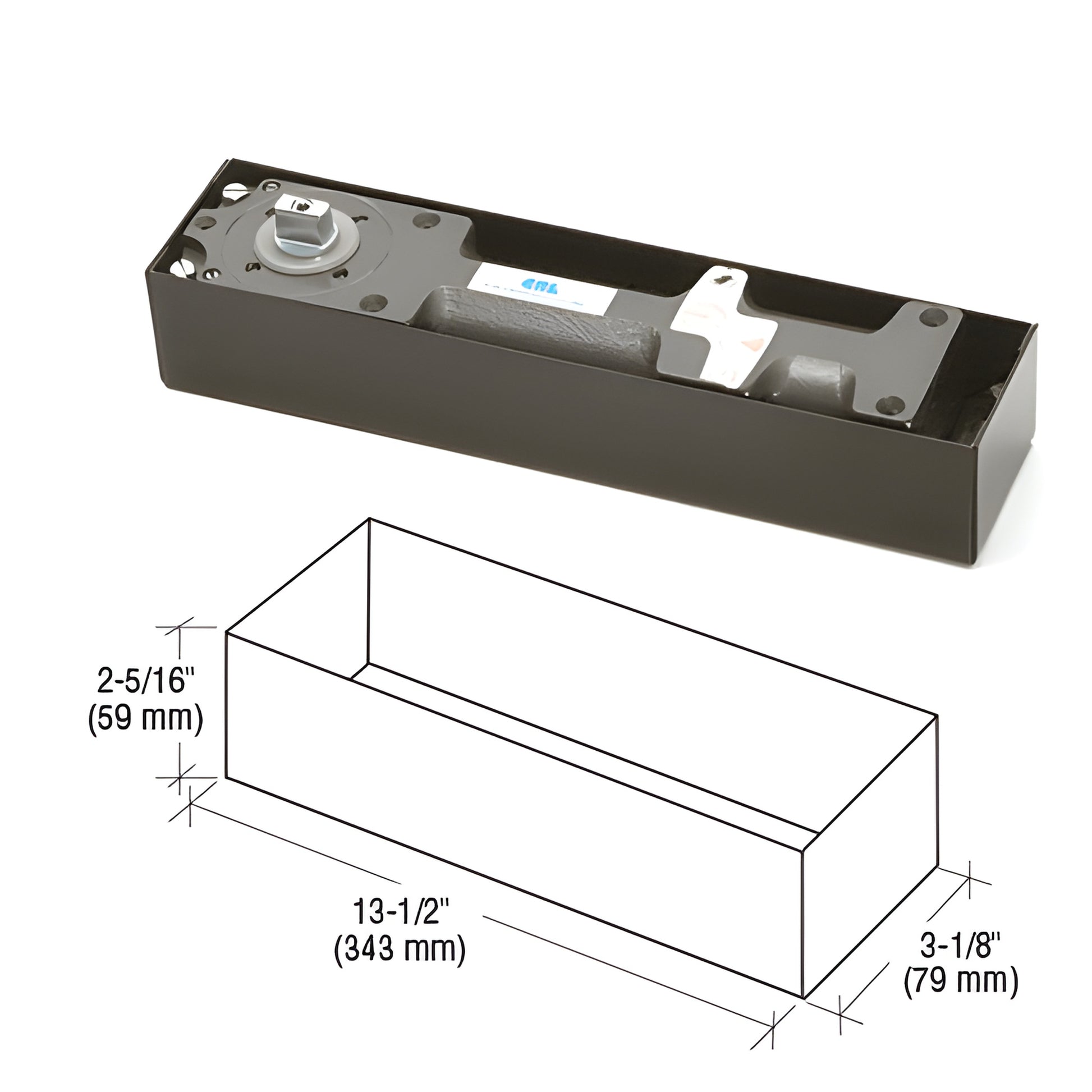

Body Height
2-5/16
Body Length
13-1/2
Body Width
3-1/8
Closer Body With Box
Yes
Closer Type
Floor Closer
Door Height
96
Handing
Double Acting
Includes
CRL85CB, CRL9040S3
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
36 in. (0.96 m)
Maximum Door Width - Interior
42 in. (1.07 m)
Maximum Weight Center Hung
800 Pounds
No Hold Open
180Β°
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL85CB, CRL9040S3
Similar
CRL8460, J990NHOD
Spindle Included
Yes
Spring Size
3
UL Listed
Yes
Overview
- Perfect floor-mounted door closer for CRL's Door Rail System
- Interchangeable spindle heights for finished-floor variations
- Independent closing and latching speed adjustments
- 5 Year Limited Warranty
- UL Listed
CRL8500 Series Floor Mounted Door Closer β heavy-duty floor closer designed to support doors up to 800 lbs (363 kg). Available in 90Β° or 105Β° hold-open or no hold-open models and three spring sizes to suit most commercial and residential installations. Ideal as a floor mounted door closer for 800 lb doors and compatible with CRL's Door Rail System (SKU: CRL8532).
The supplied 1/8" (3 mm) standard spindle collar height is interchangeable with optional spindles to match different finished-floor heights. Available accessories include cover plates, pivots, center-hung arms, and offset arms for flexible installation options.
NOTE: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of the maximum allowable door swing.
SPECIFICATIONS:
Maximum Door Weight: 800 lbs. (363 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 36" (0.96 m)
Highlights: heavy-duty performance, adjustable spindle heights, independent speed control, UL listed and backed by a 5-year limited warranty β a reliable floor mounted door closer solution for heavy commercial doors.
Contact CRL or add to cart to specify accessories and confirm spindle options.
Specifications
Warranty
