CRL 180Β° No Hold-Open Size 5 Heavy-Weight Floor Spring Door Closer
CRL 180Β° No Hold-Open Size 5 Heavy-Weight Floor Spring Door Closer
Regular price
$539.64 CAD
Regular price
Sale price
$539.64 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8552
Shipping Weight: 17.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 17.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Auxiliary Stop Recommended
Yes

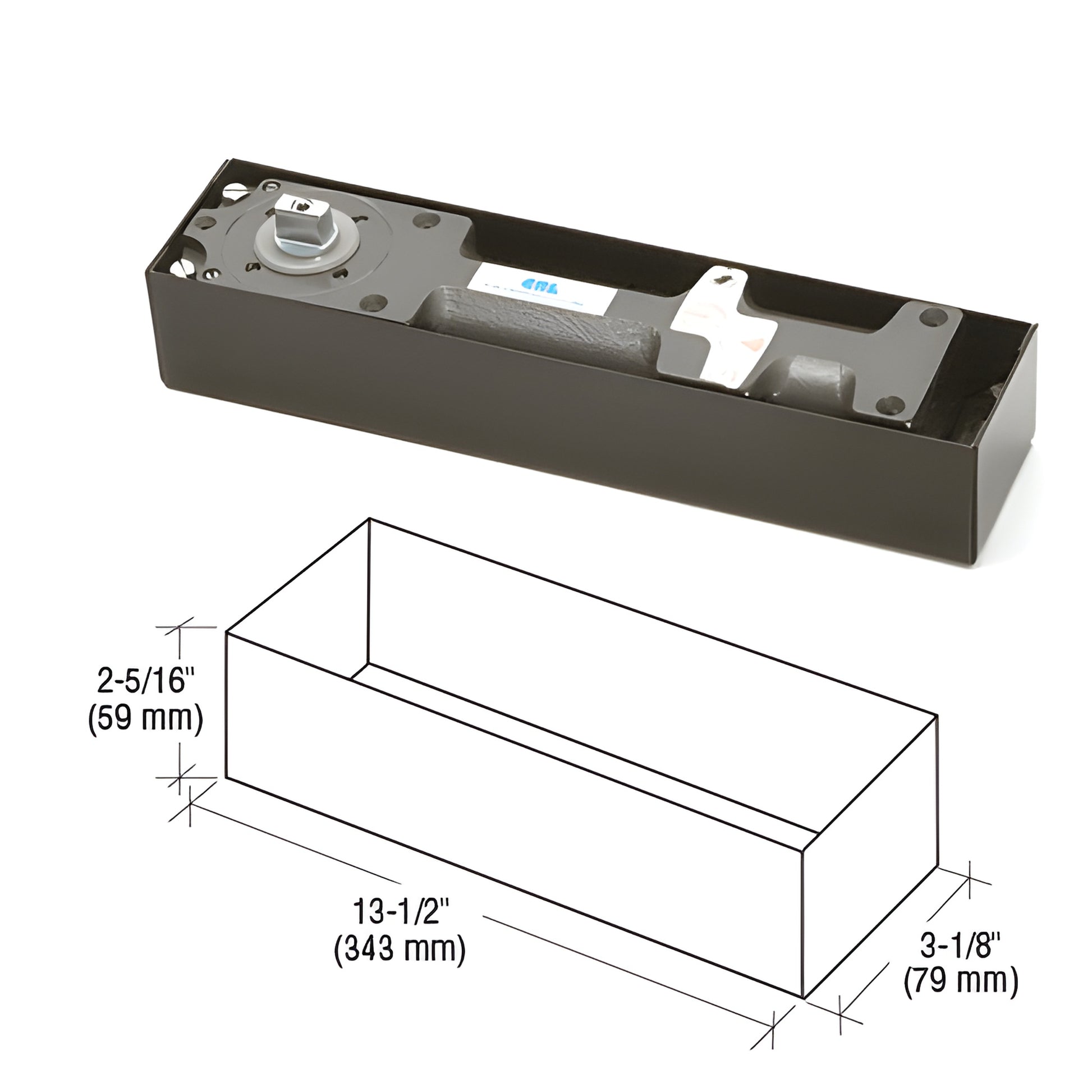

Body Height
2-5/16
Body Length
13-1/2
Body Width
3-1/8
Closer Body With Box
Yes
Closer Type
Floor Closer
Door Height
96
Handing
Double Acting
Includes
CRL85CB, CRL9040S3
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 Inches
Maximum Door Width - Interior
54 Inches
Maximum Weight Center Hung
800 Pounds
No Hold Open
180Β°
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL85CB, CRL9040S3
Similar
CRL8462, J990NHOD
Spindle Included
Yes
Spring Size
5
UL Listed
Yes
Overview
- Perfect floor-mounted door closer designed for CRL's Door Rail System
- Interchangeable spindle heights for different finished floor conditions
- Independent closing and latching speed adjustments for precise control
- 5 Year Limited Warranty
- UL Listed
The CRL8500 Series Floor Mounted Door Closer (SKU: CRL8552) is engineered for heavy-duty commercial and institutional use, supporting doors up to 800 lbs. (363 kg). Available in 90Β° or 105Β° Hold Open or No Hold Open models with three spring sizes to fit most standard installations.
The supplied 1/8" (3 mm) collar-height standard spindle is interchangeable with optional spindles to match various finished floor heights. Compatible accessories include cover plates, pivots, center-hung and offset arms to tailor installations.
NOTE: Use an auxiliary floor or overhead door stop to prevent over-extension and protect the closer and entryway.
SPECIFICATIONS:
Maximum Door Weight: 800 lbs. (363 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.22 m)
