Product Details
- High Density Cast Body with Lock Mechanism
- Gaskets for Use with 3/4" (19 mm) Glass
- Two Architectural Finishes

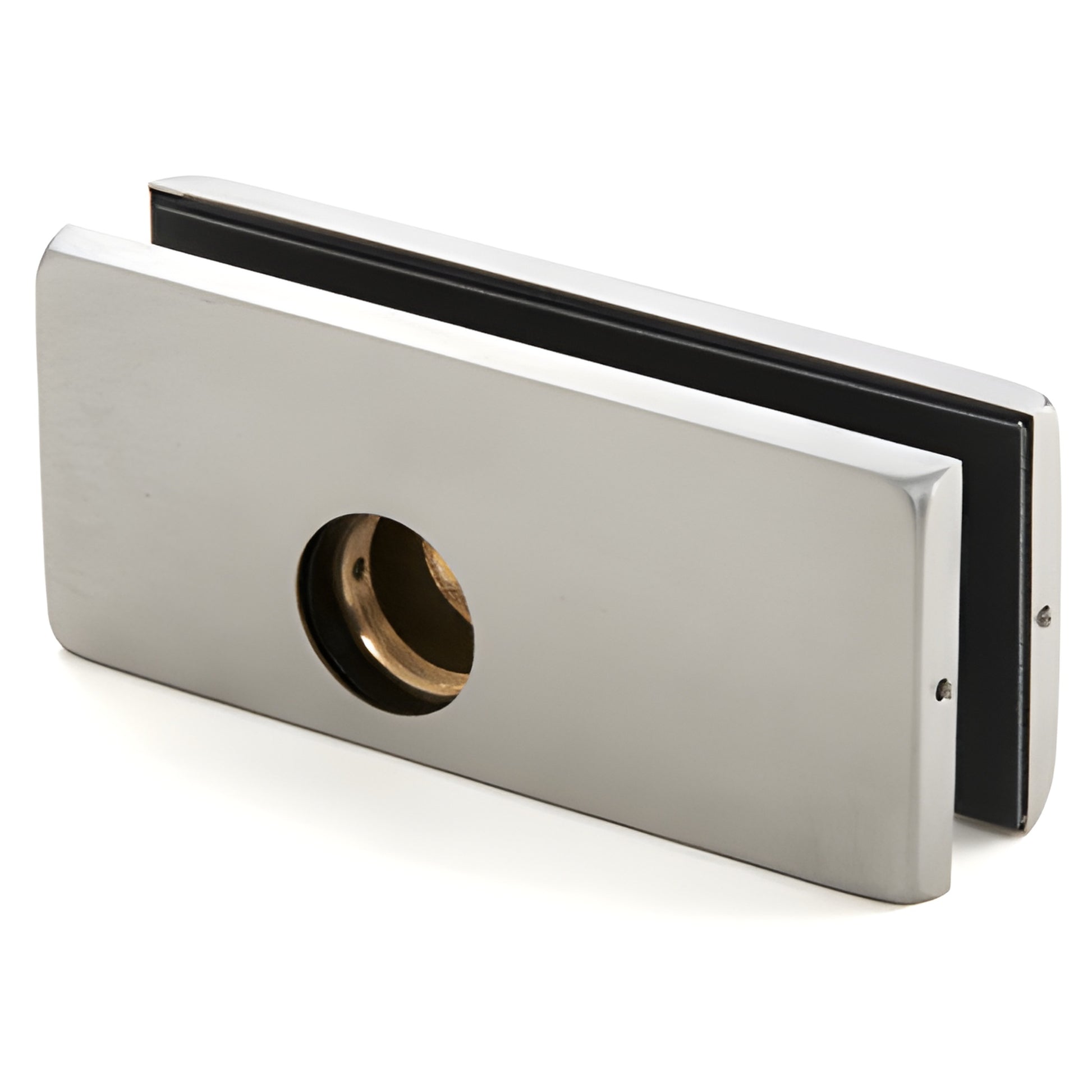

The Dormakaba® American Style Patch Lock is a heavy-duty version of the AMR215 lock for 3/4" (19 mm) thick glass. The taller profile housing provides additional security due to more glass being secured inside the lock housing. This lock can only be installed in top and bottom corner applications. It can be locked with either double keyed cylinders or a keyed cylinder/thumbturn which are ordered separately. Optional keepers available to accommodate most installations.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount: One Corner Notch
COMES WITH: Template and Instructions
DOES NOT INCLUDE: Double Keyed Cylinders; Keyed Cylinder/Thumbturn; Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION: For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders and/or thumbturns and keepers are optional and not included with lock body. Works with DRA50 cylinder and/or DRA60 Thumbturn.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
