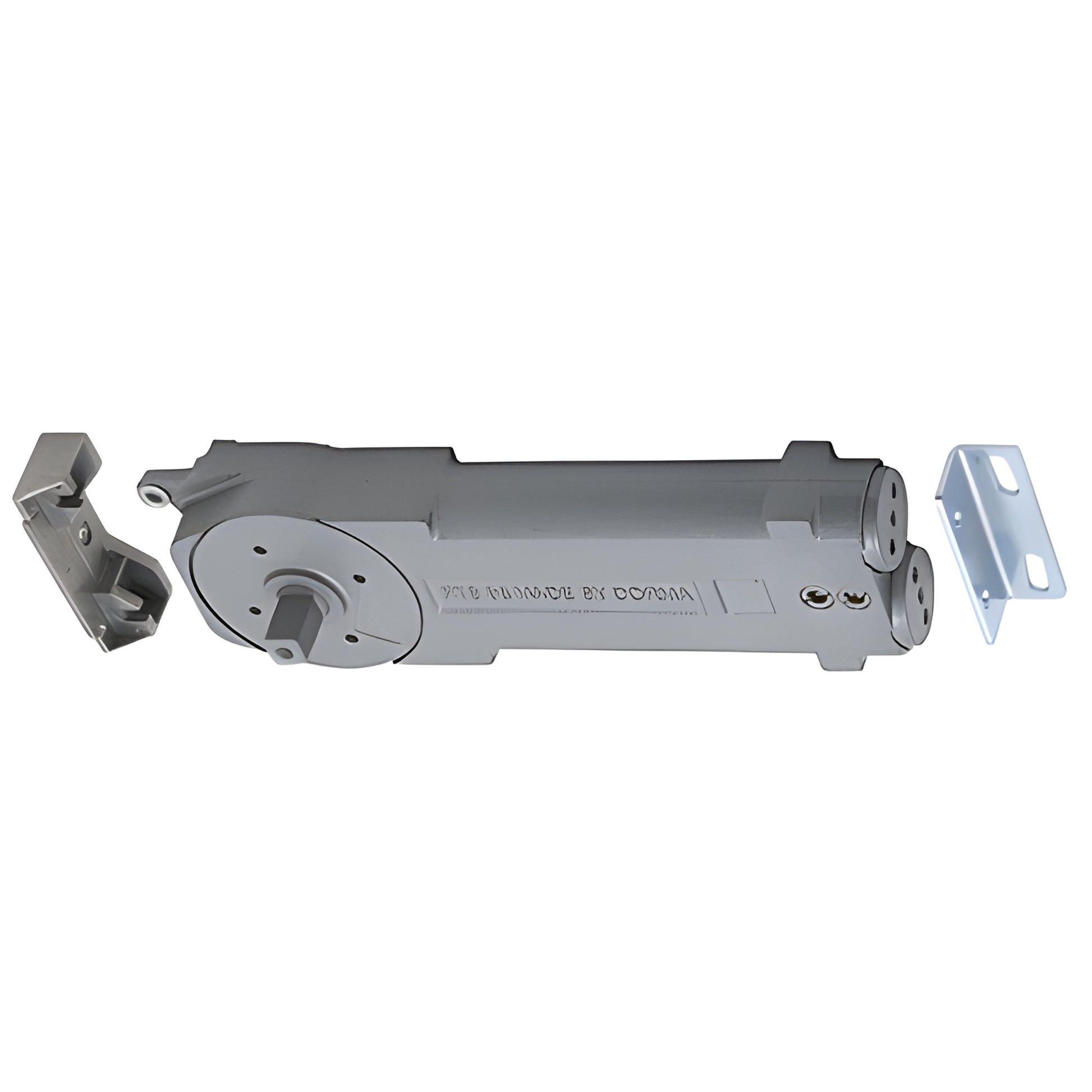

Dormakaba Overhead Concealed Closer 105° Hold-Open, Ext Spindle, Size 3
Dormakaba Overhead Concealed Closer 105° Hold-Open, Ext Spindle, Size 3
Regular price
$533.97 CAD
Regular price
Sale price
$533.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RTS88105XH03
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-1/2
Body Length
11-1/2
Body Width
3-9/16
Closer Type
Overhead Concealed
Door Height
96
Door Opening
105
Handing
Double Acting
Hold Open
Yes
Maximum Door Weight
250
Recommended Door Type
Aluminum,Hollow Metal
Spindle
3/4
UL Listed
Yes
Overview
- Extended spindle for use with patch fittings
- Standard mounting clips included
- Recommended for doors 30" to 42" (762 to 1067 mm) wide x 96" (2438 mm) high
- Maximum door weight: 250 lbs
- Size 3 — Medium duty
The Dormakaba® Overhead Concealed Closer 105 Degree Hold Open (SKU: RTS88105XH03) features a 105° hold-open and dual-action, non-critical valves that allow independent control of closing and latching speeds. Each closer body ships with mounting clips, templates, and installation instructions, making it ideal for retrofit and new-construction applications where an overhead concealed door closer with hold-open is required. Highlights: extended spindle for patch fittings, independent valve adjustments, and included hardware for faster installation.
