Dormakaba® Overhead Concealed Door Closer 105° Hold-Open Size 4
Item# RTS88105H04
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Body Height
1-1/2
Body Length
12-1/2
Body Width
3-1/2
Closer Type
Overhead Concealed
Door Height
96
Door Opening
105
Handing
Double Acting
Hold Open
Yes
Maximum Door Weight
250
Recommended Door Type
Aluminum,Hollow Metal
Spindle
1/2
UL Listed
Yes
- Standard mounting clips included
- Recommended for doors 36" to 48" (914 to 1219 mm) wide × 96" (2438 mm) high
- Maximum door weight: 250 lbs
- Size 4 — Heavy duty overhead concealed closer

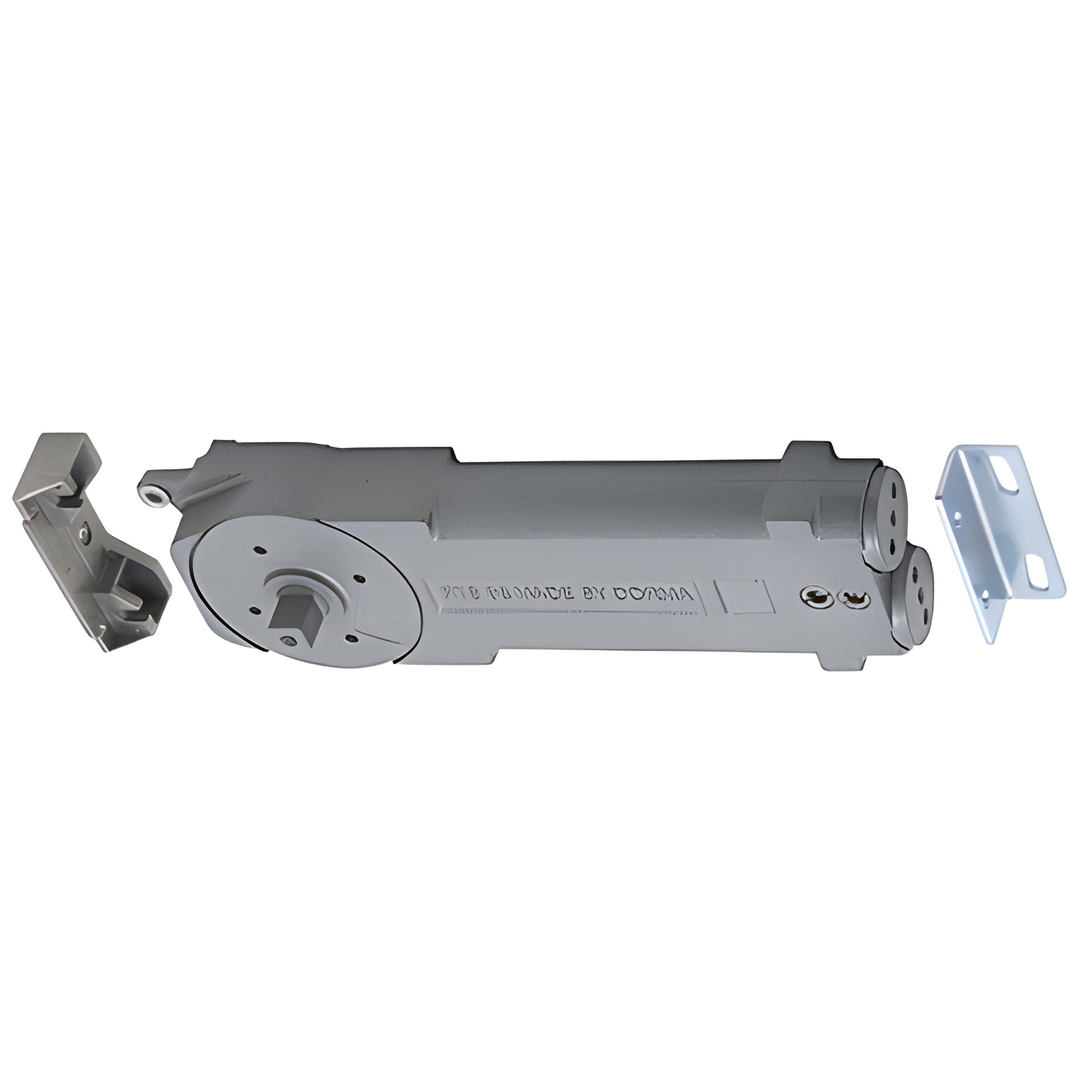

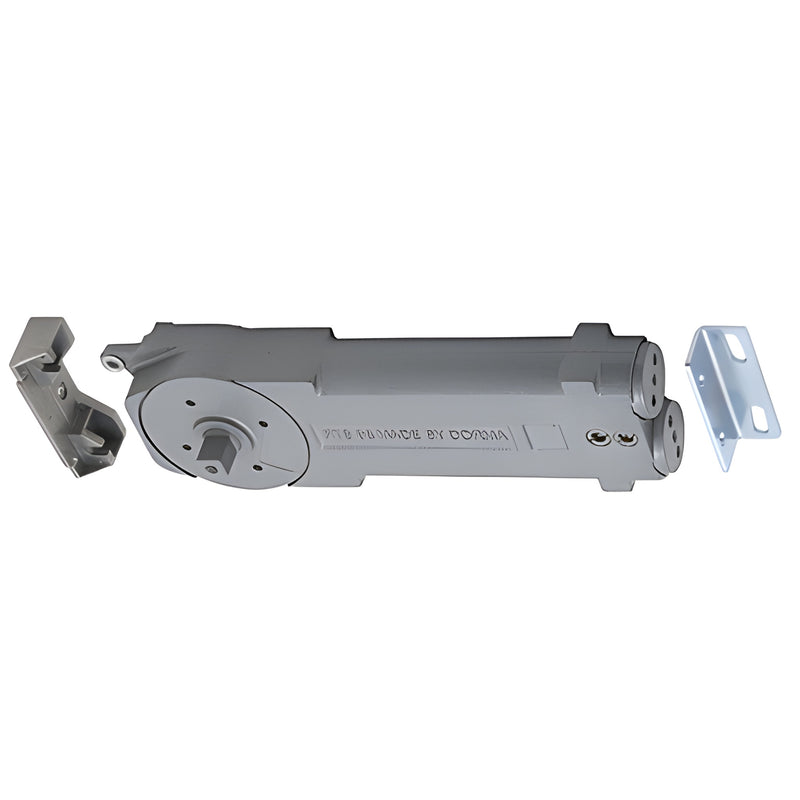

The Dormakaba® Overhead Concealed Closer 105 Degree (SKU: RTS88105H04) is a heavy-duty, overhead concealed door closer designed for commercial interior and exterior doors. Features include dual-action operation and non-critical valves that let you independently adjust closing and latching speeds for precise control. Each closer body ships with mounting clips, installation templates, and instructions for quicker, professional installation.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
Engineered for reliable, concealed operation on 36"–48" doors—order RTS88105H04 today for commercial-grade performance.
