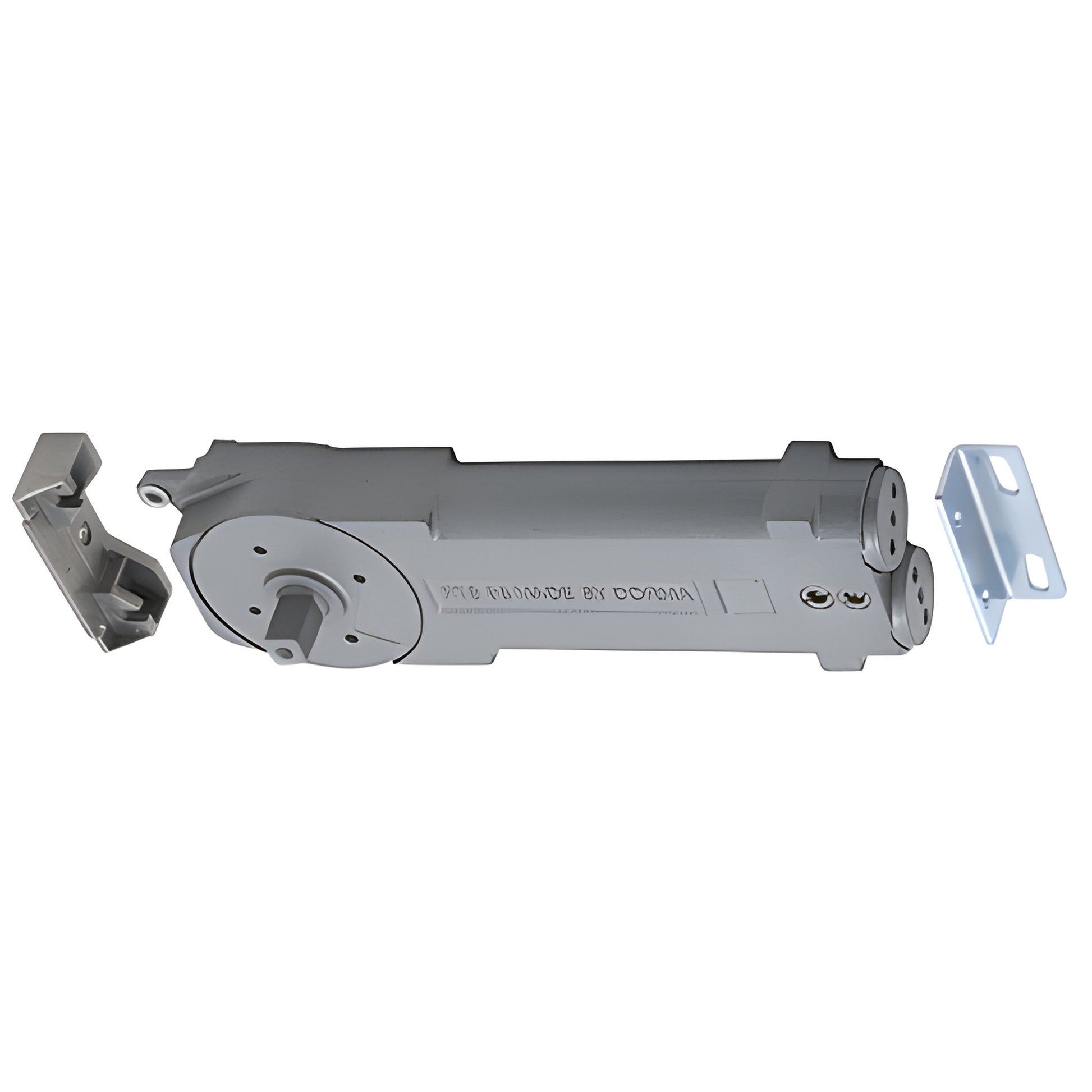

Dormakaba Concealed Overhead Door Closer 90° Hold-Open 3 Ext Spindle
Dormakaba Concealed Overhead Door Closer 90° Hold-Open 3 Ext Spindle
Regular price
$533.97 CAD
Regular price
Sale price
$533.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RTS8890XH03
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-1/2
Body Length
11-1/2
Body Width
3-9/16
Closer Type
Overhead Concealed
Door Height
96
Door Opening
90
Handing
Double Acting
Hold Open
Yes
Maximum Door Weight
250
Recommended Door Type
Aluminum,Hollow Metal
Spindle
3/4
UL Listed
Yes
Overview
- Extended spindle for use with patch fittings
- Standard mounting clips included
- Recommended for doors 30" to 42" (762 to 1067 mm) wide × 96" (2438 mm) high
- Maximum door weight: 250 lbs
- Size 3 — Medium duty
The Dormakaba® Overhead Concealed Closer 90 Degree Hold Open (SKU: RTS8890XH03) features dual-action operation and independent, non-critical valves to separately adjust closing and latching speeds — ideal for overhead concealed door closer installations that require precise control. Each closer body ships with mounting clips, templates, and instructions, and includes an extended spindle for use with patch fittings, making it a reliable choice for medium-duty commercial doors.
Order the Dormakaba RTS8890XH03 overhead concealed closer today for dependable 90° hold-open control and precise independent speed adjustments.
