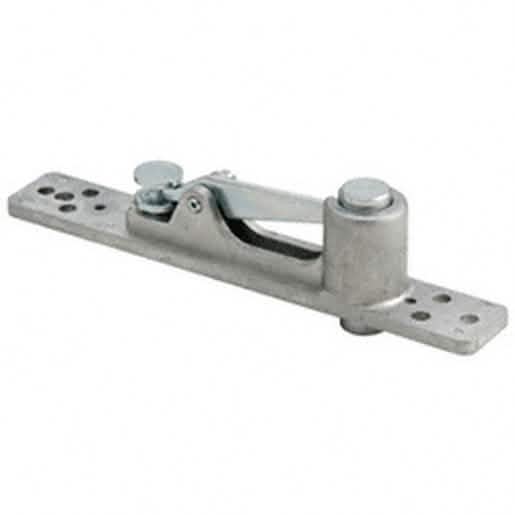

Dormakaba® 15mm Walking Beam Top Pivot
Dormakaba® 15mm Walking Beam Top Pivot
Regular price
$108.10 CAD
Regular price
Sale price
$108.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 8062TP
Shipping Weight: 11.36 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 11.36 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable Spindle Length | 5/8 |
| Bottom Door Rail Depth | 1 |
| Brand | Dormakaba |
| Handing | Non Handed |
| Pin Diameter | 19/32 |
| Pivot | Top Yes |
| Pivot | Type Center Hung |
| Recommended | Door Type Aluminum, Wood, Hollow Metal |
Overview
The Dormakaba® Walking Beam Top Pivot is an essential component for center-hung applications, particularly when used with a concealed floor-mounted door closer or floor-mounted pivot.
This adjustable pivot allows for easy adjustment in door clearance and facilitates door removal by raising or lowering the pivot pin.
Perfectly compatible with CRL Wedge-Lock® Door Rail Systems, it suits any center-hung setup where the top door rails have a 1" depth and can accommodate a 15 mm pivot pin diameter.
With the ability to adjust up to a 3/4" clearance, this pivot fits standard aluminum, hollow metal, or wood headers.
For additional components, refer to Cat.
No.
8062DA for the top door portion and Cat.
No.
8062COVAL or 8062COVDU for the finished cover.
Please note that shipping weights are approximate; for precise weight and shipping cost inquiries, contact CRL Customer Service before placing your order.
This adjustable pivot allows for easy adjustment in door clearance and facilitates door removal by raising or lowering the pivot pin.
Perfectly compatible with CRL Wedge-Lock® Door Rail Systems, it suits any center-hung setup where the top door rails have a 1" depth and can accommodate a 15 mm pivot pin diameter.
With the ability to adjust up to a 3/4" clearance, this pivot fits standard aluminum, hollow metal, or wood headers.
