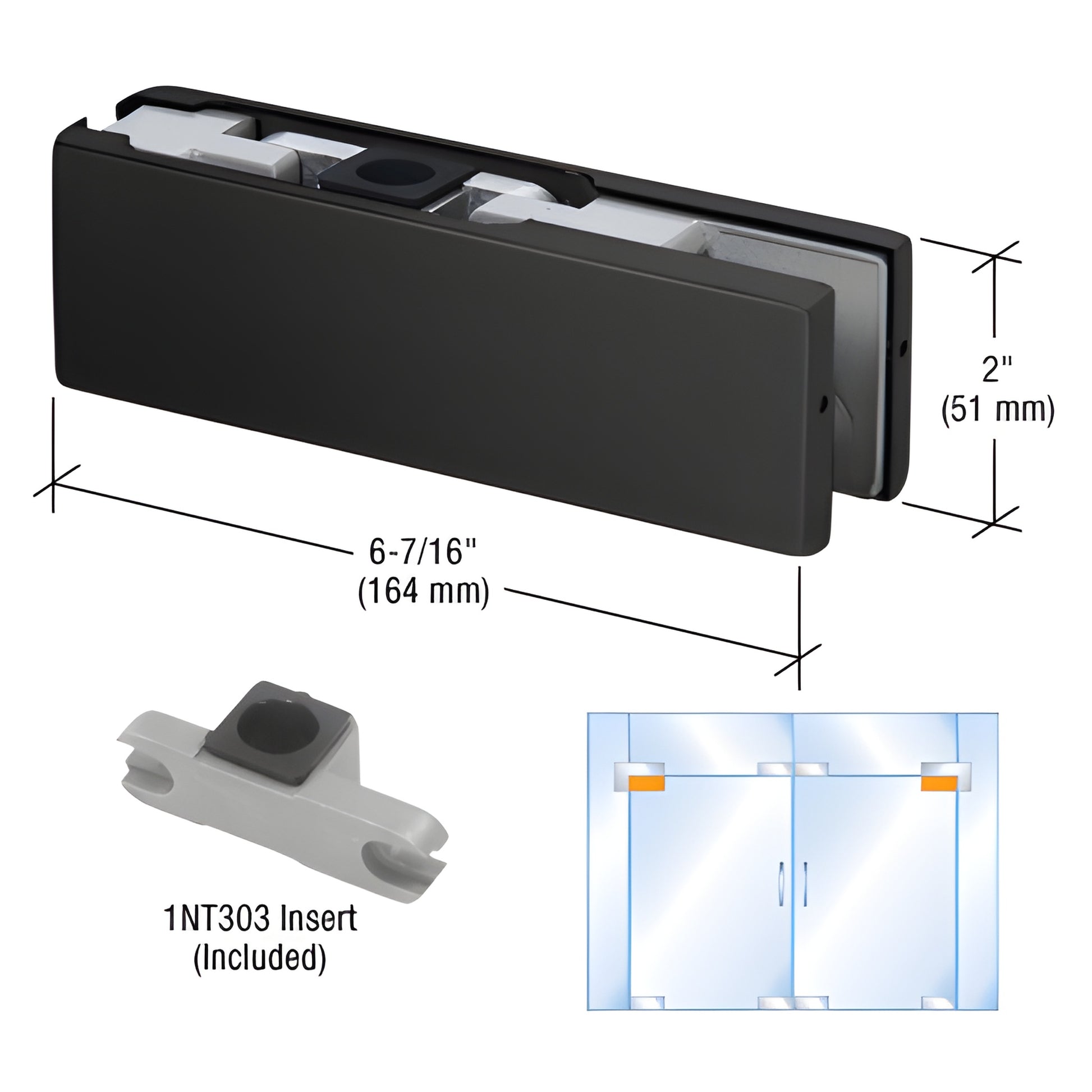

DORMAKABA® Matte Black Top Door Patch Fitting with Pivot Insert For 3/4" Glass
Item # PT2034MBL
$265.93
CAD
Finish (3)
-
Brushed Stainless Steel -
Matte Black -
Polished Stainless Steel
Type (2)
- Bottom
- Top
Overview
| SKU | PT2034MBL |
|---|---|
| Sold As | 1 Each |
| Finish/Color | Matte Black |
| Glazing Thickness | 3/4 in. (19 mm) |
| Insert Type | 1NT303 |
| Pivot Setback | 2-3/4 |
| Series | DORMAKABA® |
| Type | Top |
| With Insert | Yes |
Description
- For 3/4" (19 mm) Glass
- Use Monolithic Tempered Glass
- 304 Alloy Stainless Steel Covers
- 2-3/4" (70 mm) Pivot Setback
DORMAKABA® Top Patch Fittings are used with all three of our gate and door pivots. It fits in the upper corner of the glass panel, and requires a hole and cut-out in the glass. Available in brushed and polished stainless steel finishes.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limitations, full door rails should be used.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter Hole and Corner Notch
COMES WITH:
Template and Instructions
Specifications
Templates
CAD Drawings - pdf
- PDFCommercial Patch Hardware European Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware North American Series System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- PDFCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
CAD Drawings - dwg
- DocumentCommercial Patch Hardware European Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware North American Series System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- DocumentCommercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
